CMC 12MH 300MA 2LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 12MH 300MA 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Filter Type	DC Resistance (DCR) (Max)	Voltage Rating - AC	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency	Approval Agency	Number of Lines	Package / Case	Package / Case	Current Rating (Max) [Max]
TE Connectivity Raychem Cable Protection RN202-0.6-02-4M4	Power Line	380 mOhm	300 V	Through Hole	18.2 mm	0.346 in	0.717 in	8.8 mm	100 °C	-40 °C	13.8 mm	0.543 in	4.4 mH	ENEC UR VDE	2	4 Lead	Vertical	600 mA
TE Connectivity Raychem Cable Protection RN202-0.3-02-12M	Power Line	1.1 Ohm	300 V	Through Hole	18.2 mm	0.346 in	0.717 in	8.8 mm	100 °C	-40 °C	13.8 mm	0.543 in	12 mH	ENEC UR VDE	2	4 Lead	Vertical	300 mA
TE Connectivity Raychem Cable Protection RN202-1.5-02-1M6	Power Line	94 mOhm	300 V	Through Hole	18.2 mm	0.346 in	0.717 in	8.8 mm	100 °C	-40 °C	13.8 mm	0.543 in	1.6 mH	ENEC UR VDE	2	4 Lead	Vertical	1.5 A
TE Connectivity Raychem Cable Protection RN202-2-02-1M1	Power Line	70 mOhm	300 V	Through Hole	18.2 mm	0.346 in	0.717 in	8.8 mm	100 °C	-40 °C	13.8 mm	0.543 in	1.1 mH	ENEC UR VDE	2	4 Lead	Vertical	2 A
TE Connectivity Raychem Cable Protection RN202-1-02-3M0	Power Line	210 mOhm	300 V	Through Hole	18.2 mm	0.346 in	0.717 in	8.8 mm	100 °C	-40 °C	13.8 mm	0.543 in	3 mH	ENEC UR VDE	2	4 Lead	Vertical	1 A
TE Connectivity Raychem Cable Protection RN202-0.3-02-22M	Power Line	1.3 Ohm	300 V	Through Hole	18.2 mm	0.346 in	0.717 in	8.8 mm	100 °C	-40 °C	13.8 mm	0.543 in	22 mH	ENEC UR VDE	2	4 Lead	Vertical	300 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

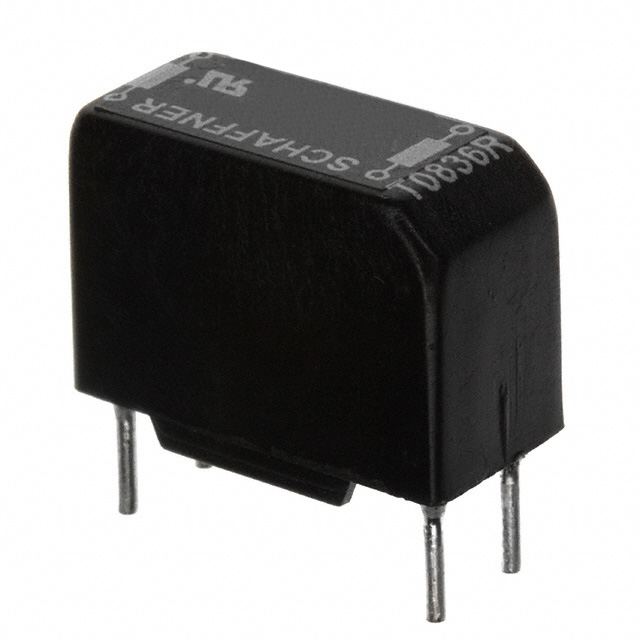

12 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 300mA DCR 1.1Ohm (Typ)
