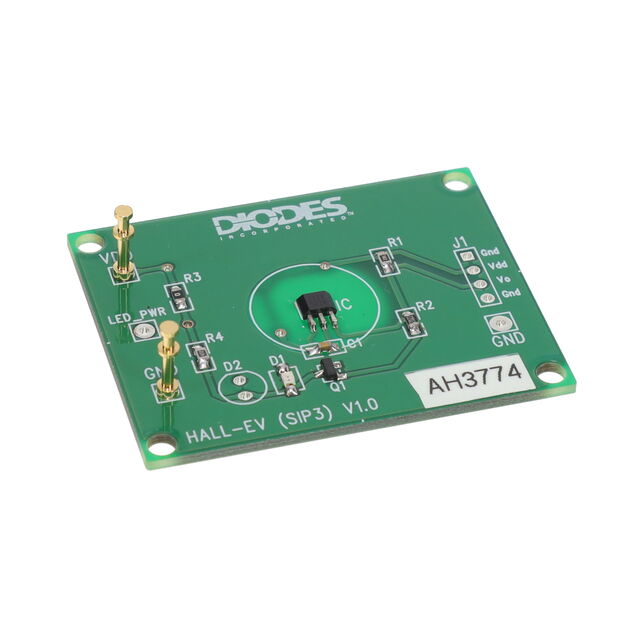

AH3774-P-EVM

Active

Diodes Inc

EVAL BRD HALL SWITCH UA NULL

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BRD HALL SWITCH UA NULL

Technical Specifications

Parameters and characteristics for this part

Part	Sensor Type	Supplied Contents	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Polarization	Features	Package / Case	Mounting Type	Current - Output (Max) [Max]	Test Condition [Min]	Test Condition [Max]	Supplier Device Package	Sensing Range [Max]	Sensing Range [Min]	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Function
Diodes Inc AH3774-P-EVM	Hall Effect	Board(s)	AH3774	28 V	3 V
Diodes Inc AH3774-W-7				28 V	3 V	Open Drain	South Pole	Temperature Compensated	SC-59 SOT-23-3 TO-236-3	Surface Mount	60 mA	-40 °C	125 °C	SC-59-3	6 mT	-6 mT	4 mA	-40 °C	125 °C	Hall Effect	Latch
Diodes Inc AH3774-P-A				28 V	3 V	Open Drain	South Pole	Temperature Compensated	3-SIP Module	Through Hole	60 mA	-40 °C	125 °C	3-SIP	6 mT	-6 mT	4 mA	-40 °C	125 °C	Hall Effect	Latch
Diodes Inc AH3774-P-B				28 V	3 V	Open Drain	South Pole	Temperature Compensated	3-SIP Module	Through Hole	60 mA	-40 °C	125 °C	3-SIP	6 mT	-6 mT	4 mA	-40 °C	125 °C	Hall Effect	Latch
Diodes Inc AH3774-W-EVM	Hall Effect	Board(s)	AH3774	28 V	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.13
