PSC22CB
ActiveCTS Thermal Management Products

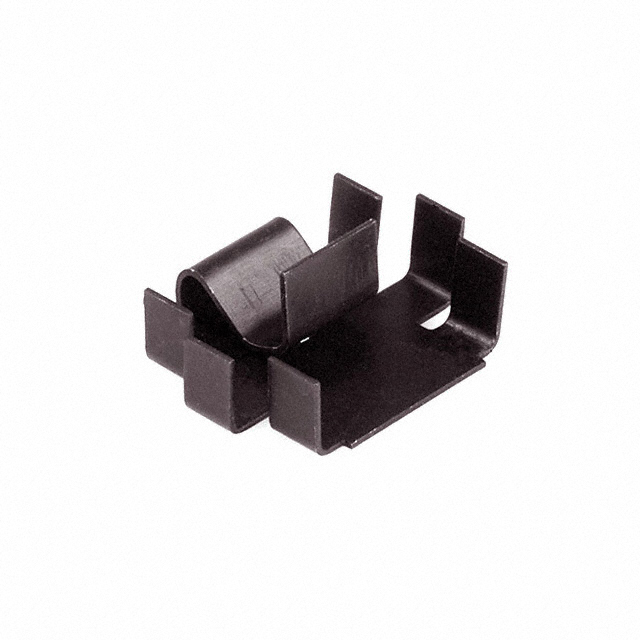

HEATSINK CLIP ON BLACK TO-220
PSC22CB
ActiveCTS Thermal Management Products
HEATSINK CLIP ON BLACK TO-220
Description
General part information
PSC22 Series
Heat Sink TO-220 Aluminum Board Level
Technical Specifications
Parameters and characteristics for this part
| Specification | PSC22CB |
|---|---|
| Attachment Method | Clip |
| Fin Height | 0.31 in |
| Length | 0.81 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Shape | Fins, Rectangular |
| Thermal Resistance | 41.7 °C/W |
| Type | Board Level |
| Width | 1 in |
