233R3C
ActiveMurata Power Solutions Inc.

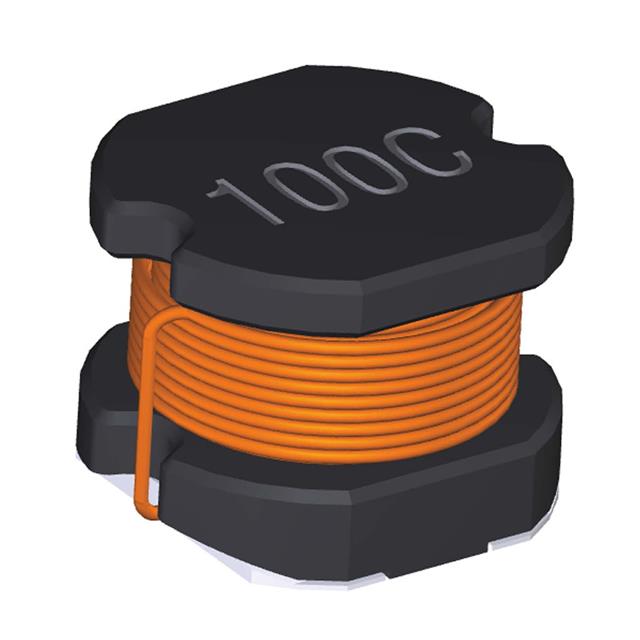

POWER INDUCTOR (SMD), 3.3 ΜH, 1.8 A, UNSHIELDED, 1.8 A, 2300 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
233R3C
ActiveMurata Power Solutions Inc.
POWER INDUCTOR (SMD), 3.3 ΜH, 1.8 A, UNSHIELDED, 1.8 A, 2300 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 233R3C | 23 Series |
|---|---|---|
| Current Rating (Amps) | - | 0.86 - 490 mA |
| DC Resistance (DCR) | - | 1.051 - 138 Ohm |
| DC Resistance (DCR) | - | 210 mOhm |
| Height - Seated (Max) | - | 3.2 mm |
| Height - Seated (Max) | - | 0.126 in |
| Inductance | - | 3.3 - 68 µH |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | Nonstandard |
| Shielding | - | Unshielded |
| Size / Dimension | - | 4.5 mm |
| Size / Dimension | - | 0.177 in |
| Size / Dimension | - | 4 mm |
| Size / Dimension | - | 0.157 in |
| Type | - | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
23 Series
POWER INDUCTOR (SMD), 3.3 ΜH, 1.8 A, UNSHIELDED, 1.8 A, 2300 SERIES
| Part | DC Resistance (DCR) [Max] | Type | Inductance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Shielding | Current Rating (Amps) | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 233R3C | ||||||||||||||||
Murata Power Solutions Inc. 23680C | 1.051 Ohm | Wirewound | 68 µH | 4.5 mm | 0.177 in | 4 mm | 0.157 in | Nonstandard | 85 °C | -40 °C | 3.2 mm | 0.126 in | Surface Mount | Unshielded | 490 mA | |
Murata Power Solutions Inc. 233R3C | 58 mOhm | Wirewound | 3.3 µH | 4.5 mm | 0.177 in | 4 mm | 0.157 in | Nonstandard | 85 °C | -40 °C | 3.2 mm | 0.126 in | Surface Mount | Unshielded | 1.8 A | |
Murata Power Solutions Inc. 234R7C | ||||||||||||||||
Murata Power Solutions Inc. 23100C | 138 mOhm | Wirewound | 10 µH | 4.5 mm | 0.177 in | 4 mm | 0.157 in | Nonstandard | 85 °C | -40 °C | 3.2 mm | 0.126 in | Surface Mount | Unshielded | 1.02 A | |
Murata Power Solutions Inc. 234R7C | 68 mOhm | Wirewound | 4.7 ÁH | 4.5 mm | 0.177 in | 4 mm | 0.157 in | Nonstandard | 85 °C | -40 °C | 3.2 mm | 0.126 in | Surface Mount | Unshielded | 1.48 A | |
Murata Power Solutions Inc. 23680C | ||||||||||||||||
Murata Power Solutions Inc. 23150C | ||||||||||||||||
Murata Power Solutions Inc. 23100C | ||||||||||||||||
Murata Power Solutions Inc. 236R8C |
Description
General part information
23 Series
3.3 µH Unshielded Wirewound Inductor 1.8 A 58mOhm Max Nonstandard
