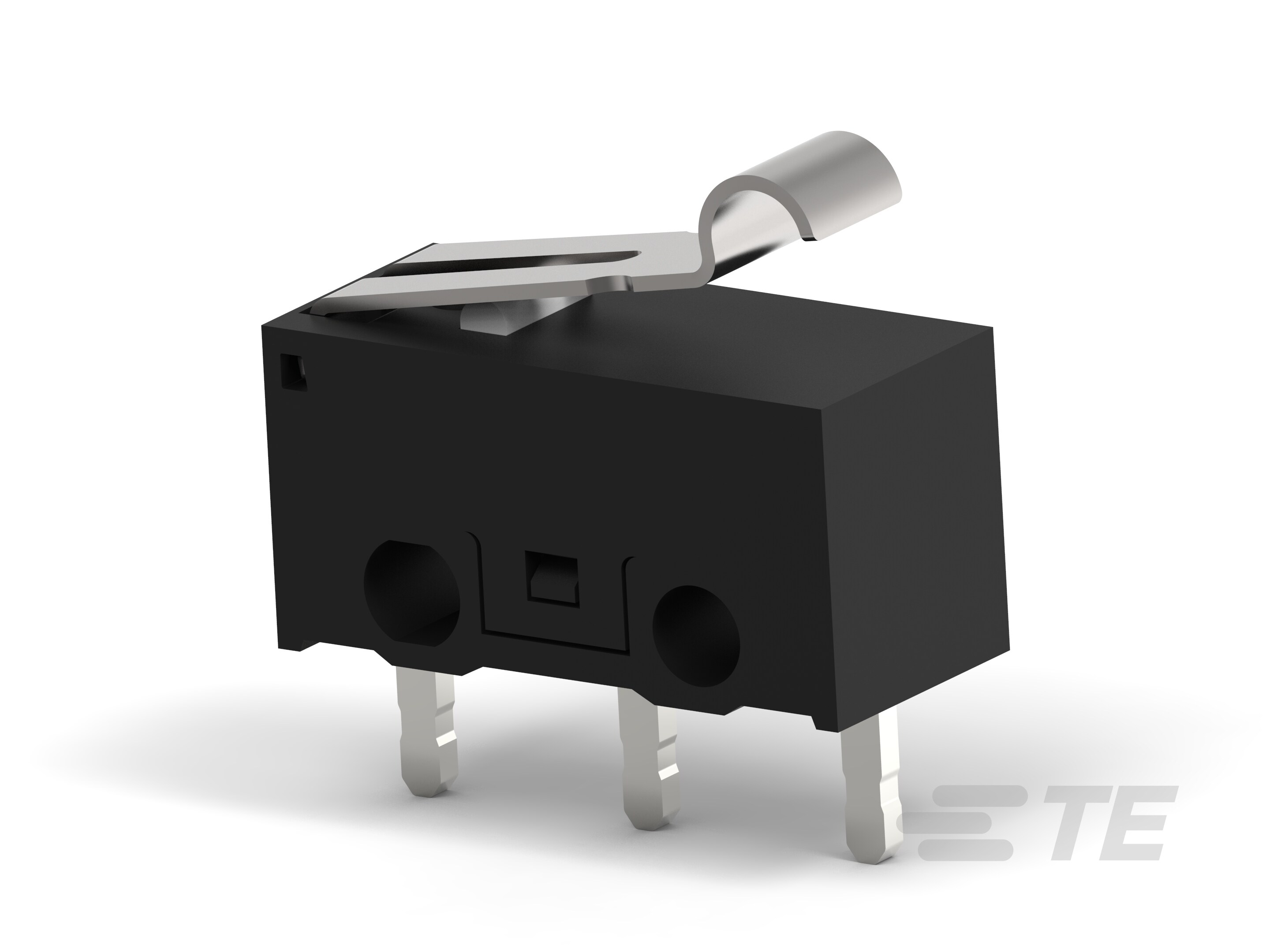

Specification	SAJ101XRHLN74SDTPTQ

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating	100 mA
Differential Travel (Linear)	0.018 in
Electrical Life (Cycles)	30000 Cycles
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Through Hole
Operating Force	40 gf
Operating Position (Length)	0.4 in
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-25 °C
Overtravel (Linear)	0.02 in
Pretravel (Length)	0.15 in
Release Force	2 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - DC	30 V

ALCOSWITCH SAJ Series Series

Part	Mounting Type	Voltage Rating - DC	Pretravel (Length)	Operating Force	Mechanical Life (Cycles)	Circuit	Operating Position (Length)	Switch Function	Overtravel (Linear)	Termination Style	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Electrical Life (Cycles)	Differential Travel (Linear)	Release Force	Actuator Type	Voltage Rating - AC	Quick Connect Size (0.187")
TE Connectivity AMP Connectors SAJ405XHL0N30SNCSLQ	Right Angle Through Hole	30 V	0.071 in	50 gf	100000 Cycles	SPST-NC	0.264 in	On-Mom	0.011 in	PC Pin	0.5 A	-40 °C	85 °C	50000	0.028 in	3 gf	Lever Straight
TE Connectivity AMP Connectors SAJ101XBL0N74SDTPTQ	Through Hole	30 V	0.087 in	26 gf	1000000 Cycles	SPDT	0.378 in	On-Mom	0.022 in	PC Pin	100 mA	-25 °C	75 °C	30000 Cycles	0.02 in	2 gf	Lever Straight
TE Connectivity AMP Connectors SAJ25YXUL1147SDTSEQ	Chassis Mount	30 V	0.138 in	50 gf	10000000 Cycles	SPDT	0.492 in	On-Mom	0.047 in	Solder Lug	3 A 5 A	-40 °C	75 °C	10000 Cycles	0.031 in	60 gf	Lever Straight	125 V
TE Connectivity AMP Connectors SAJ101XBL0N74SNOPTQ	Through Hole	30 V	0.087 in	26 gf	1000000 Cycles	SPST-NO	0.378 in	Off-Mom	0.022 in	PC Pin	100 mA	-25 °C	75 °C	30000 Cycles	0.02 in	2 gf	Lever Straight
TE Connectivity AMP Connectors SAJ405XHL0N30SNOSRQ	Right Angle Through Hole	30 V	0.071 in	50 gf	100000 Cycles	SPST-NO	0.264 in	Off-Mom	0.011 in	PC Pin	0.5 A	-40 °C	85 °C	50000	0.028 in	3 gf	Lever Straight
TE Connectivity AMP Connectors SAJ35XXHL0N49SDTSEQ
TE Connectivity AMP Connectors SAJ35XXPP0N49SDTFAQ	Chassis Mount		0.047 in	50 gf	5000000 Cycles	SPDT	0.579 in	On-Mom	0.039 in	Quick Connect	5 A	-40 °C	85 °C	10000 Cycles	0.016 in	5 gf	Round (Pin Plunger)	125 V	0.187 in
TE Connectivity AMP Connectors SAJ405XHL0N30SNOLLQ	Right Angle Through Hole	30 V	0.071 in	50 gf	100000 Cycles	SPST-NO	0.264 in	Off-Mom	0.011 in	PC Pin	0.5 A	-40 °C	85 °C	50000	0.028 in	3 gf	Lever Straight
TE Connectivity AMP Connectors SAJ13XXBL0N88SNCPTQ	Through Hole		0.087 in	26 gf	500000 Cycles	SPST-NC	0.378 in	On-Mom	0.022 in	PC Pin	3 A	-25 °C	75 °C	6000 Cycles	0.02 in	2 gf	Lever Straight	125 V
TE Connectivity AMP Connectors SAJ13XXRHLN88SDTPTQ	Through Hole		0.15 in	40 gf	500000 Cycles	SPDT	0.4 in	On-Mom	0.02 in	PC Pin	3 A	-25 °C	75 °C	6000 Cycles	0.018 in	2 gf	Lever Simulated Roller	125 V
