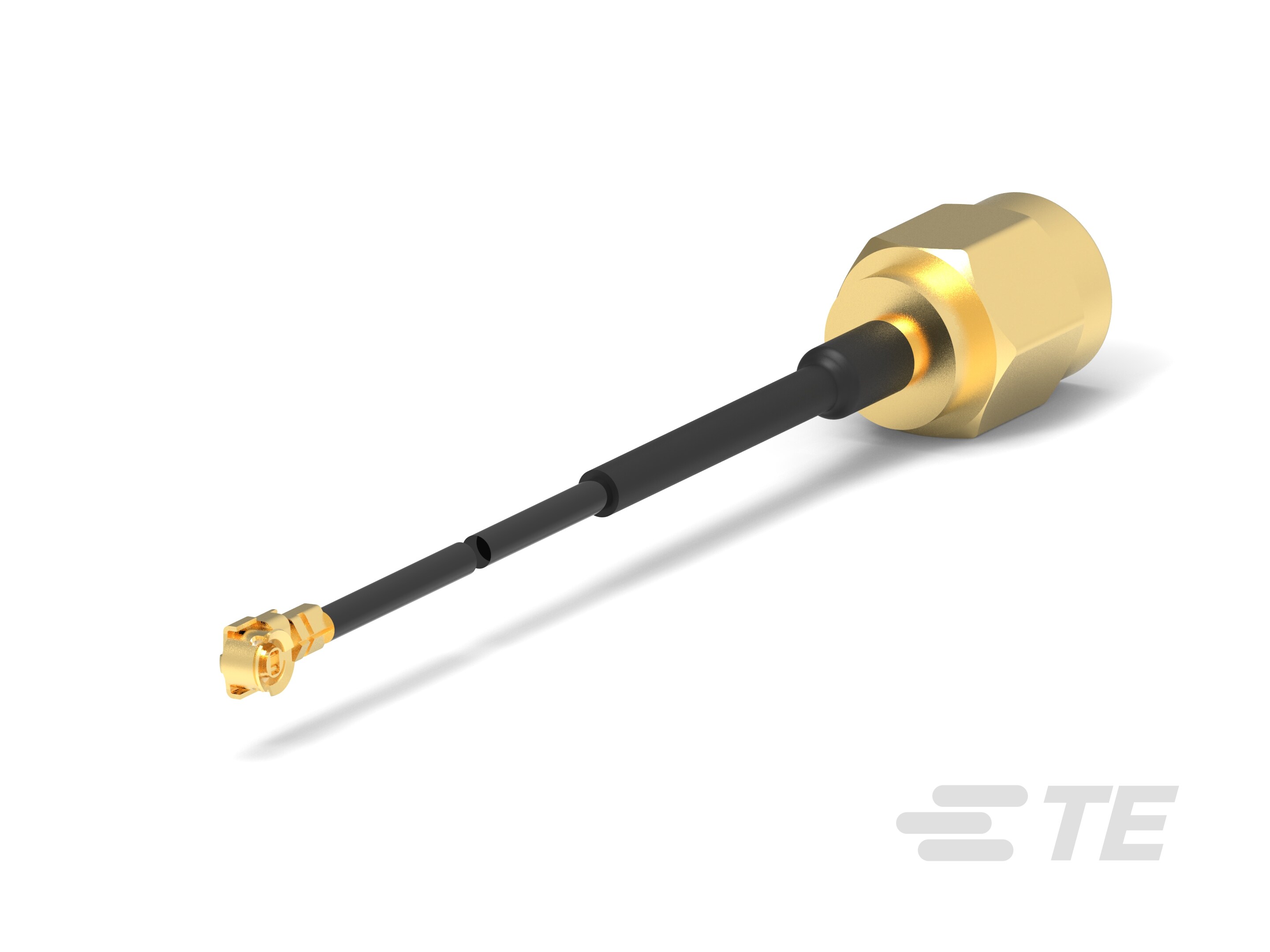

Specification	2032439-1

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Right Angle, U.FL (UMCC) Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Outer Diameter	1.37 mm
Cable Type	Coaxial Cable, OD Coaxial Cable
Cable Type Size	1.37
Color	Black
Features	Shielded
Frequency - Max	6000 MHz
Length	7.874 in
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Overall Impedance	50 Ohms
Style	U.FL (UMCC), SMA

UMCC Series

Part	Length	1st Connector Mounting Type	Overall Impedance	Cable Type Size	Cable Type	Cable Outer Diameter	1st Contact Gender	1st Connector	2nd Contact Gender	Color	2nd Connector	Frequency - Max	Style	2nd Connector Mounting Type	1st Connector - Type	1st Connector - Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Features	1st Connector Mounting Feature	Cable Impedance

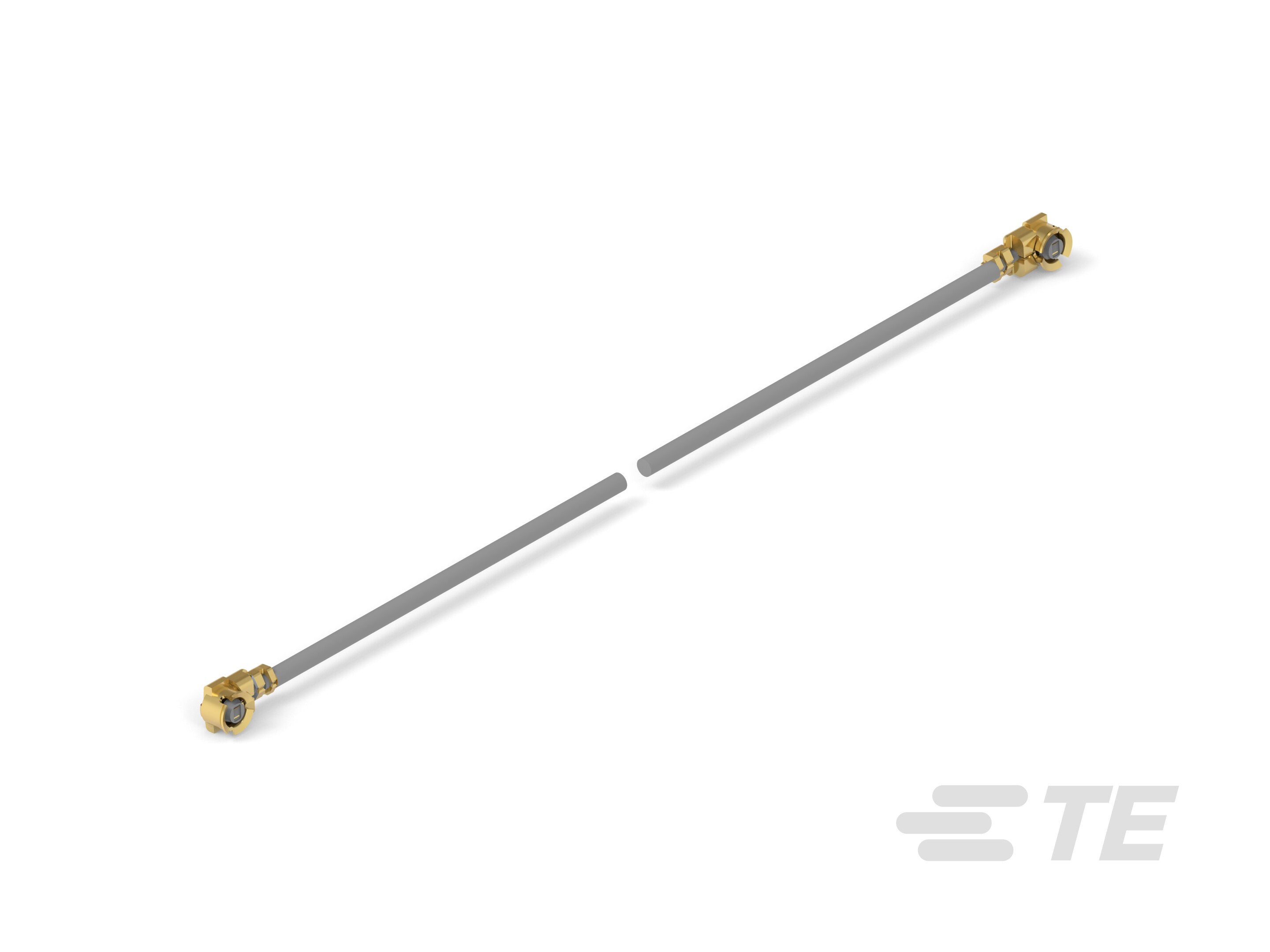

TE Connectivity AMP Connectors 2118651-6	3.543 in	Free Hanging (In-Line)	50 Ohms	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	Female	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Female	Gray	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	6000 MHz	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC)	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2015357-3	3.937 in	Free Hanging (In-Line)	50 Ohms	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Female	Right Angle U.FL (UMCC) Plug	Female	Black	Right Angle U.FL (UMCC) Plug	6000 MHz	U.FL (UMCC)	Free Hanging (In-Line)	U.FL (UMCC) Plug	Right Angle	90 °C	-40 °C	Shielded
TE Connectivity AMP Connectors 2032440-1	7.874 in	Panel Mount	50 Ohms	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Female	SMA Jack	Female	Gray	Right Angle U.FL (UMCC) Plug	6000 MHz	SMA U.FL (UMCC)	Free Hanging (In-Line)			90 °C	-40 °C	Shielded	Bulkhead Front Side Nut
TE Connectivity AMP Connectors 2016677-4	3.15 in	Free Hanging (In-Line)	50 Ohms	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	Right Angle U.FL (UMCC Gen 2.0) Plug	Female	Black	Right Angle U.FL (UMCC Gen 4.0) Plug	6000 MHz	U.FL (UMCC)	Free Hanging (In-Line)			85 °C	-40 °C
TE Connectivity AMP Connectors 2032439-1	7.874 in	Free Hanging (In-Line)	50 Ohms	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Male	SMA Plug	Female	Black	Right Angle U.FL (UMCC) Plug	6000 MHz	SMA U.FL (UMCC)	Free Hanging (In-Line)			90 °C	-40 °C	Shielded
TE Connectivity AMP Connectors 2195633-6	7.874 in	Free Hanging (In-Line)	50 Ohms	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Female	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Female	Black	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	6000 MHz	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC)	Free Hanging (In-Line)							50 Ohms
