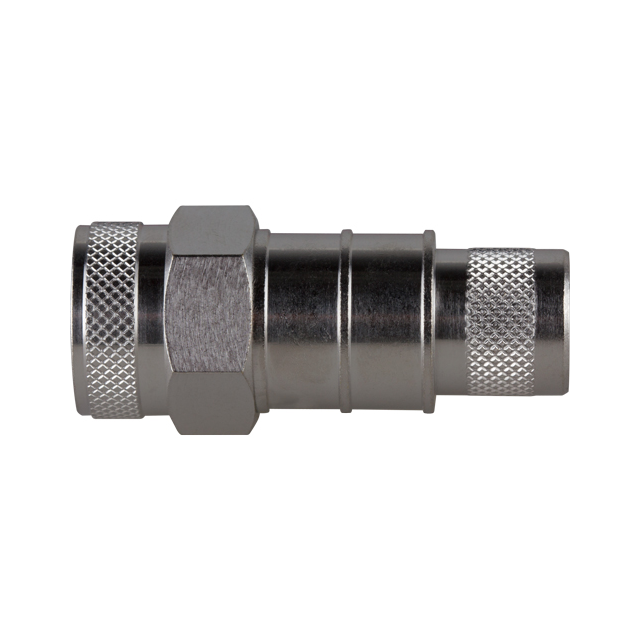

RFN-1006-9L2

Active

RF Industries

N MALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

N MALE CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFN-1006-9L2

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-600
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

N MALE CRIMP; 50 OHMS

Part	Center Contact Material	Shield Termination	Housing Color	Center Contact Plating	Body Material	Impedance	Cable Group	Connector Style	Contact Termination	Connector Type	Number of Ports	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Finish	Voltage Rating	Frequency - Max [Max]
RF Industries RFN-1006-9L2	Brass	Crimp	Silver	Gold	Brass	50 Ohms	LMR-600	N Type	Crimp	Male Pin, Plug	1	Free Hanging (In-Line)	-65 ░C	85 °C	Polytetrafluoroethylene (PTFE)	White Bronze	1000 VDC	11 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
