325200-09-0
ActiveCurtis Industries

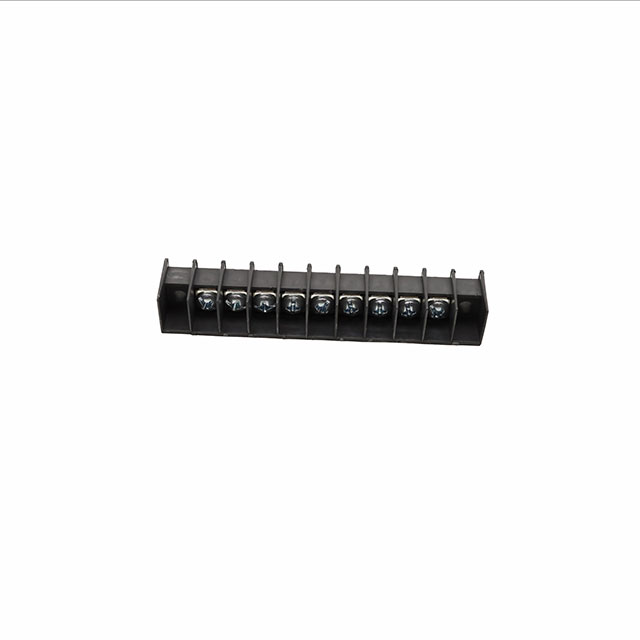

CONN BARRIER STRIP 9CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325200-09-0
ActiveCurtis Industries
CONN BARRIER STRIP 9CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325200-09-0 | 325200 Series |
|---|---|---|
| Barrier Type | - | 3 Wall (Tri) |
| Bottom Termination | - | Closed |
| Current Rating (Amps) | - | 15 A |
| Features | - | Flange |
| Material - Insulation | - | Polypropylene (PP) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | - | Panel, Chassis |
| null | - | |
| Number of Circuits | - | 3 - 26 |
| Number of Circuits | - | 8 |
| Number of Rows | - | 1 |
| Number of Wire Entries | - | 3 - 26 |
| Operating Temperature | - | 105 C |
| Pitch | - | 8.26 mm |
| Pitch | - | 0.325 in |
| Terminal Block Type | - | Barrier Block |
| Terminal Screw Material | - | Steel |
| Top Termination | - | Screws |
| Voltage Rating | - | 300 VDC |
| Wire Gauge | - | 14 AWG |
| Wire Gauge | - | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
325200 Series
CONN BARRIER STRIP 4CIRC 0.325"
| Part | Operating Temperature | Voltage Rating | Terminal Screw Material | Number of Rows | Wire Gauge [Min] | Wire Gauge [Max] | Number of Wire Entries | Top Termination | Terminal Block Type | Mounting Type | Bottom Termination | Current Rating (Amps) | Number of Circuits | Material Flammability Rating | Barrier Type | Features | Pitch [x] | Pitch [x] | Material - Insulation | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325200-04-0 | 105 C | 300 VDC | Steel | 1 | 14 AWG | 22 AWG | 4 | Screws | Barrier Block | Chassis, Panel | Closed | 15 A | 4 | UL94 V-0 | 3 Wall (Tri) | Flange | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325200-13-0 | 105 C | 300 VDC | Steel | 1 | 14 AWG | 22 AWG | 13 | Screws | Barrier Block | Chassis, Panel | Closed | 15 A | 13 | UL94 V-0 | 3 Wall (Tri) | Flange | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325200-06-0 | ||||||||||||||||||||
Curtis Industries 325200-16-0 | 105 C | 300 VDC | Steel | 1 | 14 AWG | 22 AWG | 16 | Screws | Barrier Block | Chassis, Panel | Closed | 15 A | 16 | UL94 V-0 | 3 Wall (Tri) | Flange | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325200-26-0 | 105 C | 300 VDC | Steel | 1 | 14 AWG | 22 AWG | 26 | Screws | Barrier Block | Chassis, Panel | Closed | 15 A | 26 | UL94 V-0 | 3 Wall (Tri) | Flange | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325200-09-0 | 105 C | 300 VDC | Steel | 1 | 14 AWG | 22 AWG | 9 | Screws | Barrier Block | Chassis, Panel | Closed | 15 A | UL94 V-0 | 3 Wall (Tri) | Flange | 8.26 mm | 0.325 in | Polypropylene (PP) | ||
Curtis Industries 325200-09-0 | ||||||||||||||||||||
Curtis Industries 325200-21-0 | 105 C | 300 VDC | Steel | 1 | 14 AWG | 22 AWG | 21 | Screws | Barrier Block | Chassis, Panel | Closed | 15 A | 21 | UL94 V-0 | 3 Wall (Tri) | Flange | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325200-05-0 | 105 C | 300 VDC | Steel | 1 | 14 AWG | 22 AWG | 5 | Screws | Barrier Block | Chassis, Panel | Closed | 15 A | 5 | UL94 V-0 | 3 Wall (Tri) | Flange | 8.26 mm | 0.325 in | Polypropylene (PP) | |
Curtis Industries 325200-03-0 | 105 C | 300 VDC | Steel | 1 | 14 AWG | 22 AWG | 3 | Screws | Barrier Block | Chassis, Panel | Closed | 15 A | 3 | UL94 V-0 | 3 Wall (Tri) | Flange | 8.26 mm | 0.325 in | Polypropylene (PP) |
Description
General part information
325200 Series
9 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
