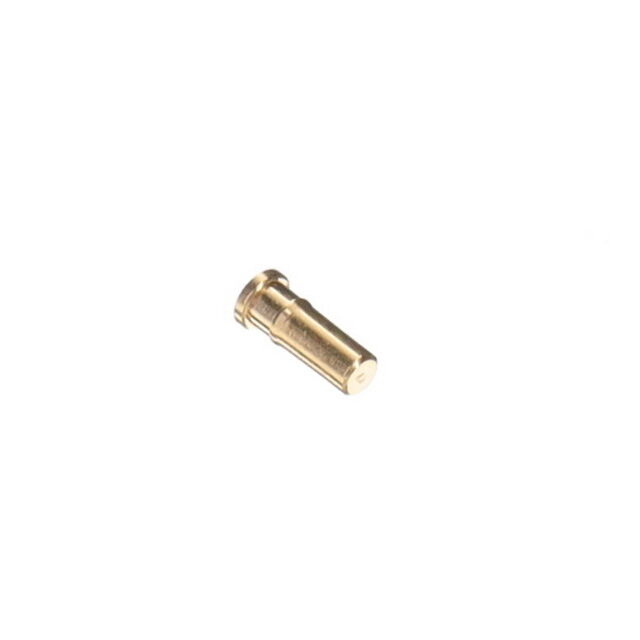

1936-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
1936-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1936-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.035 in |
| Flange Diameter [diameter] | 0.89 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.067 in |
| Length - Above Flange [x] | 1.7 mm |
| Length - Below Flange [x] | 0.03 in |
| Length - Below Flange [x] | 0.76 mm |
| Length - Overall | 2.46 mm |
| Length - Overall | 0.097 in |
| Mounting Hole Diameter [diameter] | 0.86 mm |
| Mounting Hole Diameter [diameter] | 0.034 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.026 in |
| Pin Size - Above Flange [diameter] | 0.67 mm |
| Pin Size - Below Flange [diameter] | 0.042 in |
| Pin Size - Below Flange [diameter] | 1.07 mm |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.40 | |||
| 3000 | $ 0.37 | |||
Description
General part information
1936-0 Series
PC Pin Terminal Connector Through Hole Gold 0.026" (0.67mm) Dia
Documents
Technical documentation and resources
No documents available
