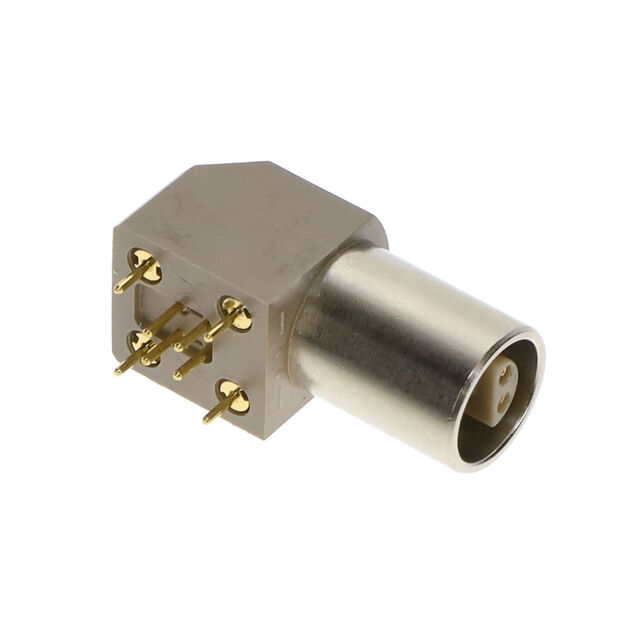

EPL.1S.304.HLN

Active

LEMO

CONN CIRC RCPT 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN CIRC RCPT 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPL.1S.304.HLN	EPL.1S Series

Body Finish	-	Nickel
Body Material	-	Brass
Cable Group	-	400, 223, 187A, 179B, RG-58C, 302, 59B
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Connector Style	-	Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Female Socket
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder
Current Rating (Amps)	6 A	6 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
Housing Color	-	Silver
Impedance	-	75 Ohms
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	4	2 - 6
Operating Temperature [Max]	250 °C	220 - 250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	304	302 - 306
Shield Termination	-	Solder
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN CIRC RCPT 2POS GOLD SOLDER

Part	Shielding	Shell Finish	Number of Positions	Insert Material	Termination	Contact Finish - Mating	Shell Size - Insert	Mounting Type	Features	Shell Material	Primary Material	Fastening Type	Material Flammability Rating	Contact Material	Ingress Protection	Orientation	Current Rating (Amps)	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Connector Style	Housing Color	Dielectric Material	Center Contact Material	Contact Termination	Mating Cycles	Body Material	Cable Group	Center Contact Plating	Shield Termination	Body Finish
LEMO EPL.1S.302.HLN	Shielded	Nickel	2	Polyetheretherketone (PEEK)	Solder	Gold	302	Through Hole, Right Angle	Ground	Brass and Polyphenylene Sulfide (PPS)	Metal	Push-Pull	UL94 V-0	Brass, Bronze	IP50	Keyed	6 A	Female Sockets, Male Pins, Receptacle	220 °C	-55 °C
LEMO EPL.1S.275.NTN								Through Hole, Right Angle				Push-Pull			IP50			Female Socket, Receptacle	250 °C	-55 °C	75 Ohms	Coaxial	Silver	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Solder	1000	Brass	179B, 187A, 223, 302, 400, 59B, RG-58C	Gold	Solder	Nickel
LEMO EPL.1S.304.HLN	Shielded	Nickel	4	Polyetheretherketone (PEEK)	Solder	Gold	304	Through Hole, Right Angle	Ground	Brass and Polyphenylene Sulfide (PPS)	Metal	Push-Pull	UL94 V-0	Brass, Bronze	IP50	Keyed	6 A	Female Sockets, Male Pins, Receptacle	250 °C	-55 °C
LEMO EPL.1S.306.HLN	Shielded	Nickel	6	Polyetheretherketone (PEEK)	Solder	Gold	306	Through Hole, Right Angle	Ground	Brass and Polyphenylene Sulfide (PPS)	Metal	Push-Pull	UL94 V-0	Brass, Bronze	IP50	Keyed	6 A	Female Sockets, Male Pins, Receptacle	250 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.79

General part information

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder
