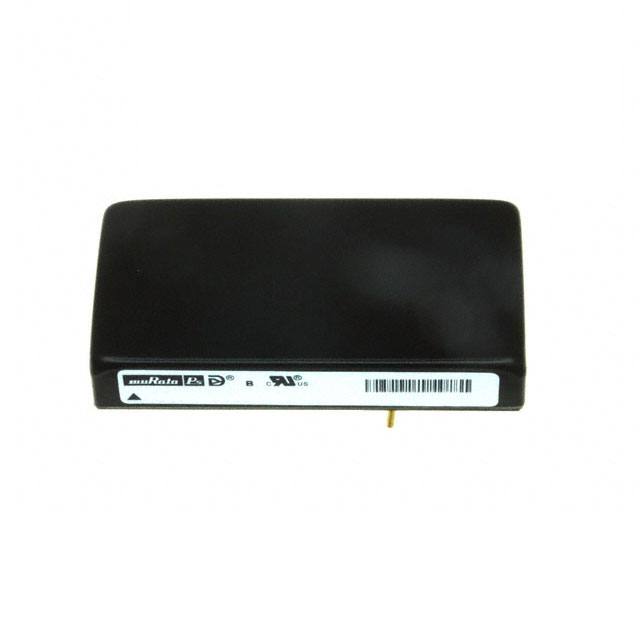

UWR-5/3000-D24A-C
ActiveISOLATED SURFACE MOUNT DC/DC CONVERTER, DIP, 2:1, 15 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
UWR-5/3000-D24A-C
ActiveISOLATED SURFACE MOUNT DC/DC CONVERTER, DIP, 2:1, 15 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UWR-5/3000-D24A-C | UWR-5 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 1.6 - 8 A |
| Efficiency | - | 76 - 91.5 % |
| Mounting Type | - | Through Hole |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 65 - 85 °C |
| Package / Case | - | 5-DIP Module, 6-DIP Module, 4 Leads, 8-DIP Module, 7 Leads, 6-DIP Module, 8-DIP Module, 6 Leads |
| Package / Case | - | 5 Leads |
| Power (Watts) | - | 8 - 40 W |
| Size / Dimension | - | 25.4 - 50.8 mm |
| Size / Dimension | - | 50.8 mm |
| Size / Dimension | - | 0.38 - 0.48 in |
| Size / Dimension | - | 9.7 - 12.1 mm |
| Size / Dimension | - | 2 - 25.4 mm |
| Size / Dimension | - | 2 in |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 7.25 - 75 V |
| Voltage - Input (Min) | - | 4.7 - 36 V |
| Voltage - Isolation | - | 1.5 kV |
| Voltage - Output 1 | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
UWR-5 Series
ISOLATED SURFACE MOUNT DC/DC CONVERTER, DIP, 2:1, 15 W, 1 OUTPUT, 5 V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Mounting Type | Power (Watts) | Voltage - Isolation | Voltage - Input (Min) [Min] | Number of Outputs | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Package / Case | Current - Output (Max) [Max] | Applications | Efficiency | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UWR-5/3000-D24A-C | |||||||||||||||||||||
Murata Power Solutions Inc. UWR-5/2000-D12A-C | -40 °C | 70 °C | 5 V | Through Hole | 10 W | 1.5 kV | 9 V | 1 | Isolated Module | 25.4 mm | 50.8 mm | 0.38 in | 9.7 mm | 25.4 mm | 2 in | 18 V | 5-DIP Module | 2 A | ITE (Commercial) | 81 % | |
Murata Power Solutions Inc. UWR-5/3000-D24A-C | -40 °C | 85 °C | 5 V | Through Hole | 15 W | 1.5 kV | 18 V | 1 | Isolated Module | 25.4 mm | 50.8 mm | 0.48 in | 12.1 mm | 25.4 mm | 2 in | 36 V | 6-DIP Module, 4 Leads | 3 A | ITE (Commercial) | 88 % | |
Murata Power Solutions Inc. UWR-5/1600-D5A-C | -40 °C | 70 °C | 5 V | Through Hole | 8 W | 1.5 kV | 4.7 V | 1 | Isolated Module | 25.4 mm | 50.8 mm | 0.38 in | 9.7 mm | 25.4 mm | 2 in | 7.25 V | 5-DIP Module | 1.6 A | ITE (Commercial) | 76 % | |
Murata Power Solutions Inc. UWR-5/3000-D48A-C | -40 °C | 85 °C | 5 V | Through Hole | 15 W | 1.5 kV | 36 V | 1 | Isolated Module | 25.4 mm | 50.8 mm | 0.48 in | 12.1 mm | 25.4 mm | 2 in | 75 V | 6-DIP Module, 4 Leads | 3 A | ITE (Commercial) | 88 % | |
Murata Power Solutions Inc. UWR-5/1800-D48A-C | -40 °C | 70 °C | 5 V | Through Hole | 9 W | 1.5 kV | 18 V | 1 | Isolated Module | 25.4 mm | 50.8 mm | 0.38 in | 9.7 mm | 25.4 mm | 2 in | 75 V | 5-DIP Module | 1.8 A | ITE (Commercial) | 81 % | |
Murata Power Solutions Inc. UWR-5/8-D24A-C | -40 °C | 85 °C | 5 V | Through Hole | 40 W | 1.5 kV | 18 V | 1 | Isolated Module | 50.8 mm | 50.8 mm | 0.45 " | 11.4 mm | 2 in | 2 in | 36 V | 8-DIP Module, 7 Leads | 8 A | ITE (Commercial) | 91.5 % | |
Murata Power Solutions Inc. UWR-5/3000-D12A-C | -40 °C | 85 °C | 5 V | Through Hole | 15 W | 1.5 kV | 10 VDC | 1 | Isolated Module | 25.4 mm | 50.8 mm | 0.48 in | 12.1 mm | 25.4 mm | 2 in | 18 V | 6-DIP Module, 4 Leads | 3 A | ITE (Commercial) | 85 % | |
Murata Power Solutions Inc. UWR-5/2000-D24E-C | -40 °C | 70 °C | 5 V | Through Hole | 10 W | 1.5 kV | 18 V | 1 | Isolated Module | 25.4 mm | 50.8 mm | 0.38 in | 9.7 mm | 25.4 mm | 2 in | 36 V | 5-DIP Module | 2 A | ITE (Commercial) | 85 % | |
Murata Power Solutions Inc. UWR-5/8-D48A-C | -40 °C | 85 °C | 5 V | Through Hole | 40 W | 1.5 kV | 36 V | 1 | Isolated Module | 50.8 mm | 50.8 mm | 0.45 " | 11.4 mm | 2 in | 2 in | 75 V | 8-DIP Module, 7 Leads | 8 A | ITE (Commercial) | 90 % |
Description
General part information
UWR-5 Series
The UWR-5/3000-D24A-C is a single-output high-density DC/DC Converter can source a continuous 6A. By combining a high-frequency, high-efficiency, synchronous-rectifier topology with the newest components and time-tested, fully automated, SMT-on-PCB construction, this UWR model is able to bring you 7 to 15W (at up to 6A) from which most competitors can only get 5 to 10W (at 3 to 4A). It delivers its full output power over ambient temperature ranges from -40°C to as high as 70°C without heat sinks or supplemental forced-air cooling. The device derates to 100°C and also features Input voltage ranges are 18 to 36V. It features input PI filters, input undervoltage and overvoltage lockout, input reverse-polarity protection, output overvoltage protection, output current limiting and continuous short-circuit protection.
