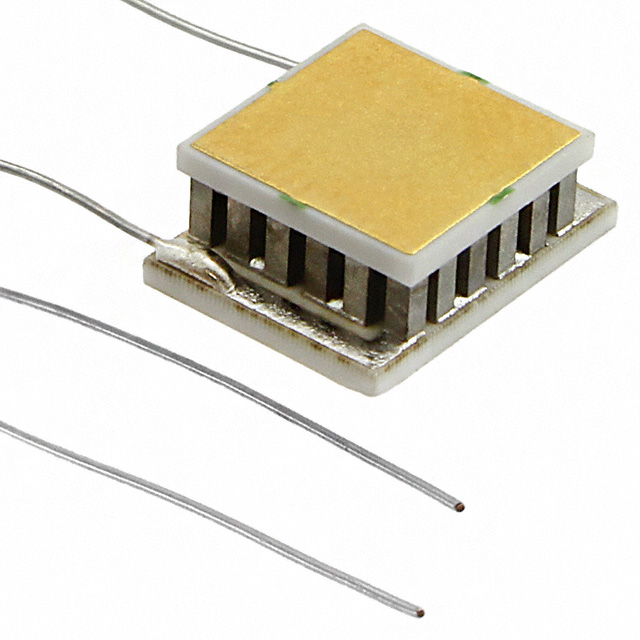

Specification	430003-501

Current - Max	1.2 A
Delta Tmax	67 °C
Features	Non-Sealed, Lead Wires
Height	3.02 mm
Maximum Power Dissipation (Qmax)	1.5 W
Number of Stages	1
Operating Temperature	80 °C
Resistance	1.57 Ohms
Size / Dimension Length	8.3 mm
Size / Dimension Shape	Rectangular
Size / Dimension Width	6.2 mm
Voltage - Max	2.1 V

OT Series

Part	Operating Temperature	Current - Max	Voltage - Max	Height	Maximum Power Dissipation (Qmax)	Features	Resistance	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Width	Delta Tmax	Number of Stages
Laird Thermal Systems, Inc. 430003-501	80 °C	1.2 A	2.1 V	3.02 mm	1.5 W	Lead Wires Non-Sealed	1.57 Ohms	Rectangular	8.3 mm	6.2 mm	67 °C	1
Laird Thermal Systems, Inc. 430005-518	80 °C	800 mA	3.7 V	2.44 mm	1.7 W	Epoxy Lead Wires Sealed	4.17 Ohms	Rectangular	8.13 mm	6.5 mm	67 °C	1
Laird Thermal Systems, Inc. 430002-501	80 °C	800 mA	2.1 V	2.44 mm	1 W	Lead Wires Non-Sealed	2.35 Ohms	Rectangular	6.5 mm	4.9 mm	67 °C	1
