Q-2O02O000D003M

Active

Amphenol Custom Cable

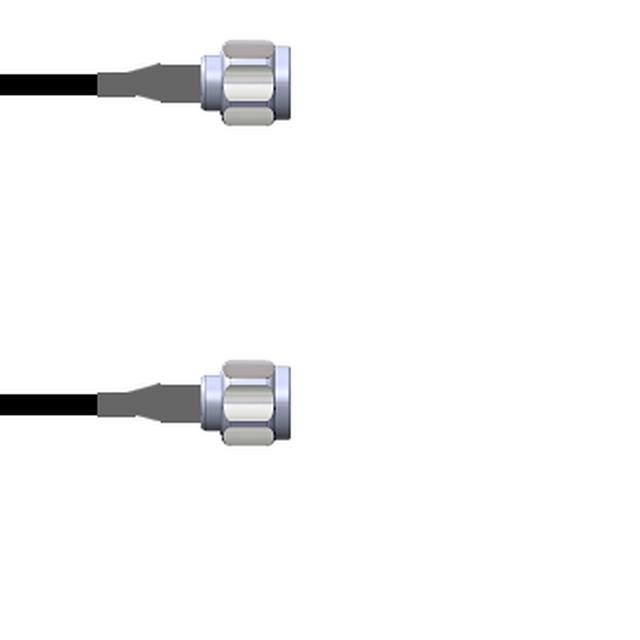

CBL ASSY NTYPE PLUG TO PLUG 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2O02O000D003M

Active

Amphenol Custom Cable

CBL ASSY NTYPE PLUG TO PLUG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2O02O000D003M

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 195
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2O02O0 Series

Part	Color	2nd Contact Gender	1st Contact Gender	Features	Cable Type	Overall Impedance	2nd Connector Mounting Type	Style	Frequency - Max [Max]	Length	Length	Length	1st Connector Mounting Type	2nd Connector
Amphenol Custom Cable Q-2O02O000D108i	Black	Male	Male	Shielded	LMR 195	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	6000 MHz	2.7 m	9 ft	108 in	Free Hanging (In-Line)	N-Type Plug
Amphenol Custom Cable Q-2O02O000D003M	Black	Male	Male	Shielded	LMR 195	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	6000 MHz	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	N-Type Plug
Amphenol Custom Cable Q-2O02O000D.75M	Black	Male	Male	Shielded	LMR 195	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	6000 MHz	750 mm		29.53 "	Free Hanging (In-Line)	N-Type Plug
Amphenol Custom Cable Q-2O02O000D006i	Black	Male	Male	Shielded	LMR 195	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	6000 MHz	152.4 mm		6 in	Free Hanging (In-Line)	N-Type Plug
Amphenol Custom Cable Q-2O02O000D009i	Black	Male	Male	Shielded	LMR 195	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	6000 MHz	228.6 mm		9 "	Free Hanging (In-Line)	N-Type Plug
Amphenol Custom Cable Q-2O02O000D012i	Black	Male	Male	Shielded	LMR 195	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	6000 MHz	304.8 mm		12 "	Free Hanging (In-Line)	N-Type Plug
Amphenol Custom Cable Q-2O02O000D001M	Black	Male	Male	Shielded	LMR 195	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	6000 MHz	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	N-Type Plug
Amphenol Custom Cable Q-2O02O000D024i	Black	Male	Male	Shielded	LMR 195	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	6000 MHz	609.6 mm		24 "	Free Hanging (In-Line)	N-Type Plug
Amphenol Custom Cable Q-2O02O000D2.5M	Black	Male	Male	Shielded	LMR 195	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	6000 MHz	2.5 m	8.2 '	98.4 in	Free Hanging (In-Line)	N-Type Plug
Amphenol Custom Cable Q-2O02O000D048i	Black	Male	Male	Shielded	LMR 195	50 Ohms	Free Hanging (In-Line)	N-Type to N-Type	6000 MHz	1200 mm	4 ft	48 in	Free Hanging (In-Line)	N-Type Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.77
		25	$ 74.31
		50	$ 68.84
		100	$ 64.16
		250	$ 60.26

Description

General part information

Q-2O02O0 Series

Cable Assembly Coaxial N-Type to N-Type LMR 195 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
