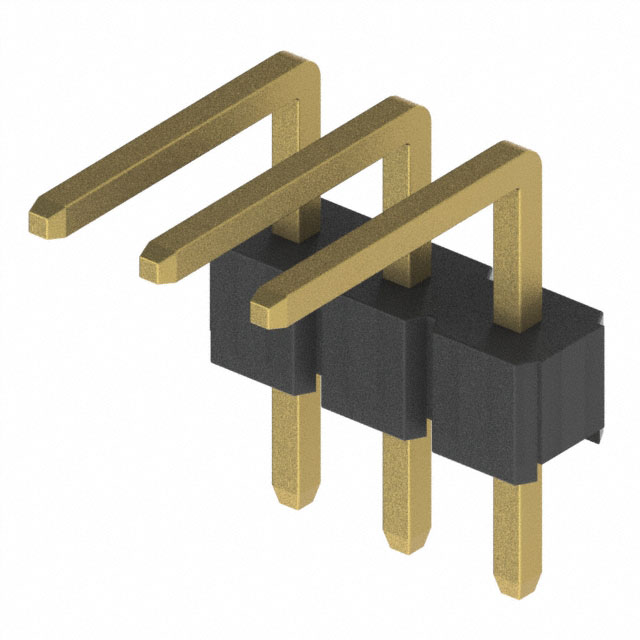

PH1RA-03-UA
ActiveAdam Tech
CONN HEADER R/A 3POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
PH1RA-03-UA
ActiveAdam Tech
CONN HEADER R/A 3POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PH1RA-03-UA |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 6 mm |
| Contact Length - Mating | 0.236 in |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
| Voltage Rating | 250 VAC |
PH1RA Series
| Part | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Insulation Color | Number of Positions | Contact Shape | Shrouding | Insulation Material | Contact Finish - Mating | Current Rating (Amps) | Contact Material | Mounting Type | Fastening Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Type | Contact Finish Thickness - Mating | Number of Rows | Contact Finish - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Termination | Insulation Height [z] | Insulation Height [z] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 250 VAC | 6 mm | 0.236 in | Black | 10 | Square | Unshrouded | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Brass | Through Hole Right Angle | Push-Pull | UL94 V-0 | -40 °C | 105 ░C | Header | Male Pin | Flash | 1 | Gold | Flash | All | Solder | 0.098 in | 2.5 mm | |
Adam Tech | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 250 VAC | 6 mm | 0.236 in | Black | Square | Unshrouded | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Brass | Through Hole Right Angle | Push-Pull | UL94 V-0 | -40 °C | 105 ░C | Header | Male Pin | Flash | 1 | Gold | Flash | All | Solder | 0.098 in | 2.5 mm | ||
Adam Tech | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 250 VAC | 6 mm | 0.236 in | Black | 6 | Square | Unshrouded | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Brass | Through Hole Right Angle | Push-Pull | UL94 V-0 | -40 °C | 105 ░C | Header | Male Pin | Flash | 1 | Gold | Flash | All | Solder | 0.098 in | 2.5 mm | |
Adam Tech | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 250 VAC | 6 mm | 0.236 in | Black | Square | Unshrouded | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Brass | Through Hole Right Angle | Push-Pull | UL94 V-0 | -40 °C | 105 ░C | Header | Male Pin | Flash | 1 | Gold | Flash | All | Solder | 0.098 in | 2.5 mm | 16 | |
Adam Tech | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 250 VAC | 6 mm | 0.236 in | Black | 12 | Square | Unshrouded | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Brass | Through Hole Right Angle | Push-Pull | UL94 V-0 | -40 °C | 105 ░C | Header | Male Pin | Flash | 1 | Gold | Flash | All | Solder | 0.098 in | 2.5 mm | |
Adam Tech | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 250 VAC | 6 mm | 0.236 in | Black | 8 | Square | Unshrouded | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Brass | Through Hole Right Angle | Push-Pull | UL94 V-0 | -40 °C | 105 ░C | Header | Male Pin | Flash | 1 | Gold | Flash | All | Solder | 0.098 in | 2.5 mm | |
Adam Tech | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 250 VAC | 6 mm | 0.236 in | Black | 19 | Square | Unshrouded | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Brass | Through Hole Right Angle | Push-Pull | UL94 V-0 | -40 °C | 105 ░C | Header | Male Pin | Flash | 1 | Gold | Flash | All | Solder | 0.098 in | 2.5 mm | |
Adam Tech | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 250 VAC | 6 mm | 0.236 in | Black | 9 | Square | Unshrouded | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Brass | Through Hole Right Angle | Push-Pull | UL94 V-0 | -40 °C | 105 ░C | Header | Male Pin | Flash | 1 | Gold | Flash | All | Solder | 0.098 in | 2.5 mm | |
Adam Tech | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 250 VAC | 6 mm | 0.236 in | Black | 14 | Square | Unshrouded | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Brass | Through Hole Right Angle | Push-Pull | UL94 V-0 | -40 °C | 105 ░C | Header | Male Pin | Flash | 1 | Gold | Flash | All | Solder | 0.098 in | 2.5 mm | |
Adam Tech | 0.1 in | 2.54 mm | 0.118 in | 3 mm | 250 VAC | 6 mm | 0.236 in | Black | 1 | Square | Unshrouded | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Brass | Through Hole Right Angle | Push-Pull | UL94 V-0 | -40 °C | 105 ░C | Header | Male Pin | Flash | 1 | Gold | Flash | All | Solder | 0.098 in | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.13 | |
| 10 | $ 0.10 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.06 | |||
| 5000 | $ 0.05 | |||
| 10000 | $ 0.05 | |||
Description
General part information
PH1RA Series
Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
