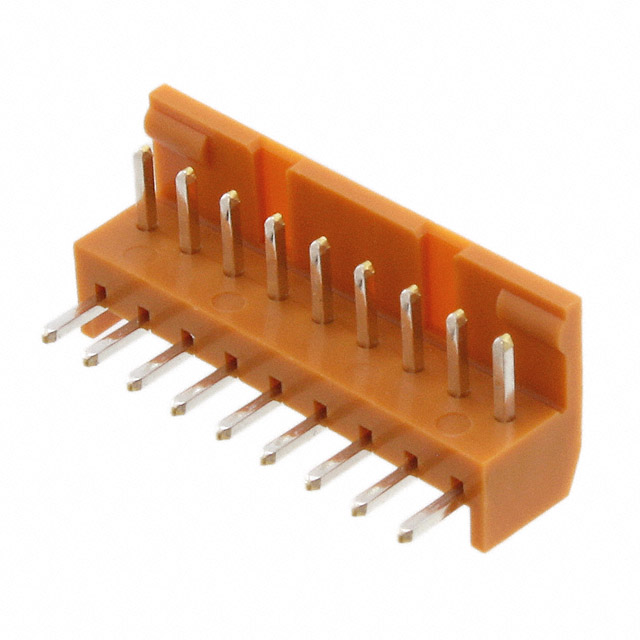

Specification	IL-G-9P-S3L2-SA

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.157 in
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	3 A
Fastening Type	Friction Lock
Insulation Color	Brown
Insulation Height	0.236 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Cable/Wire, Board
Termination	Solder

IL-G-9P Series

Part	Connector Type	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Contact Shape	Current Rating (Per Contact)	Fastening Type	Termination	Style	Mounting Type	Number of Positions	Contact Material	Shrouding	Contact Length - Post	Insulation Height	Contact Type	Insulation Material	Insulation Color	Contact Finish - Post	Contact Length - Mating	Pitch - Mating
JAE Electronics IL-G-9P-S3L2-SA	Header	All	UL94 V-0	Tin	-40 °C	85 °C	1	Square	3 A	Friction Lock	Solder	Board Cable/Wire	Right Angle Through Hole	9	Brass	Shrouded - 1 Wall	0.138 in	0.236 in	Male Pin	Nylon 6/6 Polyamide (PA66)	Brown	Tin	0.157 in	0.098 in
