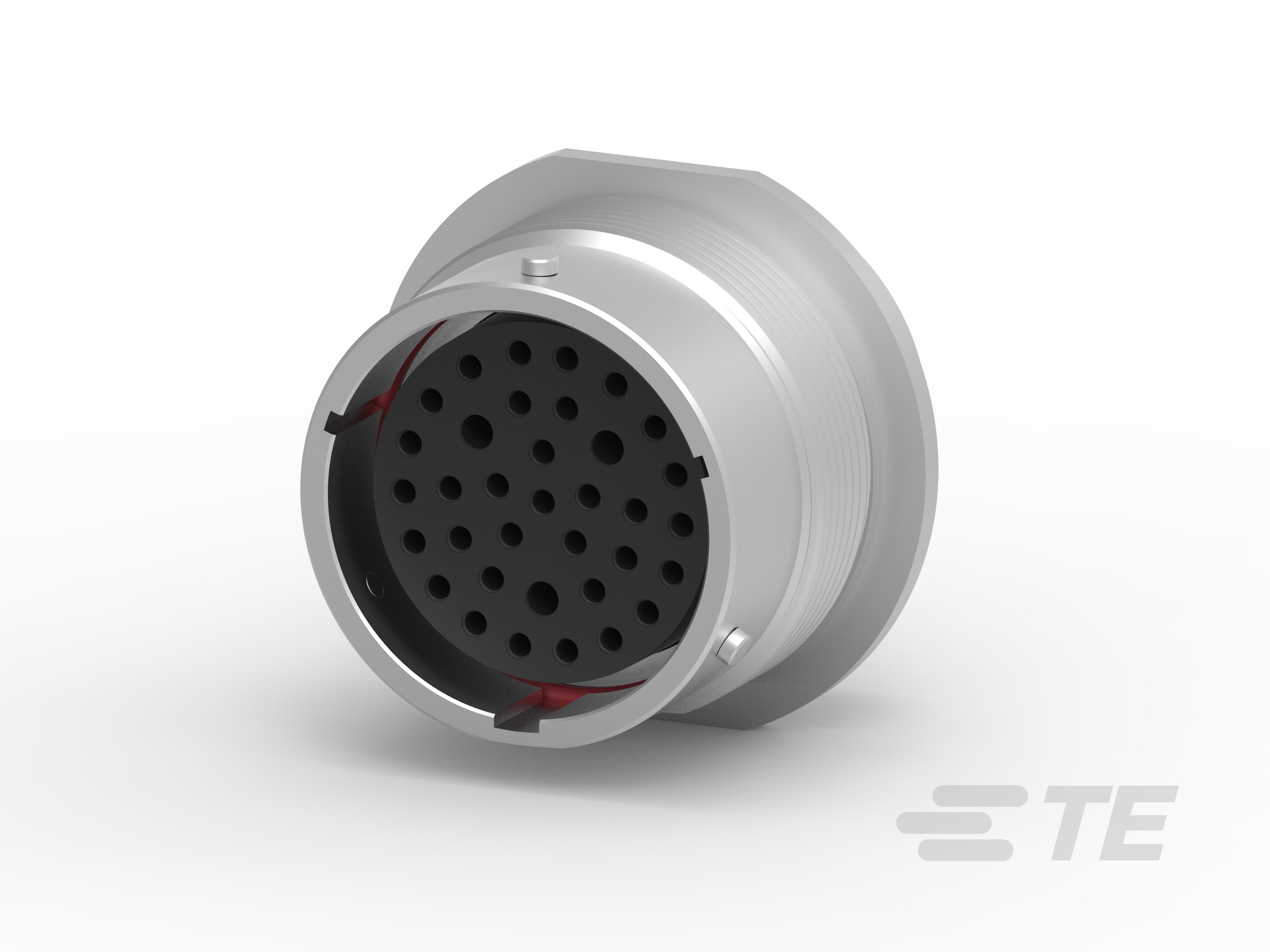

Specification	HD34-24-35SN

Connector Type	Receptacle Housing
Contact Size	20, 16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	35
Orientation	Keyed
Shell Material	Aluminum
Shell Size - Insert (Maximum)	35
Shell Size - Insert (Minimum)	24
Shielding	Unshielded
Type	For Female Sockets

DEUTSCH HD30 Series

...

Part	Orientation	Mounting Type	Connector Type	Shell Material	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Contact Type	Type	Shell Size - Insert Width	Shell Size - Insert Length	Fastening Type	Contact Size	Housing Color	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Note	Insert Material	Contact Shape	Material Flammability Rating	Features	Primary Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Size - Insert	Shell Size - Insert	Color	Accessory Type	Material	For Use With/Related Products	Mounting Feature
TE Connectivity AMP Connectors HD36-18-14SN
TE Connectivity AMP Connectors HD36-24-19PE	Keyed	Free Hanging (In-Line)	Plug Housing	Aluminum	Unshielded	Dust Tight Waterproof	IP67	Crimp	For Male Pins	19 mm	24 mm	Bayonet Lock	12 16	Silver	19	125 °C	-55 °C	Contacts Not Included	PEI Polyetherimide	Circular
TE Connectivity AMP Connectors HD36-24-16SN-072	Keyed	Free Hanging (In-Line)	Plug Housing	Aluminum Alloy	Unshielded	Dust Tight Waterproof	IP67	Crimp	For Female Sockets	16 mm	24 mm	Bayonet Lock	12	Silver	16	125 °C	-55 °C	Contacts Not Included		Circular	UL94 V-0	Coupling Nut	Metal
TE Connectivity AMP Connectors HD36-24-31PT-072	N (Normal)	Free Hanging (In-Line)	Plug Housing	Aluminum Alloy	Unshielded	Dust Tight Waterproof	IP67	Crimp	For Male Pins			Bayonet Lock	16 S	Silver	31						UL94 V-0	Coupling Nut	Metal	31	24
TE Connectivity AMP Connectors 0413-214-1205																										12	12	Yellow	Sealing Plug	Polybutylene Terephthalate (PBT)	Contacts Size 12
TE Connectivity AMP Connectors HD36-24-16PN-072	N (Normal)	Free Hanging (In-Line)	Plug Housing	Aluminum Alloy	Unshielded	Dust Tight Waterproof	IP67	Crimp	For Male Pins	16 mm	24 mm	Bayonet Lock	12	Silver	16						UL94 V-0	Coupling Nut	Metal
TE Connectivity AMP Connectors HD36-24-19SN-L005	N (Normal)	Free Hanging (In-Line)	Plug Housing	Aluminum Alloy	Unshielded	Dust Tight Waterproof	IP67	Crimp	For Female Sockets	19 mm	24 mm	Bayonet Lock	12 16	Silver	19							Backshell Coupling Nut	Metal
TE Connectivity AMP Connectors HD36-24-9PN	Keyed	Free Hanging (In-Line)	Plug Housing	Aluminum	Unshielded	Dust Tight Waterproof	IP67	Crimp	For Male Pins	9 mm	24 mm	Bayonet Lock	4 8 12	Silver	9	125 °C	-55 °C	Contacts Not Included	PEI Polyetherimide	Circular		Coupling Nut
TE Connectivity AMP Connectors HD34-18-14PE	Keyed	Panel Mount	Receptacle Housing	Aluminum	Unshielded	Dust Tight Waterproof	IP67	Crimp	For Male Pins	14 mm	18 mm	Bayonet Lock	16 S	Silver	14																	Bulkhead Front Side Nut
TE Connectivity AMP Connectors HD36-24-21PN	Keyed	Free Hanging (In-Line)	Plug Housing	Aluminum	Unshielded	Dust Tight Waterproof	IP67	Crimp	For Male Pins	21 mm	24 mm	Bayonet Lock	12 16	Silver	21							Coupling Nut
