846-034-522-804

Active

EDAC Inc.

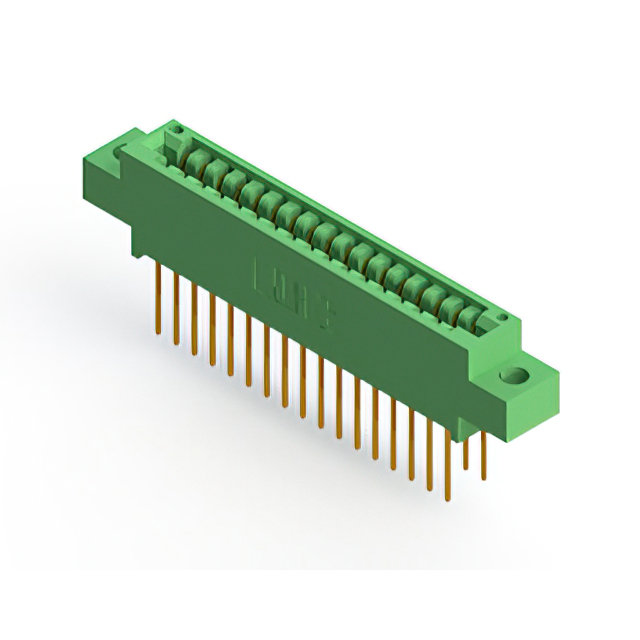

CONN EDGE DUAL FMALE 34POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-034-522-804

Active

EDAC Inc.

CONN EDGE DUAL FMALE 34POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-034-522-804

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

846-034 Series

...

Part	Contact Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Material - Insulation	Flange Feature	Card Type	Number of Rows	Contact Finish	Gender	Number of Positions/Bay/Row [custom]	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Color	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Features	Flange Feature	Flange Feature
EDAC Inc. 846-034-558-607	Copper Alloy	Cantilever	125 °C	-40 °C	Single	Diallyl Phthalate (DAP)	M3 Threaded Insert Top Mount Opening	Non Specified - Single Edge	1	Gold	Female	34	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	34	0.125 in	3.18 mm	10 Áin	0.25 Ám	Green	Through Hole Right Angle
EDAC Inc. 846-034-522-108	Copper Alloy	Cantilever	125 °C	-40 °C	Single	Diallyl Phthalate (DAP)	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	1	Gold	Female	34	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	34	0.125 in	3.18 mm	10 Áin	0.25 Ám	Green	Through Hole
EDAC Inc. 846-034-555-204	Copper Alloy	Cantilever	125 °C	-40 °C	Dual	Diallyl Phthalate (DAP)	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	Gold	Female		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	34	0.125 in	3.18 mm	10 Áin	0.25 Ám	Green	Board Edge Straddle Mount	3.96 mm	0.156 in	Card Extender
EDAC Inc. 846-034-500-803	Copper Alloy	Cantilever	125 °C	-40 °C	Dual	Diallyl Phthalate (DAP)	Floating Bobbin Top Mount Opening	Non Specified - Dual Edge	2	Gold	Female		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	34	0.125 in	3.18 mm	10 Áin	0.25 Ám	Green	Through Hole	2.95 mm	0.116 in
EDAC Inc. 846-034-555-203	Copper Alloy	Cantilever	125 °C	-40 °C	Dual	Diallyl Phthalate (DAP)	Floating Bobbin Flush Mount	Non Specified - Dual Edge	2	Gold	Female		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	34	0.125 in	3.18 mm	10 Áin	0.25 Ám	Green	Board Edge Straddle Mount	2.95 mm	0.116 in	Card Extender
EDAC Inc. 846-034-500-607	Copper Alloy	Cantilever	125 °C	-40 °C	Single	Diallyl Phthalate (DAP)	M3 Threaded Insert Top Mount Opening	Non Specified - Single Edge	1	Gold	Female	34	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	34	0.125 in	3.18 mm	10 Áin	0.25 Ám	Green	Through Hole
EDAC Inc. 846-034-522-804	Copper Alloy	Cantilever	125 °C	-40 °C	Dual	Diallyl Phthalate (DAP)	Top Mount Opening Unthreaded	Non Specified - Dual Edge	2	Gold	Female		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	34	0.125 in	3.18 mm	10 Áin	0.25 Ám	Green	Through Hole	3.96 mm	0.156 in
EDAC Inc. 846-034-555-804	Copper Alloy	Cantilever	125 °C	-40 °C	Dual	Diallyl Phthalate (DAP)	Top Mount Opening Unthreaded	Non Specified - Dual Edge	2	Gold	Female		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	34	0.125 in	3.18 mm	10 Áin	0.25 Ám	Green	Board Edge Straddle Mount	3.96 mm	0.156 in	Card Extender
EDAC Inc. 846-034-559-112	Copper Alloy	Cantilever	125 °C	-40 °C	Single	Diallyl Phthalate (DAP)	Flush Mount Side Opening Unthreaded	Non Specified - Single Edge	1	Gold	Female	34	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	34	0.125 in	3.18 mm	10 Áin	0.25 Ám	Green	Through Hole Right Angle	3.25 mm	0.128 "
EDAC Inc. 846-034-500-612	Copper Alloy	Cantilever	125 °C	-40 °C	Single	Diallyl Phthalate (DAP)	Side Mount Opening Unthreaded	Non Specified - Single Edge	1	Gold	Female	34	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	34	0.125 in	3.18 mm	10 Áin	0.25 Ám	Green	Through Hole				3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 39.86

Description

General part information

846-034 Series

34 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
