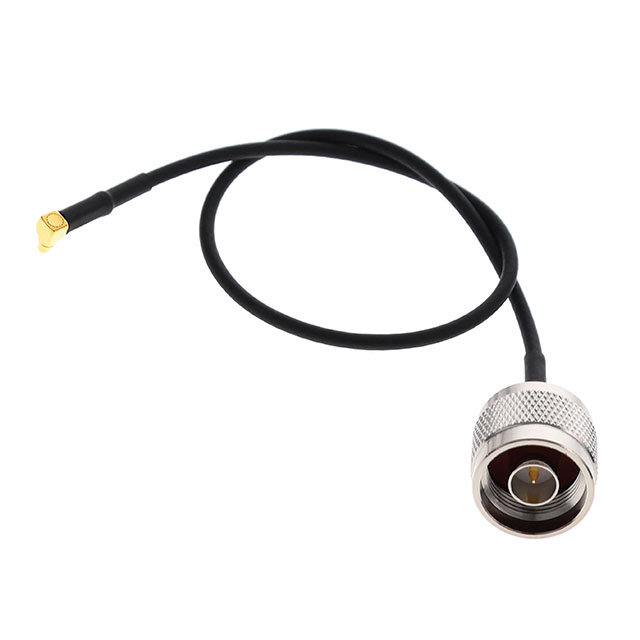

CA100-NM-MMCX-12

Active

TE Connectivity Raychem Cable Protection

CBL ASSY MMCX-NTYPE PLUG-PLG 12"

Deep-Dive with AI

Search across all available documentation for this part.

CA100-NM-MMCX-12

Active

TE Connectivity Raychem Cable Protection

CBL ASSY MMCX-NTYPE PLUG-PLG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CA100-NM-MMCX-12

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	LMR 100
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	12 "
Length	304.8 mm
Style	MMCX to N-Type

CA100 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Cable Type	Cable Impedance	1st Connector Mounting Type	Style	2nd Connector	Color	1st Contact Gender	Frequency - Max [Max]	Length	Length	1st Connector	2nd Contact Gender	2nd Connector Mounting Type	2nd Connector Mounting Feature
TE Connectivity Raychem Cable Protection CA100-RPTNCF-NC-6	125 °C	-40 °C	Shielded	LMR 100	50 Ohms	Free Hanging (In-Line)	RP-TNC to Cable	Cable (Round)	Copper	Female	6000 MHz	152.4 mm	6 in	RP-TNC Plug
TE Connectivity Raychem Cable Protection CA100-NM-MMCX-12			Shielded	LMR 100	50 Ohms	Free Hanging (In-Line)	MMCX to N-Type	MMCX Plug Right Angle	Copper	Male	6000 MHz	304.8 mm	12 "		Male	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection CA100-NM-RSMAM-12	125 °C	-40 °C	Shielded	LMR 100	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	N-Type Plug	Copper	Female	6000 MHz	304.8 mm	12 "	RP-SMA Plug	Male	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection CA100-NFB-RSMAM-12	125 °C	-40 °C	Shielded	LMR 100	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	N-Type Jack	Copper	Female	12.4 GHz	304.8 mm	12 "	RP-SMA Plug	Female	Panel Mount	Bulkhead - Front Side Nut
TE Connectivity Raychem Cable Protection CA100-NM-MC-12	125 °C	-40 °C	Shielded	LMR 100	50 Ohms	Free Hanging (In-Line)			Copper	Male	6000 MHz	304.8 mm	12 "
TE Connectivity Raychem Cable Protection CA100-NM-RASMAM-12	125 °C	-40 °C	Shielded	LMR 100	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	N-Type Plug	Copper	Male	6000 MHz	304.8 mm	12 "	Right Angle SMA Plug	Male	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection CA100-NM-RSMAM-6	125 °C	-40 °C	Shielded	LMR 100	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	N-Type Plug	Copper	Female	6000 MHz	152.4 mm	6 in	RP-SMA Plug	Male	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection CA100MCXRA-SMBRA11			Shielded	LMR 100	50 Ohms		MMCX to SMB	SMB Jack Right Angle		Male	6000 MHz	279.4 mm	11 "	MCX Plug Right Angle	Male
TE Connectivity Raychem Cable Protection CA100-TNCF-NC-6	125 °C	-40 °C	Shielded	LMR 100	50 Ohms	Free Hanging (In-Line)	TNC to Cable	Cable (Round)	Copper	Female	6000 MHz	152.4 mm	6 in	TNC Jack
TE Connectivity Raychem Cable Protection CA100-RSMAM-RPSMA	125 °C	-40 °C	Shielded	LMR 100	50 Ohms	Free Hanging (In-Line)	RP-SMA to RP-SMA		Copper	Male	6000 MHz	304.8 mm	12 "	RP-SMA Jack	Female	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.57
		10	$ 10.38
		25	$ 9.30
		100	$ 8.09
		250	$ 7.51
		500	$ 7.15
		1000	$ 7.00

Description

General part information

CA100 Series

Cable Assembly Coaxial MMCX to N-Type 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
