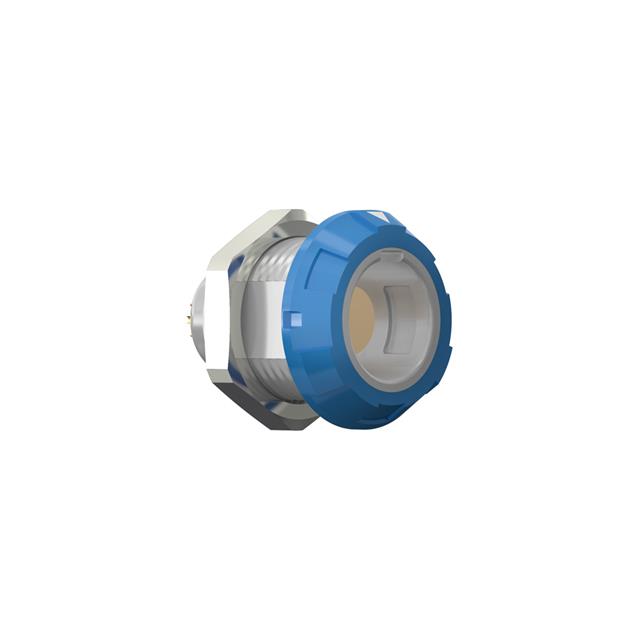

Specification	G11ME7-P09QC00-0060

Applications	Medical, Industrial, Testing Equipment & Measurement
Color	Blue, Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	4 A
Fastening Type	Push-Pull, Detent Lock
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount, Through Hole
Number of Positions	9
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-50 °C
Orientation	E
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shell Size - Insert	1
Shielding	Unshielded
Termination	Solder
Voltage Rating	33 VAC

G11ME7-P Series

Part	Termination	Material Flammability Rating	Voltage Rating	Contact Finish - Mating	Mounting Feature	Contact Material	Connector Type	Shielding	Shell Size - Insert	Shell Size - Insert	Primary Material	Shell Material	Applications	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Fastening Type	Color	Current Rating	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Mounting Type
ODU G11ME7-P10LCC0-0050	Solder Cup	UL94 V-0	25 V	Gold	Bulkhead Rear Side Nut	Brass	Female Sockets Receptacle	Unshielded	1	1	Plastic	Polysulfone (PSU)	Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50	10	Detent Lock Push-Pull	Gray Green	4 A	PEEK Polyetheretherketone	120 °C	-50 °C	E	Panel Mount
ODU G11ME7-P09QC00-0060	Solder	UL94 V-0	33 VAC	Gold	Bulkhead Rear Side Nut	Brass	Female Sockets Receptacle	Unshielded	1	1	Plastic	Polysulfone (PSU)	Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50	9	Detent Lock Push-Pull	Blue Gray	4 A	PEEK Polyetheretherketone	120 °C	-50 °C	E	Panel Mount Through Hole
ODU G11ME7-P06LFG0-0070	Solder Cup	UL94 V-0	33 VAC	Gold	Bulkhead Rear Side Nut	Brass	Female Sockets Receptacle	Unshielded	1	1	Plastic	Polysulfone (PSU)	Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50	6	Detent Lock Push-Pull	Gray	7.5 A	PEEK Polyetheretherketone	120 °C	-50 °C	E	Panel Mount
ODU G11ME7-P02LPH0-0080	Solder Cup	UL94 V-0	48 V	Gold	Bulkhead Rear Side Nut	Brass	Female Sockets Receptacle	Unshielded	1	1	Plastic	Polysulfone (PSU)	Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50	2	Detent Lock Push-Pull	Black Gray	12 A	PEEK Polyetheretherketone	120 °C	-50 °C	E	Panel Mount
ODU G11ME7-P02LPH0-0060	Solder Cup	UL94 V-0	48 V	Gold	Bulkhead Rear Side Nut	Brass	Female Sockets Receptacle	Unshielded	1	1	Plastic	Polysulfone (PSU)	Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50	2	Detent Lock Push-Pull	Blue Gray	12 A	PEEK Polyetheretherketone	120 °C	-50 °C	E	Panel Mount
ODU G11ME7-P02LPH0-0040	Solder Cup	UL94 V-0	48 V	Gold	Bulkhead Rear Side Nut	Brass	Female Sockets Receptacle	Unshielded	1	1	Plastic	Polysulfone (PSU)	Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50	2	Detent Lock Push-Pull	Gray Yellow	12 A	PEEK Polyetheretherketone	120 °C	-50 °C	E	Panel Mount
