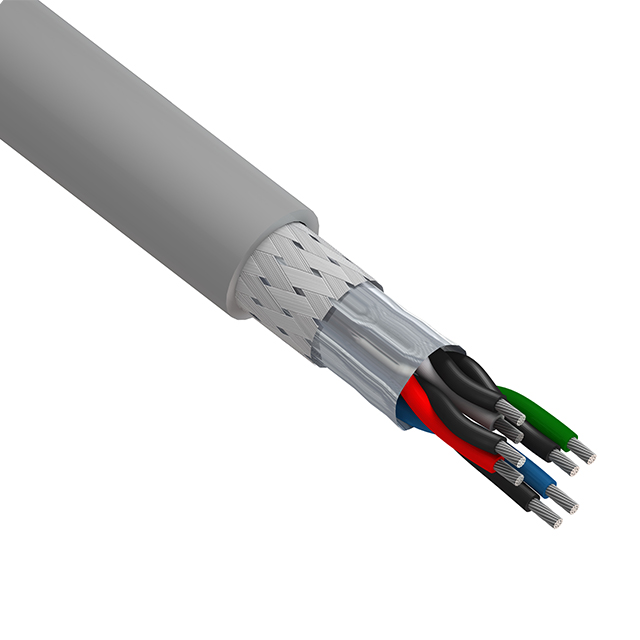

76504TS 0081000
ActiveBelden Inc.
MULTI-PAIR 8CON 26AWG GRAY FEET
Deep-Dive with AI
Search across all available documentation for this part.
76504TS 0081000
ActiveBelden Inc.
MULTI-PAIR 8CON 26AWG GRAY FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 76504TS 0081000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7 Strands, 34 AWG |
| Features | Oil Resistant, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.272 in |
| Jacket (Insulation) Diameter [diameter] | 6.91 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.04 in |
| Jacket (Insulation) Thickness | 1.016 mm |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 8 |
| Ratings | UL Style 20006 |
| Shield Coverage | 100 %, 85 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 300 V |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 2.39 | |
| 3 | $ 2.21 | |||
| 5 | $ 2.13 | |||
| 7 | $ 2.08 | |||
| 10 | $ 2.03 | |||
| 25 | $ 1.91 | |||
| 50 | $ 1.81 | |||
| 100 | $ 1.73 | |||
Description
General part information
76504TS Series
8 (4 Pair) Conductor Multi-Pair Cable Gray 26 AWG Foil, Braid Enter Number of Feet in Order Quantity
