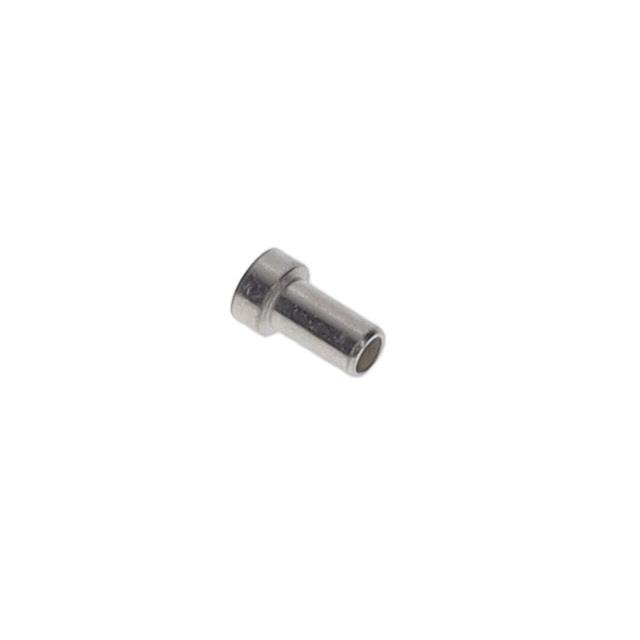

0577-0-15-80-21-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Part	Socket Depth	Socket Depth	Flange Diameter	Flange Diameter	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Contact Material	Termination	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type
Mill-Max Manufacturing Corp. 0577-0-15-80-21-27-10-0	2.54 mm	0.1 "	1.47 mm	0.058 in	0.76 Ám	30 Áin	Gold	-55 °C	125 °C	0.1 "	2.54 mm	Beryllium Copper	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail
Mill-Max Manufacturing Corp. 0577-0-15-01-21-02-10-0	2.54 mm	0.1 "	1.47 mm	0.058 in	0.76 Ám	30 Áin	Gold	-55 °C	125 °C	0.1 "	2.54 mm	Beryllium Copper	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail
Mill-Max Manufacturing Corp. 0577-0-15-80-21-14-10-0	2.54 mm	0.1 "	1.47 mm	0.058 in	0.25 Ám	10 Áin	Gold	-55 °C	125 °C	0.1 "	2.54 mm	Beryllium Copper	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail
Mill-Max Manufacturing Corp. 0577-0-15-80-21-84-10-0	2.54 mm	0.1 "	1.47 mm	0.058 in	2.54 µm	100 µin	Tin	-55 °C	125 °C	0.1 "	2.54 mm	Beryllium Copper	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail
Mill-Max Manufacturing Corp. 0577-0-15-15-21-14-10-0	2.54 mm	0.1 "	1.47 mm	0.058 in	0.25 Ám	10 Áin	Gold	-55 °C	125 °C	0.1 "	2.54 mm	Beryllium Copper	Solder	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Solder

Technical documentation and resources

No documents available
