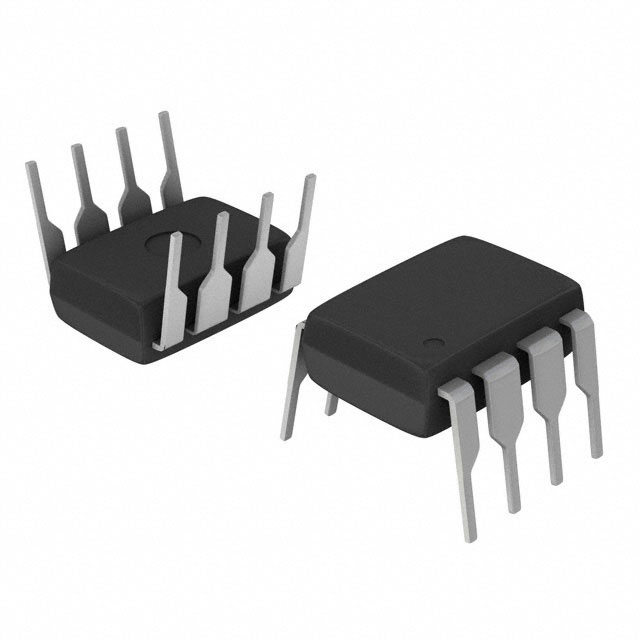

ALD2331PAL

Active

Advanced Linear Devices Inc.

IC COMPARATOR 2 GEN PUR 8DIP

Search across all available documentation for this part.

Active

Advanced Linear Devices Inc.

IC COMPARATOR 2 GEN PUR 8DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ALD2331PAL

CMRR, PSRR (Typ)	75 dB, 80 dB
Current - Input Bias (Max)	20 pA
Current - Output (Typ)	50 mA
Current - Quiescent (Max) [Max]	180 µA
Mounting Type	Through Hole
Number of Elements	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Type	CMOS, Open-Drain, TTL, NMOS
Package / Case	0.3 in
Package / Case	8-DIP
Package / Case	7.62 mm
Supplier Device Package	8-PDIP
Type	General Purpose
Voltage - Input Offset (Max)	2 mV
Voltage - Supply, Single/Dual (±) [Max]	5 V, 10 V
Voltage - Supply, Single/Dual (±) [Min]	-1.5 V, 3 V

IC COMPARATOR 2 GEN PUR 8DIP

Part	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Input Offset (Max)	Current - Quiescent (Max) [Max]	Package / Case	Package / Case	Package / Case	Current - Output (Typ)	Current - Input Bias (Max)	Number of Elements	Operating Temperature [Max]	Operating Temperature [Min]	Type	Supplier Device Package	Output Type	CMRR, PSRR (Typ)	Mounting Type
Advanced Linear Devices Inc. ALD2331PAL	5 V, 10 V	-1.5 V, 3 V	2 mV	180 µA	0.3 in	8-DIP	7.62 mm	50 mA	20 pA	2	70 °C	0 °C	General Purpose	8-PDIP	CMOS, NMOS, Open-Drain, TTL	75 dB, 80 dB	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	50	$ 11.08

General part information

Comparator General Purpose CMOS, NMOS, Open-Drain, TTL 8-PDIP
