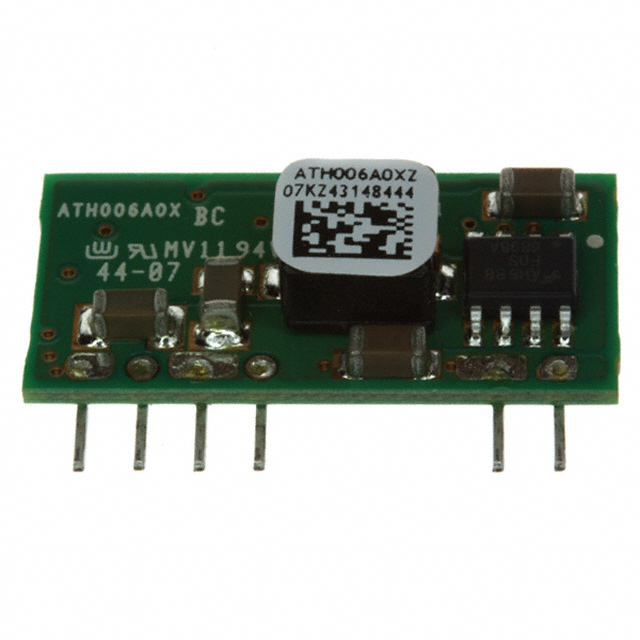

ATH006A0XZ

Active

OmniOn Power™

DC DC CONVERTER 0.8-3.6V 21W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 0.8-3.6V 21W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 0.8-3.6V 21W

Part	Features	Power (Watts)	Package / Case	Mounting Type	Applications	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Control Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Type	Number of Outputs	Voltage - Input (Max) [Max]
OmniOn Power™ ATH006A0XZ	OCP, OTP, Remote On/Off, UVLO	21 W	6-SIP Module	Through Hole	ITE (Commercial)	2.4 V	6 A	Active Low, Enable	25.4 mm	6.7 mm	12.7 mm	1 in	0.5 in	0.26 "	96 %	85 °C	-40 °C	0.8 V	3.6 V	Non-Isolated PoL Module	1	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 6A 2.4V - 5.5V Input

Technical documentation and resources

No documents available
