H1CXS-3436G
ActiveAssmann WSW Components
IDC CBL - HHKC34S/AE34G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H1CXS-3436G
ActiveAssmann WSW Components
IDC CBL - HHKC34S/AE34G/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H1CXS-3436G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Cable |
| Contact Finish | Tin |
| Features | Polarizing Key |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.89 | |
| 10 | $ 3.54 | |||
| 25 | $ 3.35 | |||
| 50 | $ 3.27 | |||
| 100 | $ 3.12 | |||
| 250 | $ 2.73 | |||
| 500 | $ 2.65 | |||
| 1000 | $ 2.26 | |||
| 2500 | $ 2.10 | |||
Description
General part information
H1CXS-34 Series

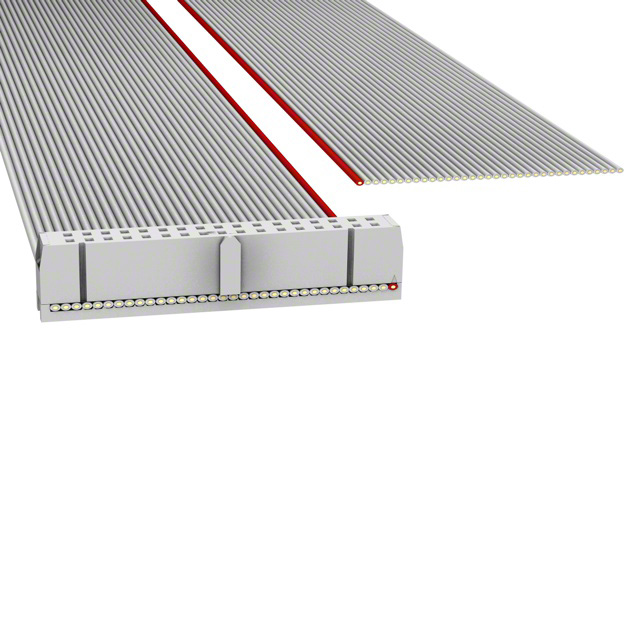

34 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
