TMR 3-4821WI
ActiveTraco Power
DC DC CONVERTER +/-5V 3W
Deep-Dive with AI
Search across all available documentation for this part.

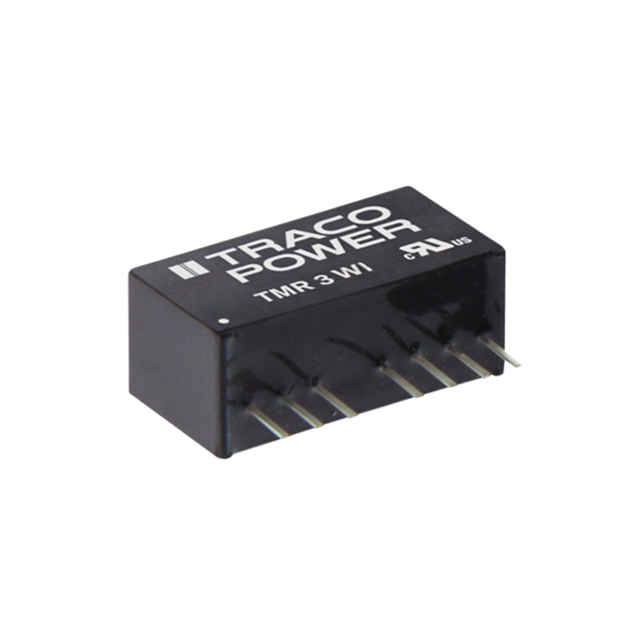

TMR 3-4821WI
ActiveTraco Power
DC DC CONVERTER +/-5V 3W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMR 3-4821WI |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 300 mA |
| Efficiency | 79 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SIP Module |
| Package / Case | 7 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 21.8 mm |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [y] | 9.2 mm |
| Size / Dimension [z] | 0.44 " |
| Size / Dimension [z] | 11.1 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
TMR 3 Series
| Part | Features | Power (Watts) | Voltage - Input (Min) [Min] | Voltage - Output 1 | Current - Output (Max) [Max] | Mounting Type | Voltage - Input (Max) [Max] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Number of Outputs | Package / Case | Package / Case | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Applications | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Traco Power | Remote On/Off SCP | 3 W | 4.5 V | 12 V | 250 mA | Through Hole | 9 V | Isolated Module | 85 °C | -40 °C | 79 % | 1 | 8-SIP Module | 7 Leads | 1.5 kV | 0.44 in 11.2 mm | 0.86 in 21.8 mm | 0.37 in 9.3 mm | ITE (Commercial) | ||||||||||
Traco Power | Remote On/Off SCP | 2.3 W | 36 V | 3.3 V | 700 mA | Through Hole | 75 V | Isolated Module | 85 °C | -40 °C | 74 % | 1 | 8-SIP Module | 7 Leads | 1.6 kV | 21.8 mm | ITE (Commercial) | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | |||||||
Traco Power | Remote On/Off SCP | 3 W | 43 V | 12 V | Through Hole | 160 V | Isolated Module | 90 °C | -40 °C | 83 % | 2 | 8-SIP Module | 3000 V | 21.8 mm | ITE (Commercial) Railway | 0.38 in | 9.6 mm | 0.86 in | 0.44 " | 11.2 mm | 125 mA | 125 mA | -12 V | ||||||
Traco Power | Remote On/Off SCP | 3 W | 18 V | 5 V | Through Hole | 75 V | Isolated Module | 85 °C | -40 °C | 79 % | 2 | 8-SIP Module | 7 Leads | 1.6 kV | 21.8 mm | ITE (Commercial) | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | -5 V | 300 mA | ||||||
Traco Power | Remote On/Off SCP | 3 W | 9 V | 15 V | 200 mA | Through Hole | 36 V | Isolated Module | 90 °C | -40 °C | 83 % | 1 | 8-SIP Module | 3000 V | 21.8 mm | ITE (Commercial) Railway | 0.38 in | 9.6 mm | 0.86 in | 0.44 " | 11.2 mm | ||||||||
Traco Power | Remote On/Off SCP | 3 W | 9 V | 12 V | 250 mA | Through Hole | 18 V | Isolated Module | 85 °C | -40 °C | 83 % | 1 | 8-SIP Module | 7 Leads | 1.6 kV | 21.8 mm | ITE (Commercial) | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | |||||||
Traco Power | Remote On/Off SCP | 3 W | 9 V | 5 V | Through Hole | 36 V | Isolated Module | 90 °C | -40 °C | 80 % | 2 | 8-SIP Module | 3000 V | 21.8 mm | ITE (Commercial) Railway | 0.38 in | 9.6 mm | 0.86 in | 0.44 " | 11.2 mm | -5 V | 300 mA | |||||||
Traco Power | Remote On/Off SCP | 3 W | 36 V | 12 V | Through Hole | 75 V | Isolated Module | 85 °C | -40 °C | 83 % | 2 | 8-SIP Module | 7 Leads | 1.5 kV | 0.44 in 11.2 mm | 0.86 in 21.8 mm | 0.37 in 9.3 mm | ITE (Commercial) | 125 mA | 125 mA | -12 V | ||||||||
Traco Power | Remote On/Off SCP | 3 W | 4.5 V | 12 V | Surface Mount | 12 V | Isolated Module | 80 C | -40 °C | 83 % | 2 | 14-SMD Module 7 Leads | 1.5 kV | ITE (Commercial) | 0.59 in | 0.75 in | 0.34 in | 125 mA | 125 mA | -12 V | 8.7 mm 14.9 mm 19 mm | ||||||||
Traco Power | Remote On/Off SCP | 3 W | 4.5 V | 5 V | 600 mA | Through Hole | 18 V | Isolated Module | 85 °C | -40 °C | 78 % | 1 | 8-SIP Module | 7 Leads | 1.6 kV | 21.8 mm | ITE (Commercial) | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 23.73 | |
Description
General part information
TMR 3 Series
Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 18V - 75V Input
