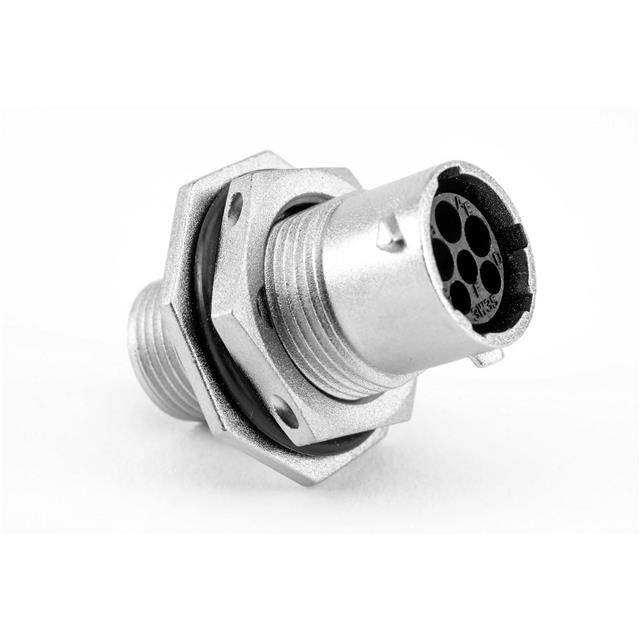

RT07103W3SNH
ActiveAmphenol Sine Systems Corp
RECEPTACLE, JAM NUT, 6 (3+3) POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT07103W3SNH
ActiveAmphenol Sine Systems Corp
RECEPTACLE, JAM NUT, 6 (3+3) POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT07103W3SNH |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 (3), 16 (3) |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Includes | 1 O-Ring, 1 Gasket, 1 Nut, 1 Connector |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 10-3W3 |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 12.85 | |
| 10 | $ 11.14 | |||
| 25 | $ 10.78 | |||
Description
General part information
RT07103 Series
6 Position Circular Connector Receptacle Housing Panel Mount
