17-100944

Active

Amphenol CONEC

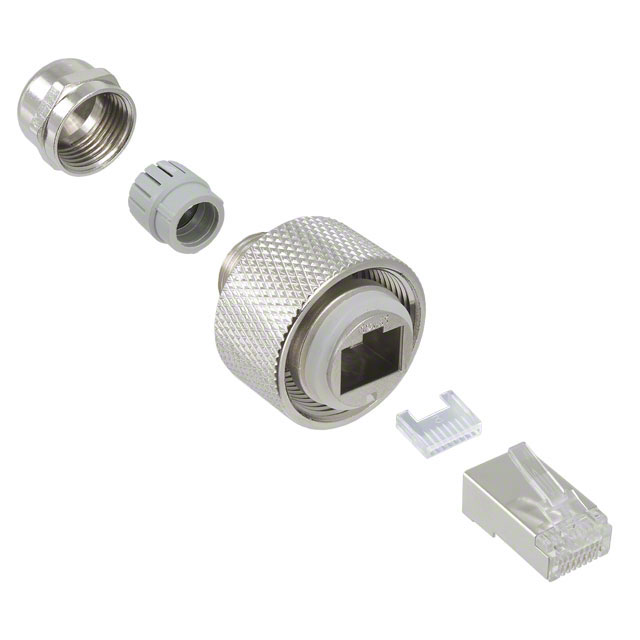

MOD CONN, RJ45 PLUG, 8P8C, METALIZED ABS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

17-100944

Active

Amphenol CONEC

MOD CONN, RJ45 PLUG, 8P8C, METALIZED ABS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-100944

Cable Type	Round Cable, Solid, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.2 A
Features	Circular Threaded Coupling
Housing Material	Polycarbonate (PC)
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	2.335 in
Length	59.3 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5e
Shield Material	Copper Alloy
Shielding	Shielded
Termination	IDC
Voltage Rating	100 V
Wire Gauge	24 AWG

17-1009 Series

Part	Contact Material	Mounting Type	Ratings	Contact Finish	Convert To (Adapter End)	Shell Material, Finish	Ingress Protection	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Feature	Shielding	Type	Housing Material	Convert From (Adapter End)	For Use With/Related Products	Accessory Type	Cable Type	Color	Length	Length	Number of Positions/Contacts	Connector Type	Style	Shield Material	Termination	Voltage Rating	Wire Gauge	Current Rating (Amps)	Length [x]	Length [x]
Amphenol CONEC 17-100934	Phosphor Bronze	Bulkhead Panel Mount	Cat5e	Gold	8p8c (RJ45) Jack	Copper Alloy Nickel Plated	IP67 - Dust Tight Waterproof	50 µin	1.27 µm	85 °C	-40 °C	Circular Threaded Coupling	Front Side Nut Rear Side Nut	Shielded	Coupler	Polybutylene Terephthalate (PBT) Glass Filled	Jack 8p8c (RJ45)
Amphenol CONEC 17-100950																		USB - A Plug	Cover
Amphenol CONEC 17-100904		Free Hanging (In-Line)										Molded Plugs		Unshielded						Round Cable	Blue	0.83 ft	254 mm	8p8c (RJ45 Ethernet)	Plug to Plug	Cat5e
Amphenol CONEC 17-100984		Free Hanging (In-Line)										Circular Threaded Coupling		Shielded						Round Cable	Black			8p8c (RJ45 Ethernet)	Plug to Plug	Cat5e Industrial Environments - IP67
Amphenol CONEC 17-100944	Phosphor Bronze		Cat5e	Gold			IP67 - Dust Tight Waterproof	50 µin	1.27 µm			Circular Threaded Coupling		Shielded		Polycarbonate (PC)				Round Cable Solid Stranded Wires	Translucent - Clear	2.335 in	59.3 mm	8p8c (RJ45 Ethernet)	Plug		Copper Alloy	IDC	100 V	24 AWG	1.2 A
Amphenol CONEC 17-100964		Free Hanging (In-Line)										Circular Threaded Coupling		Shielded						Round Cable	Black			8p8c (RJ45 Ethernet)	Plug to Plug	Cat5e Industrial Environments - IP67						2 m	6.56 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.28
		10	$ 20.27
		25	$ 18.35
		50	$ 17.06
		100	$ 15.89
		250	$ 14.51
		500	$ 13.58
Newark	Each	1	$ 22.41
		5	$ 21.23
		10	$ 20.17
		25	$ 19.23
		50	$ 18.28
		100	$ 17.46

Description

General part information

17-1009 Series

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat5e IDC

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
