XCZU6CG-2FFVC900I

Active

AMD / Xilinx

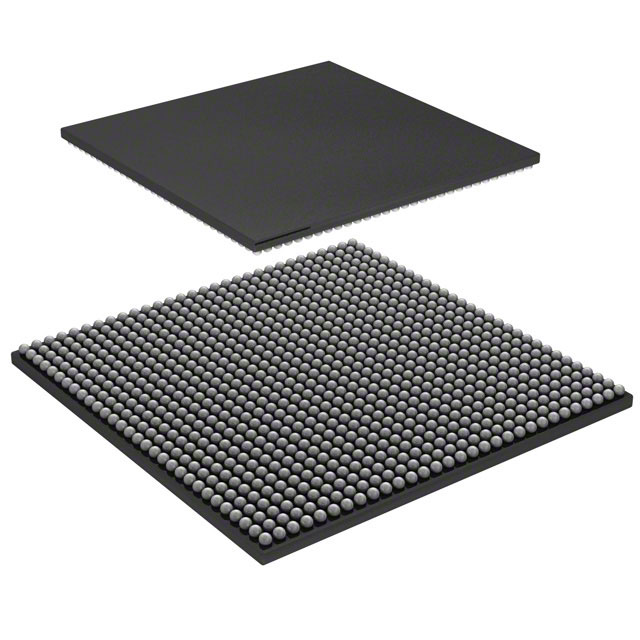

IC SOC CORTEX-A53 900FCBGA

XCZU6CG-2FFVC900I

Active

AMD / Xilinx

IC SOC CORTEX-A53 900FCBGA

Description Specifications Series Pricing CAD Documents

Description

General part information

XCZU6 Series

Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ System On Chip (SOC) IC Zynq® UltraScale+™ MPSoC CG Zynq®UltraScale+™ FPGA, 469K+ Logic Cells 533MHz, 1.3GHz 900-FCBGA (31x31)

Technical Specifications

Parameters and characteristics for this part

Specification	XCZU6CG-2FFVC900I

Architecture	FPGA, MCU
Connectivity	USART, SD, USB OTG, CANbus, MMC, EBI, UART, Ethernet, SPI, I2C, SDIO, EMI
Core Processor	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™
Number of I/O	204
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	FCBGA, 900-BBGA
Package Length	31 mm
Package Name	900-FCBGA
Package Width	31 mm
Peripherals	WDT, DMA
Primary Attributes	Zynq®UltraScale+™ FPGA, 469K+ Logic Cells
RAM Size	256 KB
Speed	533 MHz, 1.3 GHz

XCZU6 Series

Part	Number of I/O	RAM Size	Operating Temperature (Max)	Operating Temperature (Min)	Core Processor	Package Width	Package Name	Package Length	Connectivity	Package / Case	Primary Attributes	Architecture	Speed	Peripherals
AMD / Xilinx XCZU6CG-1FFVC900E	204	256 KB	100 °C	0 °C	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	31 mm	900-FCBGA	31 mm	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	900-BBGA FCBGA	469K+ Logic Cells Zynq®UltraScale+™ FPGA	FPGA MCU	1.2 GHz 500 MHz	DMA WDT
AMD / Xilinx XCZU6CG-L2FFVC900E	204	256 KB	100 °C	0 °C	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	31 mm	900-FCBGA	31 mm	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	900-BBGA FCBGA	469K+ Logic Cells Zynq®UltraScale+™ FPGA	FPGA MCU	1.3 GHz 533 MHz	DMA WDT
AMD / Xilinx XCZU6EG-L1FFVC900I	204	256 KB	100 °C	-40 °C	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	31 mm	900-FCBGA	31 mm	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	900-BBGA FCBGA	469K+ Logic Cells Zynq®UltraScale+™ FPGA	FPGA MCU	1.2 GHz 500 MHz 600 MHz	DMA WDT
AMD / Xilinx XCZU6CG-2FFVC900I	204	256 KB	100 °C	-40 °C	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	31 mm	900-FCBGA	31 mm	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	900-BBGA FCBGA	469K+ Logic Cells Zynq®UltraScale+™ FPGA	FPGA MCU	1.3 GHz 533 MHz	DMA WDT
AMD / Xilinx XCZU6CG-2FFVC900E	204	256 KB	100 °C	0 °C	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	31 mm	900-FCBGA	31 mm	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	900-BBGA FCBGA	469K+ Logic Cells Zynq®UltraScale+™ FPGA	FPGA MCU	1.3 GHz 533 MHz	DMA WDT
AMD / Xilinx XCZU6EG-1FFVC900E	204	256 KB	100 °C	0 °C	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	31 mm	900-FCBGA	31 mm	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	900-BBGA FCBGA	469K+ Logic Cells Zynq®UltraScale+™ FPGA	FPGA MCU	1.2 GHz 500 MHz 600 MHz	DMA WDT

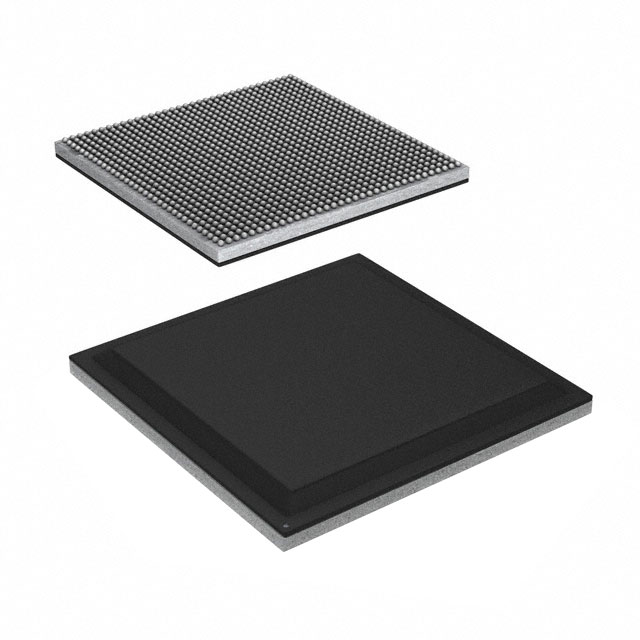

AMD / Xilinx XCZU6CG-1FFVB1156E	328	256 KB	100 °C	0 °C	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	35 mm	1156-FCBGA	35 mm	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	1156-BBGA FCBGA	469K+ Logic Cells Zynq®UltraScale+™ FPGA	FPGA MCU	1.2 GHz 500 MHz	DMA WDT
AMD / Xilinx XCZU6CG-2FFVB1156I	328	256 KB	100 °C	-40 °C	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	35 mm	1156-FCBGA	35 mm	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	1156-BBGA FCBGA	469K+ Logic Cells Zynq®UltraScale+™ FPGA	FPGA MCU	1.3 GHz 533 MHz	DMA WDT
AMD / Xilinx XCZU6CG-L1FFVC900I	204	256 KB	100 °C	-40 °C	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	31 mm	900-FCBGA	31 mm	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	900-BBGA FCBGA	469K+ Logic Cells Zynq®UltraScale+™ FPGA	FPGA MCU	1.2 GHz 500 MHz	DMA WDT
AMD / Xilinx XCZU6EG-2FFVB1156I	328	256 KB	100 °C	-40 °C	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	35 mm	1156-FCBGA	35 mm	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	1156-BBGA FCBGA	469K+ Logic Cells Zynq®UltraScale+™ FPGA	FPGA MCU	1.3 GHz 533 MHz 600 MHz	DMA WDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
