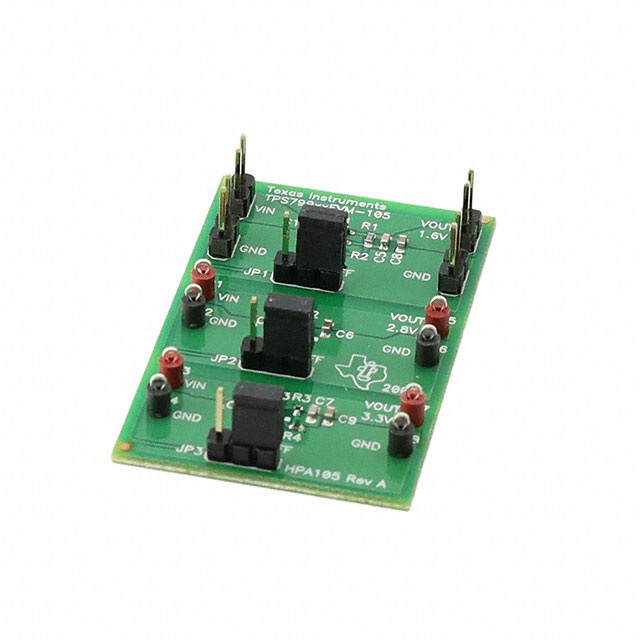

Specification	TPS799XXEVM-105

Board Type	Fully Populated
Channels per IC (Count)	1
Channels per IC (Single)	1
Channels per IC (Type)	Single
Contents	Board
Current - Output (Value 1)	200 mA
Current - Output (Value 2)	200 mA
Current - Output (Value 3)	200 mA
Regulator Type	Adjustable, Positive Fixed
Supplied Contents	Board(s)
Utilized IC / Part	TPS79901, TPS79928
Voltage - Input (Maximum)	6.5 V
Voltage - Input (Minimum)	2.7 V
Voltage - Output	2.8 V, 3.3 V, 1.6 V

TPS799 Series

Part	Package Name	Voltage Dropout (Max)	Voltage - Output (Min/Fixed)	Output Configuration	PSRR (Minimum)	PSRR (Maximum)	Voltage - Input (Max)	Number of Regulators	Package / Case	Current - Quiescent (Iq)	Control Features	Output Type	Protection Features	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output	Package Width	Package Length	Grade	Qualification
Texas Instruments TPS79933YZUR	5-DSBGA	0.16 V	3.3 V	Positive	38 dB	70 dB	6.5 V	1	5-UFBGA DSBGA	60 µA	Enable	Fixed	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	125 °C	-40 °C	200 mA
Texas Instruments TPS79933DDCRG4	SOT-23-THIN	0.16 V	3.3 V	Positive	38 dB	70 dB	6.5 V	1	SOT-23-5 Thin TSOT-23-5	60 µA	Enable	Fixed	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	125 °C	-40 °C	200 mA
Texas Instruments TPS79933DRVRG4	6-WSON	0.16 V	3.3 V	Positive	38 dB	70 dB	6.5 V	1	6-WDFN Exposed Pad	60 µA	Enable	Fixed	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	125 °C	-40 °C	200 mA	2 mm	2 mm
Texas Instruments TPS79933DRVTG4	6-WSON	0.16 V	3.3 V	Positive	38 dB	70 dB	6.5 V	1	6-WDFN Exposed Pad	60 µA	Enable	Fixed	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	125 °C	-40 °C	200 mA	2 mm	2 mm
Texas Instruments TPS79933DRVR	6-WSON	0.16 V	3.3 V	Positive	38 dB	70 dB	6.5 V	1	6-WDFN Exposed Pad	60 µA	Enable	Fixed	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	125 °C	-40 °C	200 mA	2 mm	2 mm
Texas Instruments TPS79933DRVT	6-WSON	0.16 V	3.3 V	Positive	38 dB	70 dB	6.5 V	1	6-WDFN Exposed Pad	60 µA	Enable	Fixed	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	125 °C	-40 °C	200 mA	2 mm	2 mm
Texas Instruments TPS79933DDCR	SOT-23-THIN	0.16 V	3.3 V	Positive	38 dB	70 dB	6.5 V	1	SOT-23-5 Thin TSOT-23-5	60 µA	Enable	Fixed	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	125 °C	-40 °C	200 mA
Texas Instruments TPS79933DDCTG4	SOT-23-THIN	0.16 V	3.3 V	Positive	38 dB	70 dB	6.5 V	1	SOT-23-5 Thin TSOT-23-5	60 µA	Enable	Fixed	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	125 °C	-40 °C	200 mA
Texas Instruments TPS79933DDCT	SOT-23-THIN	0.16 V	3.3 V	Positive	38 dB	70 dB	6.5 V	1	SOT-23-5 Thin TSOT-23-5	60 µA	Enable	Fixed	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	125 °C	-40 °C	200 mA
Texas Instruments TPS79933QDDCRQ1	SOT-23-THIN	0.16 V	3.3 V	Positive	38 dB	70 dB	6.5 V	1	SOT-23-5 Thin TSOT-23-5	60 µA	Enable	Fixed	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	Surface Mount	125 °C	-40 °C	200 mA			Automotive	AEC-Q100
