Part	Tolerance	Temperature Coefficient	Resistance	Power (Watts)	Power (Watts) Options	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length	Termination Style	Resistive Material	Number of Turns	Mounting Type	Adjustment Type

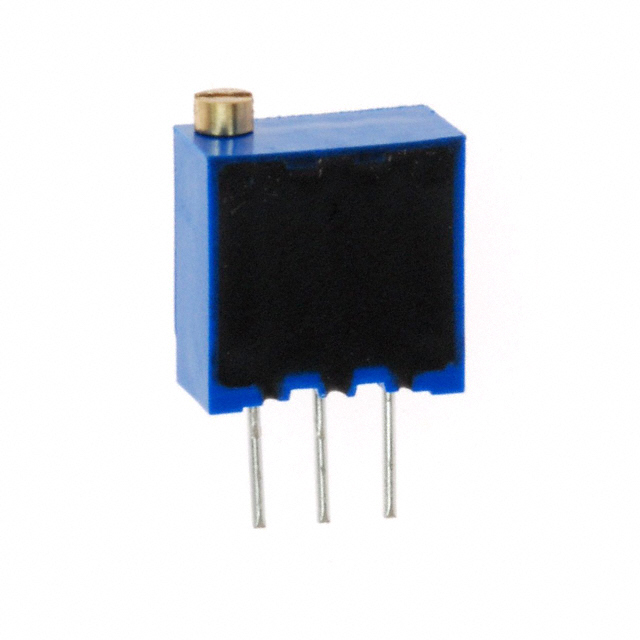

Vishay Dale T93YA472JT20
Vishay Dale T93YA204KT20	10 %	100 ppm/°C	200 kOhm	500 mW	1/2W	0.197 in	Rectangular	0.382 in	PC Pins	Cermet	21 turns	Through Hole	Top Adjustment

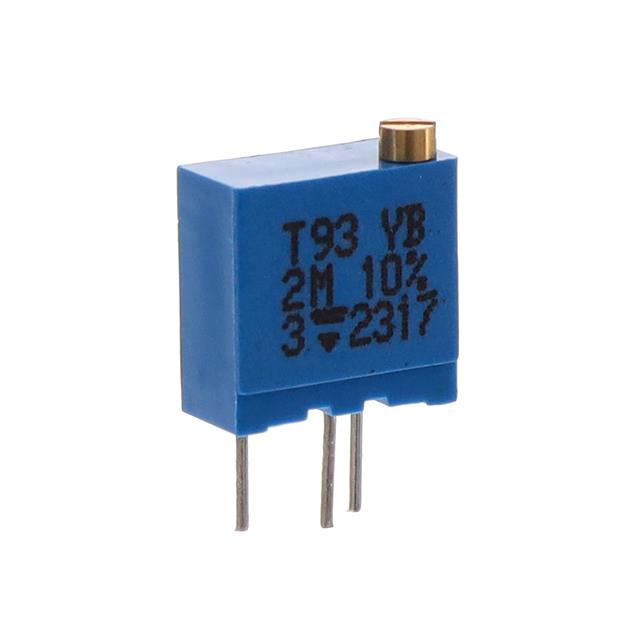

Vishay Dale T93YB205KT20	10 %	100 ppm/°C	2 MOhm	500 mW	1/2W	0.197 in	Rectangular	0.382 in	PC Pins	Cermet	23 turns	Through Hole	Top Adjustment
Vishay Dale T93XB205KT20
Vishay Dale T93YB203KT20	10 %	100 ppm/°C	20 kOhm	500 mW	1/2W	0.197 in	Rectangular	0.382 in	PC Pins	Cermet	21 turns	Through Hole	Top Adjustment
Vishay Dale T93XB473KT20
Vishay Dale T93Z223KT20
Vishay Dale T93YA473KT20	10 %	100 ppm/°C	47 kOhm	500 mW	1/2W	0.197 in	Rectangular	0.382 in	PC Pins	Cermet	23 turns	Through Hole	Top Adjustment
Vishay Dale T93YB201KT20	10 %	100 ppm/°C	200 Ohm	500 mW	1/2W	0.197 in	Rectangular	0.382 in	PC Pins	Cermet	21 turns	Through Hole	Top Adjustment
Vishay Dale T93YA202KT20	10 %	100 ppm/°C	2 kOhm	500 mW	1/2W	0.197 in	Rectangular	0.382 in	PC Pins	Cermet	21 turns	Through Hole	Top Adjustment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
