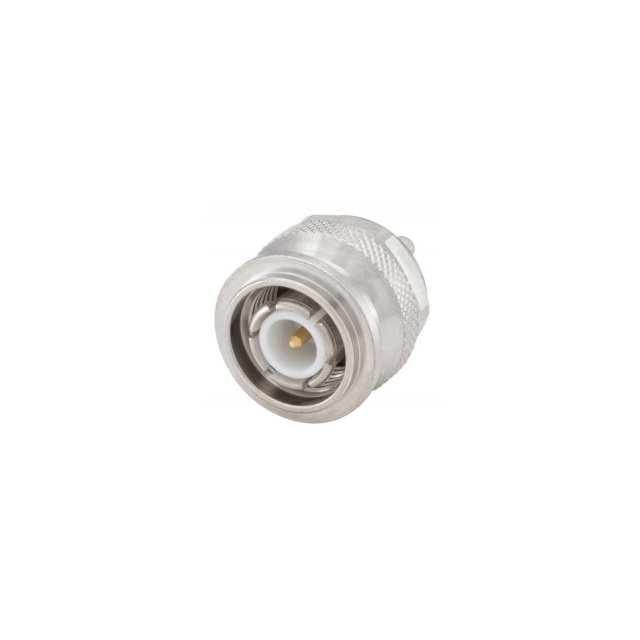

Specification	56S107-803N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-316
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	10 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-45 °C
Shield Termination	Crimp
Voltage Rating	500 V

56S107 Series

Part	Dielectric Material	Voltage Rating	Center Contact Plating	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Body Finish	Housing Color	Cable Group	Frequency - Max	Contact Termination	Connector Type	Impedance	Fastening Type	Number of Ports	Mounting Type	Center Contact Material	Connector Style	Shield Termination	Includes Total Count	Includes	Cable Group Current Rating
Rosenberger 56S107-803N5	Polytetrafluoroethylene (PTFE)	500 V	Gold	500 cycles	-45 °C	85 °C	Brass	White Bronze	Silver	RG-316	10 GHz	Crimp	Male Pin Plug	50 Ohm	Threaded	1	Free Hanging (In-Line)	Bronze	TNC	Crimp
Rosenberger 56S107-106N5	Polytetrafluoroethylene (PTFE)	500 V	Gold	500 cycles	-65 °C	165 °C	Brass	White Bronze	Silver	141 RG-58C	10 GHz	Crimp	Male Pin Plug	50 Ohm	Threaded	1	Free Hanging (In-Line)	Brass	TNC	Crimp	3 pcs	Connector Contact Ferrule
Rosenberger 56S107-802N5	Polytetrafluoroethylene (PTFE)	500 V	Gold	500 cycles	-45 °C	85 °C	Brass	White Bronze	Silver	316 RG-174A	10 GHz	Crimp	Male Pin Plug	50 Ohm	Threaded	1	Free Hanging (In-Line)	Bronze	TNC	Crimp	3 pcs	Connector Contact Ferrule	188 A
