213905-1

Active

TE Connectivity AMP Connectors

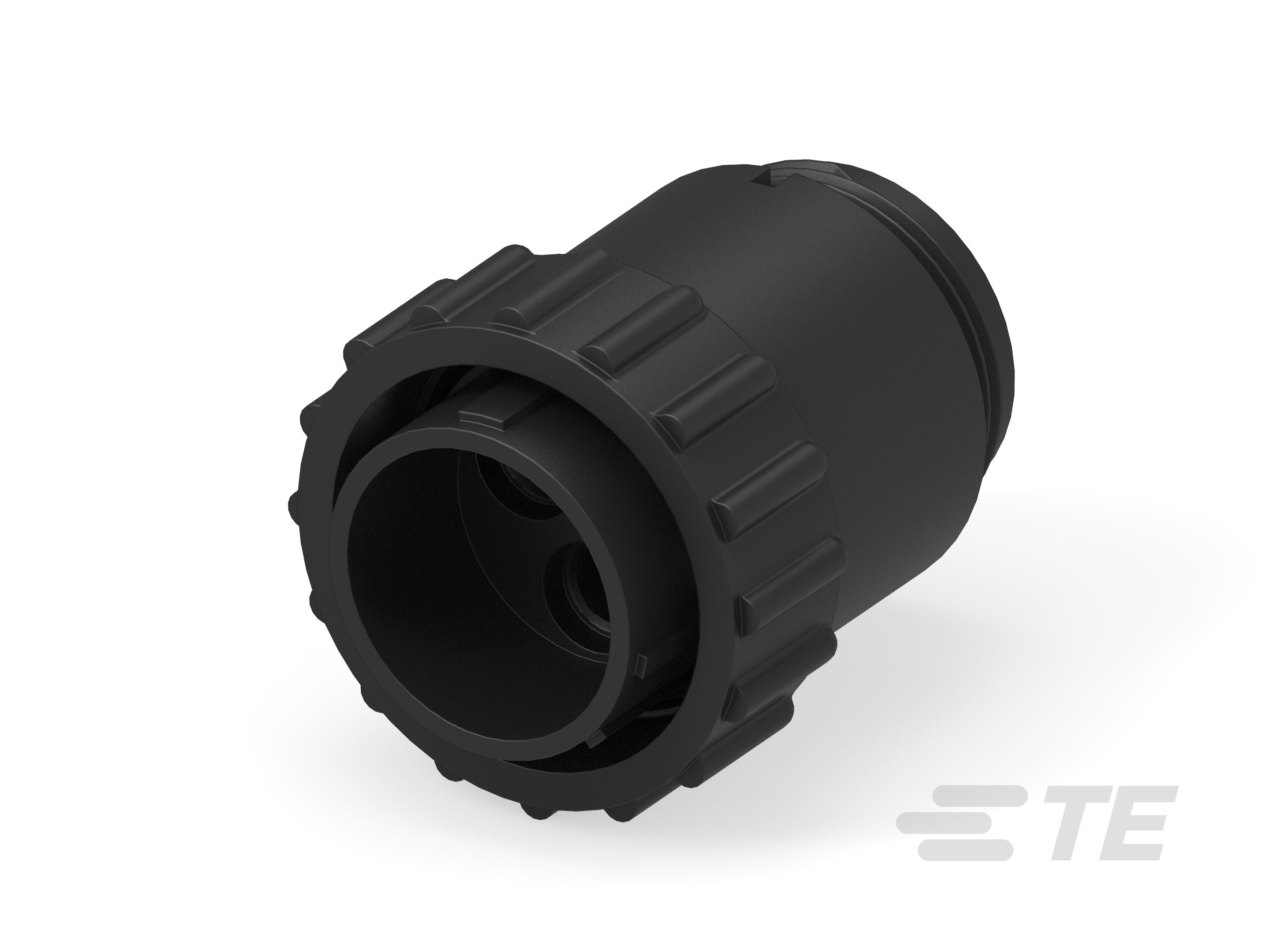

CIRCULAR CONNECTOR, CPC SERIES 5, CABLE MOUNT PLUG, 3 CONTACTS, NYLON (POLYAMIDE) BODY

Find alt

Alpha

213905-1

Active

TE Connectivity AMP Connectors

CIRCULAR CONNECTOR, CPC SERIES 5, CABLE MOUNT PLUG, 3 CONTACTS, NYLON (POLYAMIDE) BODY

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Circular Plastic Connectors Series 5 Series

The 213905-1 is a 3-position straight Free-hanging Plug Assembly with pin type contacts, UL94V-0-rated black glass-filled nylon housing and 17-3 insert arrangement. The reverse sex sealed circular plastic connector has keyed mating alignment, threaded coupling mating retention and interfacial seal. The sealed CPC connector is the latest additions to the growing family of AMP circular plastic connectors. The sealed CPC connector was developed as part of the series 5 product line, specifically to meet the increasing demand for an economical environmentally sealed connector. The sealed CPC connector incorporated the latest technology in thermoplastic design and use the new AMP POWERBAND precision formed high current contact.

Technical Specifications

Parameters and characteristics for this part

Specification	213905-1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size Options	8 Power
Contact Type	Crimp
Fastening Type	Threaded
Features	Coupling Nut
Housing Color	Black
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Position Types	Power
Shell Material	Glass Filled, Nylon 6/6, Polyamide (PA66)
Shell Size - Insert Length	17 mm
Shell Size - Insert Width	3 mm
Shielding	Unshielded
Type	For Male Pins

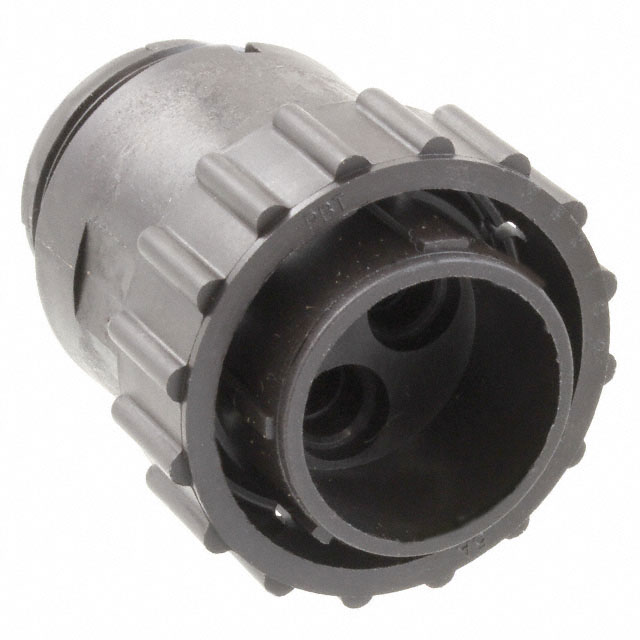

Circular Plastic Connectors Series 5 Series

Part	Material Flammability Rating	Shell Size - Insert Width	Shell Size - Insert Length	Shell Material	Connector Type	Fastening Type	Contact Size Options	Housing Color	Type	Shielding	Orientation	Mounting Type	Number of Positions	Position Types	Contact Type	Ingress Protection Description	Ingress Protection IP Rating	Contact Shape	Note	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Features	Contact Finish Thickness	Contact Finish	Contact Material	Pin or Socket	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Termination	Mounting Feature
TE Connectivity AMP Connectors 213890-2	UL94 V-0	3 mm	17 mm	Nylon Polyamide (PA)	Receptacle Housing	Threaded	8 Power	Black	For Female Sockets	Unshielded	Keyed	Free Hanging (In-Line)	3	Power	Crimp	Dust Tight Water Resistant Waterproof	IP65 IP67	Circular	Contacts Not Included	-55 °C	105 °C	Thermoplastic
TE Connectivity AMP Connectors 1977889-1	UL94 V-0	3 mm	17 mm	Nylon Polyamide (PA)	Plug Housing	Threaded	8 Power	Black	For Male Pins	Unshielded	Keyed	Free Hanging (In-Line)	3	Power	Crimp	Dust Tight Water Resistant Waterproof	IP65 IP67	Circular	Contacts Not Included	-55 °C	105 °C	Thermoplastic	Coupling Nut

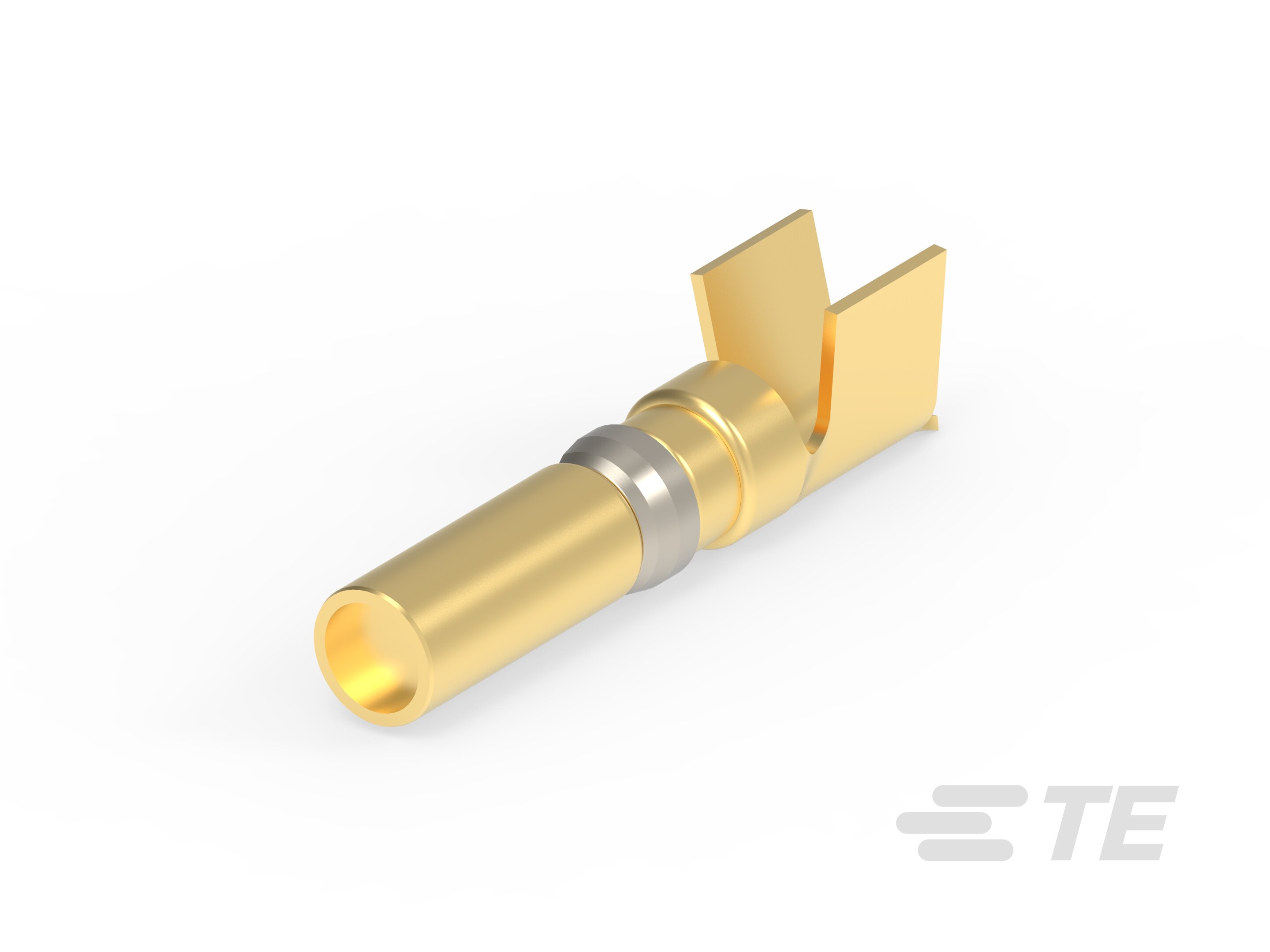

TE Connectivity AMP Connectors 213843-2									Power Stamped															15 µin	Gold	Copper	Socket	8 AWG	10 AWG	Crimp
TE Connectivity AMP Connectors 213841-3									Power Stamped															200 µin	Silver	Copper	Pin	8 AWG	10 AWG	Crimp
TE Connectivity AMP Connectors 1977888-1	UL94 V-0	3 mm	17 mm	Nylon Polyamide (PA)	Receptacle Housing	Threaded	8 Power	Black	For Female Sockets	Unshielded	Keyed	Panel Mount	3	Power	Crimp	Dust Tight Water Resistant Waterproof	IP65 IP67	Circular	Contacts Not Included	-55 °C	105 °C	Thermoplastic									Flange
TE Connectivity AMP Connectors 213905-1	UL94 V-0	3 mm	17 mm	Glass Filled Nylon 6/6 Polyamide (PA66)	Plug Housing	Threaded	8 Power	Black	For Male Pins	Unshielded	Keyed	Free Hanging (In-Line)	3	Power	Crimp	Dust Tight Water Resistant Waterproof	IP65 IP67	Circular	Contacts Not Included	-55 °C	105 °C	Thermoplastic	Coupling Nut
TE Connectivity AMP Connectors 213847-4									Power Stamped															30 µin	Gold PdNi +Gold	Copper	Socket	12 AWG	14 AWG	Crimp

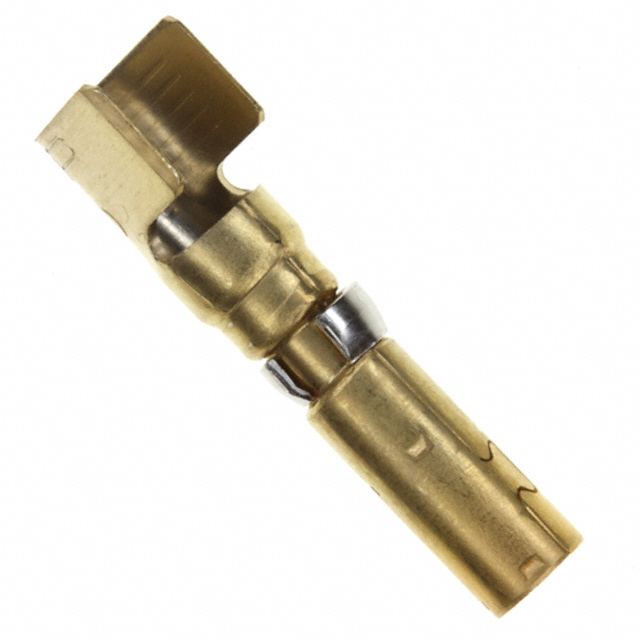

TE Connectivity AMP Connectors 213843-4									Power Stamped															15 µin	Gold	Copper	Socket	8 AWG	10 AWG	Crimp
TE Connectivity AMP Connectors 213841-8									Power Stamped															30 µin	Gold	Copper	Pin	8 AWG	10 AWG	Crimp
