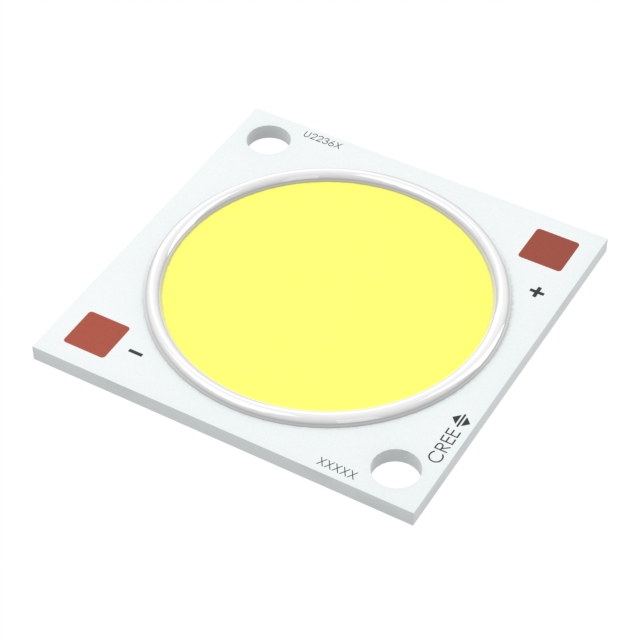

CMU2236-0000-000N0U0A40G

Active

Cree LED

LED XLAMP NEUTRAL WHT 4000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMU2236-0000-000N0U0A40G

Active

Cree LED

LED XLAMP NEUTRAL WHT 4000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU2236-0000-000N0U0A40G

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	90
Current - Max [Max]	2.64 A
Current - Test	990 mA
Flux @ 85°C, Current - Test	4782 lm
Height - Seated (Max) [Max]	0.067 in
Height - Seated (Max) [Max]	1.7 mm
Lumens/Watt @ Current - Test	143 lm/W
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	1.102 in
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Size / Dimension [y]	1.102 in
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU2236 Series

Part	Current - Max [Max]	Lumens/Watt @ Current - Test	Lens Type	Color	Viewing Angle	Light Emitting Surface (LES) [diameter]	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Height [z]	Configuration	Voltage - Forward (Vf) (Typ)	Type	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	CCT (K)	Package / Case	Flux @ 85°C, Current - Test	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]
Cree LED CMU2236-R040-000N0U0A30Q	2.64 A	140 lm/W	Flat	Warm White	115 °	22 mm	85 °C	28 mm	28 mm	990 mA	1.5 mm	Square	33.7 V	Chip On Board (COB)	4618 lm	90	3000 K
Cree LED CMU2236-R040-000N0U0A35H	2.64 A	145 lm/W	Flat	Warm White	115 °	22 mm	85 °C	28 mm	28 mm	990 mA	1.5 mm	Square	33.7 V	Chip On Board (COB)	4777 lm	90	3500 K
Cree LED CMU2236-0000-000N0H0A30G	2.64 A			Warm White	115 °			1.102 in	1.102 in	990 mA			33.7 V			80	3000 K	2-SMD No Lead	5419 lm	Surface Mount Right Angle	0.067 in	1.7 mm	28 mm	28 mm
Cree LED CMU2236-0000-000N0U0A35H	2.64 A	143 lm/W		Warm White	115 °			1.102 in	1.102 in	990 mA			33.7 V			90	3500 K	2-SMD No Lead	4777 lm	Surface Mount Right Angle	0.067 in	1.7 mm	28 mm	28 mm
Cree LED CMU2236-0000-000N0U0A40G	2.64 A	143 lm/W		Neutral White	115 °			1.102 in	1.102 in	990 mA			33.7 V			90	4000 K	2-SMD No Lead	4782 lm	Surface Mount Right Angle	0.067 in	1.7 mm	28 mm	28 mm
Cree LED CMU2236-0000-000N0H0A40H	2.64 A			Neutral White	115 °			1.102 in	1.102 in	990 mA			33.7 V			80	4000 K	2-SMD No Lead	5557 lm	Surface Mount Right Angle	0.067 in	1.7 mm	28 mm	28 mm
Cree LED CMU2236-0000-000N0U0A30H	2.64 A	141 lm/W		Warm White	115 °			1.102 in	1.102 in	990 mA			33.7 V			90	3000 K	2-SMD No Lead	4712 lm	Surface Mount Right Angle	0.067 in	1.7 mm	28 mm	28 mm
Cree LED CMU2236-R040-00PN0U0A50G	2.64 A		Flat	Cool White	115 °	22 mm	85 °C	28 mm	28 mm	990 mA	1.5 mm	Square	33.7 V	Chip On Board (COB)		90	5000 K
Cree LED CMU2236-R040-00PN0U0A40H	2.64 A		Flat	Neutral White	115 °	22 mm	85 °C	28 mm	28 mm	990 mA	1.5 mm	Square	33.7 V	Chip On Board (COB)		90	4000 K
Cree LED CMU2236-R040-000N0U0A27G	2.64 A	137 lm/W	Flat	Warm White	115 °	22 mm	85 °C	28 mm	28 mm	990 mA	1.5 mm	Square	33.7 V	Chip On Board (COB)	4530 lm	90	2700 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.06
		10	$ 8.61
		50	$ 8.36
		100	$ 7.70
		200	$ 7.00
		500	$ 6.56
		1000	$ 6.04

Description

General part information

CMU2236 Series

LED Lighting XLamp® CMU2236 White, Neutral 4000K 3-Step MacAdam Ellipse 33.7V 990mA 115° 2-SMD, No Lead
