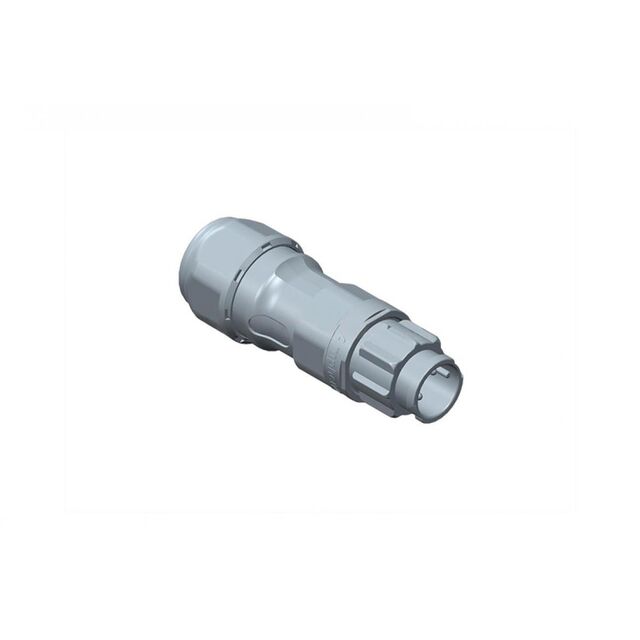

BB-02BMMB-QL8SPP

Active

Amphenol LTW

XLOK, B-10A, 02P, CABLE W/O SR

Search across all available documentation for this part.

Active

Amphenol LTW

XLOK, B-10A, 02P, CABLE W/O SR

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Orientation	Insert Material	Features	Ingress Protection	Connector Type	Fastening Type	Color	Voltage Rating	Primary Material	Current Rating (Amps)	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Contact Finish - Mating	Mounting Type	Shielding	Shell Size - Insert	Termination	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
Amphenol LTW BB-02BMMB-QL8SPP	Copper Alloy	Keyed	Thermoplastic	Backshell	IP68 - Dust Tight Waterproof	Male Pins Plug	Bayonet Lock	Black	300 VDC	Plastic	10 A	0.236 in	6 mm	5 mm	0.197 in	Silver	Free Hanging (In-Line)	Unshielded	B	Screw	Thermoplastic	-40 °C	105 ░C	2
Amphenol LTW BB-02BMMB-QL8LPP	Copper Alloy	Keyed	Thermoplastic	Backshell	IP68 - Dust Tight Waterproof	Male Pins Plug	Bayonet Lock	Black	300 VDC	Plastic	10 A	0.394 in	10 mm	8 mm	0.315 in	Silver	Free Hanging (In-Line)	Unshielded	B	Screw	Thermoplastic	-40 °C	105 ░C	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 9.03

General part information

2 Position Circular Connector Plug, Male Pins Screw

Technical documentation and resources

No documents available
