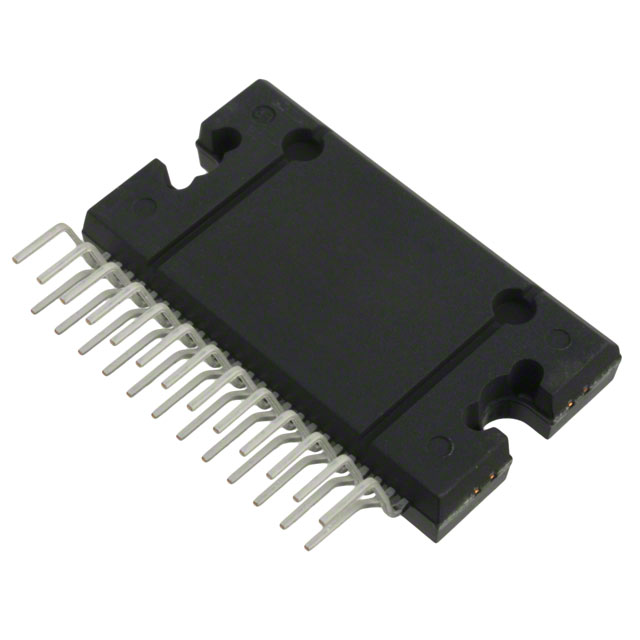

TB62213AHQ

Obsolete

Toshiba Semiconductor and Storage

IC MOTOR DRIVER BIPLR 25V 25HZIP

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IC MOTOR DRIVER BIPLR 25V 25HZIP

Technical Specifications

Parameters and characteristics for this part

Specification	TB62213AHQ

Applications	General Purpose
Current - Output	2.4 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Bipolar
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (4)
Package / Case	25-SIP Formed Leads
Step Resolution	1/4, 1/2, 1
Supplier Device Package	25-HZIP
Technology	Power MOSFET
Voltage - Load [Max]	38 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Technology	Applications	Motor Type - Stepper	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Step Resolution	Function	Current - Output	Interface	Voltage - Load [Max]	Voltage - Load [Min]	Output Configuration	Package / Case
Toshiba Semiconductor and Storage TB62213AHQ	Power MOSFET	General Purpose	Bipolar	Through Hole	4.75 V	5.25 V	150 °C	-20 °C	25-SIP Formed Leads	25-HZIP	1 1/2 1/4	Driver - Fully Integrated Control and Power Stage	2.4 A	Parallel	38 V	10 V	Half Bridge (4)
Toshiba Semiconductor and Storage TB62213AFNG,C8,EL	Power MOSFET	General Purpose	Bipolar	Surface Mount	4.75 V	5.25 V	150 °C	-20 °C	48-TFSOP Exposed Pad	48-HTSSOP	1 1/2 1/4	Driver - Fully Integrated Control and Power Stage	2.4 A	Parallel	38 V	10 V	Half Bridge (4)	0.24 in 6.1 mm
Toshiba Semiconductor and Storage TB62213AFG,8,EL	Power MOSFET	General Purpose	Bipolar	Surface Mount	4.75 V	5.25 V	150 °C	-20 °C		28-HSOP	1 1/2 1/4	Driver - Fully Integrated Control and Power Stage	2.4 A	Parallel	38 V	10 V	Half Bridge (4)
Toshiba Semiconductor and Storage TB62213AFTG,8,EL	Power MOSFET	General Purpose	Bipolar	Surface Mount	4.75 V	5.25 V	150 °C	-20 °C	48-VFQFN Exposed Pad	48-QFN (7x7)	1 1/2 1/4	Driver - Fully Integrated Control and Power Stage	2.4 A	Parallel	38 V	10 V	Half Bridge (4)
