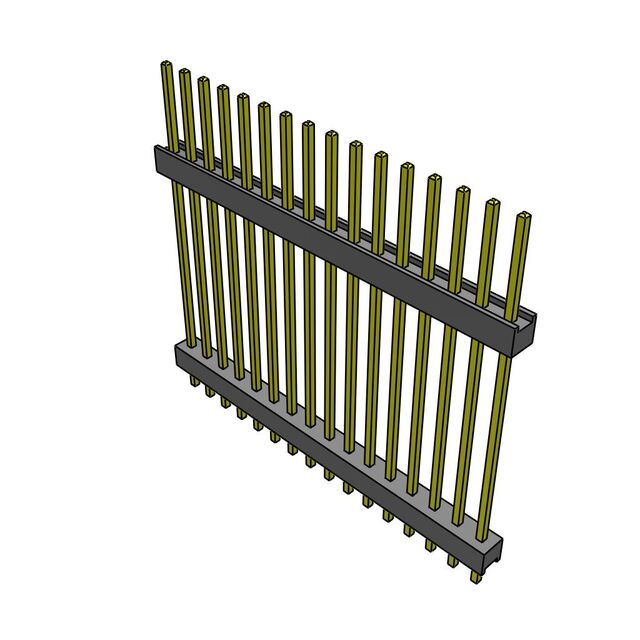

DW-16-14-G-S-1000

Active

Samtec Inc.

CONN HDR 16POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch Datasheet +1

DW-16-14-G-S-1000

Active

Samtec Inc.

CONN HDR 16POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-16-14-G-S-1000

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	1.43 in
Length - Overall Pin [x]	36.322 mm
Length - Post (Mating) [x]	0.32 in
Length - Post (Mating) [x]	8.128 mm
Length - Stack Height [x]	1 in
Length - Stack Height [x]	25.4 mm
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	16
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

DW-16-14 Series

Part	Termination	Mounting Type	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail [x]	Length - Tail [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Positions	Contact Finish - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Number of Rows	Length - Stack Height [z]	Length - Stack Height [z]	Row Spacing [x]	Row Spacing
Samtec Inc. DW-16-14-G-S-1000	Solder	Through Hole	2.54 mm	0.1 in	1.43 in	36.322 mm	0.11 in	2.794 mm	0.32 in	8.128 mm	16	Gold	1 in	25.4 mm	0.25 Ám	10 Áin	Black	1
Samtec Inc. DW-16-14-G-D-1024	Solder	Through Hole	2.54 mm	0.1 in	1.43 in	36.322 mm	0.11 in	2.794 mm	0.296 in	7.518 mm		Gold			0.25 Ám	10 Áin	Black	2	26.01 mm	1.024 in	0.1 in	2.54 mm
Samtec Inc. DW-16-14-S-D-935	Solder	Through Hole	2.54 mm	0.1 in	1.43 in	36.322 mm	0.11 in	2.794 mm	0.385 in	9.779 mm		Gold			0.76 µm	30 µin	Black	2	23.749 mm	0.935 in	0.1 in	2.54 mm
Samtec Inc. DW-16-14-F-D-200	Solder	Through Hole	2.54 mm	0.1 in	1.43 in	36.322 mm	0.11 in	2.794 mm	1.12 in	28.448 mm		Gold			0.076 Ám	3 Áin	Black	2			0.1 in	2.54 mm
Samtec Inc. DW-16-14-T-S-1130	Solder	Through Hole	2.54 mm	0.1 in	1.43 in	36.322 mm	0.11 in	2.794 mm	0.19 in	4.826 mm	16	Tin					Black	1	28.702 mm	1.13 in
Samtec Inc. DW-16-14-F-D-875-LL	Solder	Through Hole	2.54 mm	0.1 in	1.43 in	36.322 mm	0.11 in	2.794 mm	0.445 in	11.303 mm		Gold	0.875 in	22.225 mm	0.076 Ám	3 Áin	Black	2			0.1 in	2.54 mm
Samtec Inc. DW-16-14-T-S-1200	Solder	Through Hole	2.54 mm	0.1 in	1.43 in	36.322 mm	0.11 in	2.794 mm	0.12 in	3.048 mm	16	Tin	1.2 in	30.48 mm			Black	1
Samtec Inc. DW-16-14-G-S-1045	Solder	Through Hole	2.54 mm	0.1 in	1.43 in	36.322 mm	0.11 in	2.794 mm	0.275 in	6.985 mm	16	Gold	1.045 in	26.543 mm	0.25 Ám	10 Áin	Black	1
Samtec Inc. DW-16-14-F-S-200	Solder	Through Hole	2.54 mm	0.1 in	1.43 in	36.322 mm	0.11 in	2.794 mm	1.12 in	28.448 mm	16	Gold			0.076 Ám	3 Áin	Black	1
Samtec Inc. DW-16-14-T-S-1080	Solder	Through Hole	2.54 mm	0.1 in	1.43 in	36.322 mm	0.11 in	2.794 mm	0.24 in	6.096 mm	16	Tin					Black	1	27.432 mm	1.08 in
