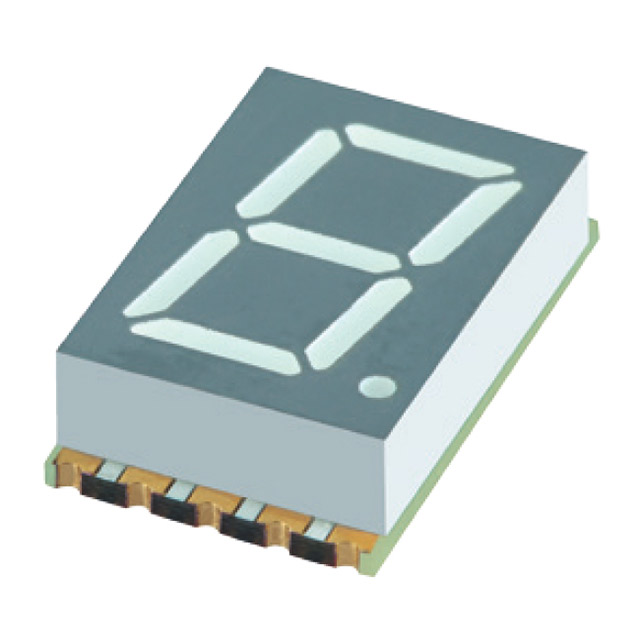

XZFBBA10A

Obsolete

SunLED

DISPLAY 7SEG 0.4" SGL BLUE 10SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XZFBBA10A

Obsolete

SunLED

DISPLAY 7SEG 0.4" SGL BLUE 10SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XZFBBA10A

Color	Blue
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Millicandela Rating	5.2 mcd
Number of Characters [custom]	1
Package / Case	10-SMD, No Lead
Power Dissipation (Max) [Max]	120 mW
Size / Dimension [x]	15 mm
Size / Dimension [x]	0.591 in
Size / Dimension [y]	0.358 in
Size / Dimension [y]	9.1 mm
Size / Dimension [z]	3.75 mm
Size / Dimension [z]	0.148 in
Voltage - Forward (Vf) (Typ)	3.05 V
Wavelength - Peak	468 nm

XZFBBA10 Series

Part	Power Dissipation (Max) [Max]	Number of Characters [custom]	Wavelength - Peak	Package / Case	Millicandela Rating	Display Type	Color	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size [custom]	Common Pin	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Current - Test
SunLED XZFBBA10A	120 mW	1	468 nm	10-SMD No Lead	5.2 mcd	7-Segment	Blue	3.05 V	10.16 mm	0.4 in	Common Anode	0.358 in	9.1 mm	15 mm	3.75 mm	0.148 in	0.591 in	10 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XZFBBA10 Series

Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Anode 3.05V 10mA 0.591" H x 0.358" W x 0.148" D (15.00mm x 9.10mm x 3.75mm) 10-SMD, No Lead
