837-016-556-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-016-556-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-016-556-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
837-016 Series
...
| Part | Pitch [x] | Pitch [x] | Mounting Type | Number of Positions | Termination | Number of Rows | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Card Type | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Color | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Material - Insulation | Flange Feature | Flange Feature | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Board Edge Straddle Mount | 16 | Solder | 2 | Gold | 125 °C | -40 °C | Female | Non Specified - Dual Edge | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 8 | 8 | 8 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Card Extender | 10 Áin | 0.25 Ám | Cantilever | Diallyl Phthalate (DAP) | |||
EDAC Inc. | 0.156 in | 3.96 mm | Board Edge Straddle Mount | 16 | Solder | 2 | Gold | 125 °C | -40 °C | Female | Non Specified - Dual Edge | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 8 | 8 | 8 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Card Extender | 10 Áin | 0.25 Ám | Cantilever | Diallyl Phthalate (DAP) | |||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | 16 | Solder | 2 | Gold | 125 °C | -40 °C | Female | Non Specified - Dual Edge | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 8 | 8 | 8 | 10 Áin | 0.25 Ám | Cantilever | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | 16 | Solder | 1 | Gold | 125 °C | -40 °C | Female | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 10 Áin | 0.25 Ám | Cantilever | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | 16 | |||||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole Right Angle | 16 | Solder | 1 | Gold | 125 °C | -40 °C | Female | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 10 Áin | 0.25 Ám | Cantilever | Diallyl Phthalate (DAP) | 16 | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | Board Edge Straddle Mount | 16 | Solder | 2 | Gold | 125 °C | -40 °C | Female | Non Specified - Dual Edge | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 8 | 8 | 8 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Card Extender | 10 Áin | 0.25 Ám | Cantilever | Diallyl Phthalate (DAP) | |||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | 16 | Wire Wrap | 1 | Gold | 125 °C | -40 °C | Female | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | 10 Áin | 0.25 Ám | Cantilever | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | 16 | |||||||
EDAC Inc. | 0.156 in | 3.96 mm | Board Edge Straddle Mount | 16 | Solder | 2 | Gold | 125 °C | -40 °C | Female | Non Specified - Dual Edge | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 8 | 8 | 8 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Card Extender | 10 Áin | 0.25 Ám | Cantilever | Diallyl Phthalate (DAP) | |||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | 16 | Solder Eyelet(s) | 2 | Gold | 125 °C | -40 °C | Female | Non Specified - Dual Edge | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 2 | 8 | 8 | 8 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 10 Áin | 0.25 Ám | Cantilever | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | 0.156 in | 3.96 mm | Through Hole | 16 | Wire Wrap | 1 | Gold | 125 °C | -40 °C | Female | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | 1 | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Cantilever | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-016 Series

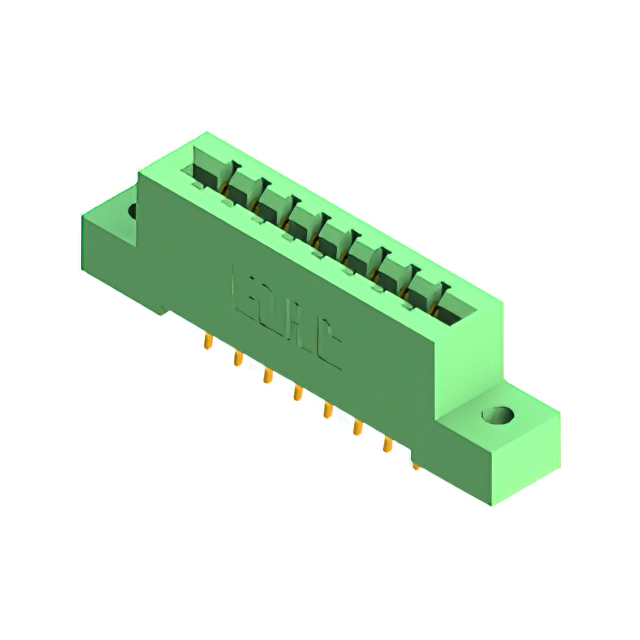

16 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
