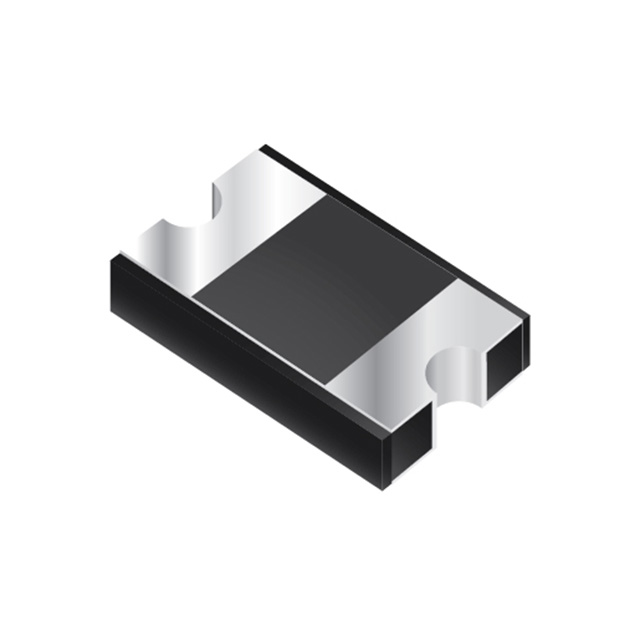

CD214B-B240R

Active

Bourns Inc.

DIODE SCHOTTKY 40V 2A 2SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

CD214B Series

Diode 40 V 2A Surface Mount 2-SMD

Technical Specifications

Parameters and characteristics for this part

Specification	CD214B-B240R

Capacitance	115 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage	200 µA
Mounting Type	Surface Mount
Operating Temperature - Junction (Max)	125 °C
Operating Temperature - Junction (Min)	-55 °C
Package / Case	No Lead, 2-SMD
Package Name	2-SMD
Speed - Fast Recovery (Maximum)	500 ns
Speed - Fast Recovery (Minimum)	200 mA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Voltage - Forward (Vf) (Max)	500 mV

CD214B Series

...

Part	Package Name	Package / Case	Voltage - DC Reverse (Vr) (Max)	Technology	Current - Average Rectified (Io)	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Capacitance	Current - Reverse Leakage	Mounting Type	Voltage - Forward (Vf) (Max)	Speed	Speed - Recovery Current	Speed - Recovery Time	Power - Peak Pulse	Operating Temperature (Min)	Operating Temperature (Max)	Current - Peak Pulse	Voltage - Reverse Standoff (Typ)	Applications	Unidirectional Channels	Voltage - Clamping (Max)	Voltage - Breakdown (Min)	Power Line Protection	Type	Bidirectional Channels
Bourns Inc. CD214B-R250	DO-214AA (SMB)	DO-214AA SMB	50 V	Standard	2 A	175 °C	-65 °C	500 ns	200 mA	25 pF	5 µA	Surface Mount	1 V 1 V
Bourns Inc. CD214B-R2600	DO-214AA (SMB)	DO-214AA SMB	600 V	Standard	2 A	170 °C	-65 °C		200 mA 500 ns	25 pF	5 µA	Surface Mount	1 V 1 V	Standard Recovery	200 mA 200 mA	500 ns
Bourns Inc. CD214B-T110ALF	DO-214AA (SMB)	DO-214AA SMB										Surface Mount					600 W	-55 °C	150 °C	3.4 A	110 V	General Purpose	1	177 V	122 V	No	Zener
Bourns Inc. CD214B-T17ALF	DO-214AA (SMB)	DO-214AA SMB										Surface Mount					600 W	-55 °C	150 °C	21.7 A	17 V	General Purpose	1	27.6 V	18.9 V	No	Zener
Bourns Inc. CD214B-S3K	2-SMD	2-SMD No Lead	800 V	Standard	3 A	175 °C	-65 °C		200 mA 500 ns	23 pF	5 µA	Surface Mount	1 V	Standard Recovery	200 mA 200 mA	500 ns
Bourns Inc. CD214B-B240R	2-SMD	2-SMD No Lead	40 V	Schottky	2 A	125 °C	-55 °C	500 ns	200 mA	115 pF	200 µA	Surface Mount	500 mV
Bourns Inc. CD214B-T22ALF	DO-214AA (SMB)	DO-214AA SMB										Surface Mount					600 W	-55 °C	150 °C	16.9 A	22 V	General Purpose	1	35.5 V	24.4 V	No	Zener
Bourns Inc. CD214B-T24CALF	DO-214AA (SMB)	DO-214AA SMB										Surface Mount					600 W	-55 °C	150 °C	15.4 A	24 V	General Purpose		38.9 V	26.7 V	No	Zener	1
Bourns Inc. CD214B-B330LF	DO-214AA (SMB)	DO-214AA SMB	30 V	Schottky	3 A	125 °C	-55 °C	500 ns	200 mA	250 pF	500 µA	Surface Mount	500 mV
Bourns Inc. CD214B-R2100	DO-214AA (SMB)	DO-214AA SMB	100 V	Standard	2 A	175 °C	-65 °C		200 mA 500 ns	25 pF	5 µA	Surface Mount	1 V 1 V	Standard Recovery	200 mA 200 mA	500 ns
