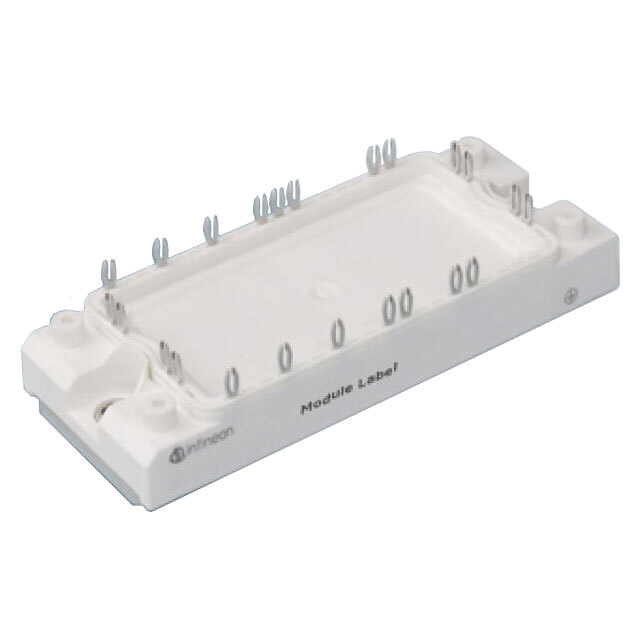

FS50R06YL4BOMA1

Obsolete

Infineon Technologies

IGBT MODULE 600V 55A 202W

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IGBT MODULE 600V 55A 202W

Technical Specifications

Parameters and characteristics for this part

Specification	FS50R06YL4BOMA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	55 A
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Standard
Input Capacitance (Cies) @ Vce	200 pF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max	202 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic [Max]	2.55 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Current - Collector (Ic) (Max) [Max]	Mounting Type	Vce(on) (Max) @ Vge, Ic [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	NTC Thermistor	Configuration	Input Capacitance (Cies) @ Vce	Power - Max
Infineon Technologies FS50R06YL4BOMA1	55 A	Chassis Mount	2.55 V	600 V	Standard	5 mA	125 °C	-40 °C	Module	Module		Three Phase Inverter	200 pF	202 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Three Phase Inverter 600 V 55 A 202 W Chassis Mount Module
