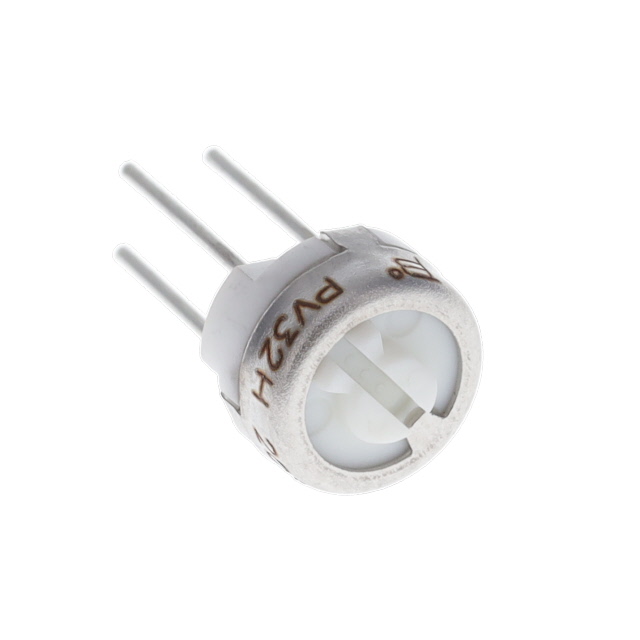

PV32H201A01B00

Active

Bourns Inc.

TRIMMER 200 OHM 0.5W PC PIN TOP

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 200 OHM 0.5W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Resistive Material	Power (Watts)	Power (Watts)	Resistance	Mounting Type	Number of Turns	Tolerance	Temperature Coefficient	Size / Dimension [diameter]	Size / Dimension [diameter]	Adjustment Type
Bourns Inc. PV32H201A01B00	PC Pins	Cermet	0.5 W	0.5 W	200 Ohms	Through Hole	1	20 %	100 ppm/°C	0.26 in	6.6 mm	Top Adjustment
Bourns Inc. PV32H253A01B00	PC Pins	Cermet	0.5 W	0.5 W	25 kOhms	Through Hole	1	20 %	100 ppm/°C	0.26 in	6.6 mm	Top Adjustment
Bourns Inc. PV32H104A01B00	PC Pins	Cermet	0.5 W	0.5 W	100 kOhms	Through Hole	1	20 %	100 ppm/°C	0.26 in	6.6 mm	Top Adjustment
Bourns Inc. PV32H202A01B00	PC Pins	Cermet	0.5 W	0.5 W	2 kOhms	Through Hole	1	20 %	100 ppm/°C	0.26 in	6.6 mm	Top Adjustment
Bourns Inc. PV32H104A02B00	PC Pins	Cermet	0.5 W	0.5 W	100 kOhms	Through Hole	1	10 %	100 ppm/°C	0.26 in	6.6 mm	Top Adjustment
Bourns Inc. PV32H254A02B00	PC Pins	Cermet	0.5 W	0.5 W	250 kOhms	Through Hole	1	10 %	100 ppm/°C	0.26 in	6.6 mm	Top Adjustment
Bourns Inc. PV32H105A01B00	PC Pins	Cermet	0.5 W	0.5 W	1 MOhms	Through Hole	1	20 %	100 ppm/°C	0.26 in	6.6 mm	Top Adjustment
Bourns Inc. PV32H503A01B00	PC Pins	Cermet	0.5 W	0.5 W	50 kOhms	Through Hole	1	20 %	100 ppm/°C	0.26 in	6.6 mm	Top Adjustment
Bourns Inc. PV32H501A01B00	PC Pins	Cermet	0.5 W	0.5 W	500 Ohms	Through Hole	1	20 %	100 ppm/°C	0.26 in	6.6 mm	Top Adjustment
Bourns Inc. PV32H101A01B00	PC Pins	Cermet	0.5 W	0.5 W	100 Ohms	Through Hole	1	20 %	100 ppm/°C	0.26 in	6.6 mm	Top Adjustment

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

200 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
