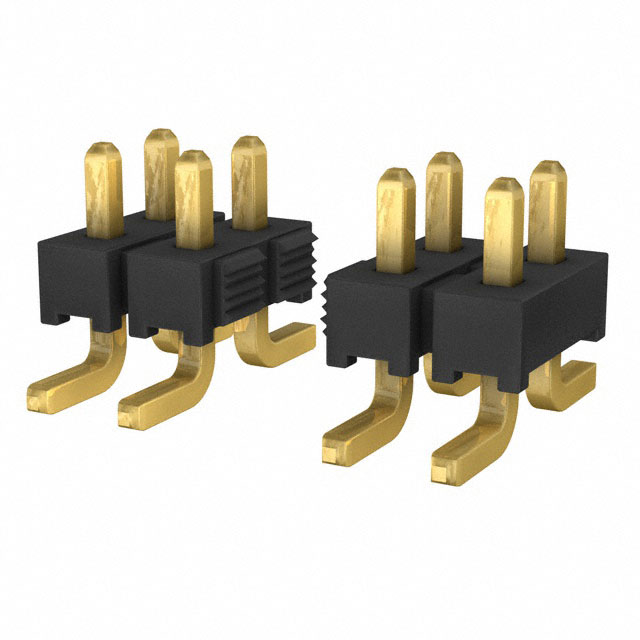

TMM-113-05-G-D-SM-P-TR

Active

Samtec Inc.

CONN HEADER SMD 26POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TMM Series SMT Datasheet

TMM-113-05-G-D-SM-P-TR

Active

Samtec Inc.

CONN HEADER SMD 26POS 2MM

Deep-Dive with AI

DocumentsDatasheet TMM Series SMT Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMM-113-05-G-D-SM-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TMM-113 Series

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Shape	Style	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Insulation Material	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Number of Positions	Shrouding	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Height	Insulation Height	Connector Type	Contact Finish - Mating	Number of Rows	Features	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Overall Contact Length
Samtec Inc. TMM-113-01-G-S-RA	3 µin	0.076 µm	Male Pin	0.51 µm	20 µin	Solder	Square	Board to Board Cable	Through Hole Right Angle	0.12 in	3.05 mm	All	3.2 mm	0.126 "	3.2 A	Liquid Crystal Polymer (LCP)	Gold	0.079 in	2 mm	Push-Pull	13	Unshrouded	Phosphor Bronze	-55 °C	125 °C	Black	0.079 in	2 mm	Header	Gold	1
Samtec Inc. TMM-113-01-L-D-SM-A			Male Pin	0.25 çm	10 çin	Solder	Square	Board to Board Cable	Surface Mount			All	3.2 mm	0.126 "	3.2 A	Liquid Crystal Polymer (LCP)	Tin	0.079 in	2 mm	Push-Pull	26	Unshrouded	Phosphor Bronze	-55 °C	125 °C	Black	0.059 "	1.5 mm	Header	Gold	2	Board Guide	0.079 in	2 mm	UL94 V-0
Samtec Inc. TMM-113-06-T-S-SM			Male Pin			Solder	Square	Board to Board Cable	Surface Mount			All	4.27 mm	0.168 in	3.2 A	Liquid Crystal Polymer (LCP)	Tin	0.079 in	2 mm	Push-Pull	13	Unshrouded	Phosphor Bronze	-55 °C	105 ░C	Black	0.059 "	1.5 mm	Header		1				UL94 V-0
Samtec Inc. TMM-113-01-G-S-SM-005
Samtec Inc. TMM-113-03-S-S			Male Pin	0.76 Ám	30 Áin	Solder	Square	Board to Board Cable	Through Hole	0.106 in	2.69 mm	All	4 mm	0.157 in	3.2 A	Liquid Crystal Polymer (LCP)	Tin	0.079 in	2 mm	Push-Pull	13	Unshrouded	Phosphor Bronze	-55 °C	125 °C	Black	0.059 "	1.5 mm	Header	Gold	1					8.2 mm	0.323 in
Samtec Inc. TMM-113-05-G-D-SM-P-TR	3 µin	0.076 µm	Male Pin	0.51 µm	20 µin	Solder	Square	Board to Board Cable	Surface Mount			All	1.65 mm	0.065 in	3.2 A	Liquid Crystal Polymer (LCP)	Gold	0.079 in	2 mm	Push-Pull	26	Unshrouded	Phosphor Bronze	-55 °C	125 °C	Black	0.059 "	1.5 mm	Header	Gold	2	Pick and Place	0.079 in	2 mm	UL94 V-0
Samtec Inc. TMM-113-05-G-D	3 µin	0.076 µm	Male Pin	0.51 µm	20 µin	Solder	Square	Board to Board Cable	Through Hole			All	1.65 mm	0.065 in	3.2 A	Liquid Crystal Polymer (LCP)	Gold	0.079 in	2 mm	Push-Pull	26	Unshrouded	Phosphor Bronze	-55 °C	125 °C	Black	0.059 "	1.5 mm	Header	Gold	2		0.079 in	2 mm			5.43 mm	0.09 "	2.29 mm	0.214 in
Samtec Inc. TMM-113-01-L-D-SM			Male Pin	0.25 çm	10 çin	Solder	Square	Board to Board Cable	Surface Mount			All	3.2 mm	0.126 "	3.2 A	Liquid Crystal Polymer (LCP)	Tin	0.079 in	2 mm	Push-Pull	26	Unshrouded	Phosphor Bronze	-55 °C	125 °C	Black	0.059 "	1.5 mm	Header	Gold	2		0.079 in	2 mm	UL94 V-0
Samtec Inc. TMM-113-01-F-D-SM			Male Pin	0.076 µm	3 µin	Solder	Square	Board to Board Cable	Surface Mount			All	3.2 mm	0.126 "	3.2 A	Liquid Crystal Polymer (LCP)	Tin	0.079 in	2 mm	Push-Pull	26	Unshrouded	Phosphor Bronze	-55 °C	125 °C	Black	0.059 "	1.5 mm	Header	Gold	2		0.079 in	2 mm	UL94 V-0
Samtec Inc. TMM-113-01-L-D-SM-M			Male Pin	0.25 çm	10 çin	Solder	Square	Board to Board Cable	Surface Mount			All	3.2 mm	0.126 "	3.2 A	Liquid Crystal Polymer (LCP)	Tin	0.079 in	2 mm	Push-Pull	26	Unshrouded	Phosphor Bronze	-55 °C	125 °C	Black	0.059 "	1.5 mm	Header	Gold	2	Pick and Place	0.079 in	2 mm	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	275	$ 2.90

Description

General part information

TMM-113 Series

Connector Header Surface Mount 26 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

TMM Series SMT Datasheet

Datasheet
