Q-2003L0003108i

Active

Amphenol Custom Cable

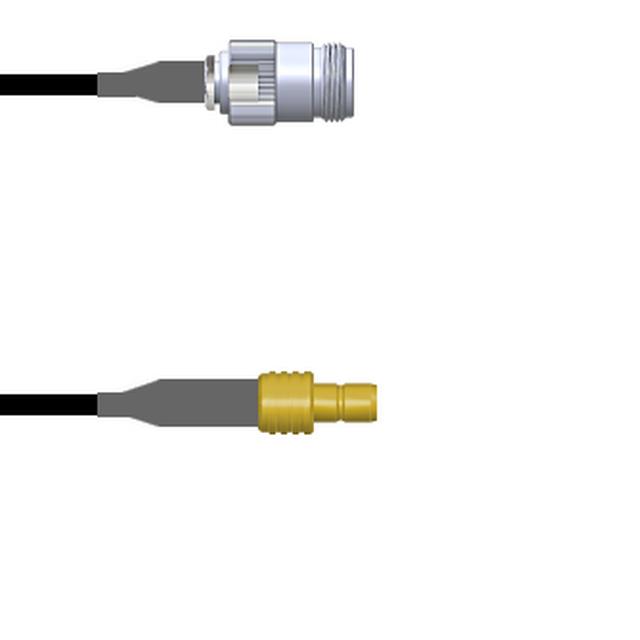

CBL ASSY SMB-NTYPE JACK-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2003L0003108i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2003L0003108i

1st Connector	SMB Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2003L0 Series

Part	2nd Connector	2nd Contact Gender	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector	Color	Length	Length	Length	2nd Connector Mounting Type	Cable Type	Overall Impedance	1st Contact Gender	Style	Features	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2003L0003001M	N-Type Jack	Female	4 GHz	Free Hanging (In-Line)	SMB Jack	Black	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	RG-174	50 Ohms	Male	SMB to N-Type	Shielded
Amphenol Custom Cable Q-2003L0003006i	N-Type Jack	Female	4 GHz	Free Hanging (In-Line)	SMB Jack	Black	152.4 mm		6 in	Free Hanging (In-Line)	RG-174	50 Ohms	Male	SMB to N-Type	Shielded
Amphenol Custom Cable Q-2003L0005018i	N-Type Jack	Female	4 GHz	Free Hanging (In-Line)	SMB Jack	Copper				Free Hanging (In-Line)	RG-316	50 Ohms	Male	SMB to N-Type	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2003L0003002M	N-Type Jack	Female	4 GHz	Free Hanging (In-Line)	SMB Jack	Black	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	RG-174	50 Ohms	Male	SMB to N-Type	Shielded
Amphenol Custom Cable Q-2003L0003108i	N-Type Jack	Female	4 GHz	Free Hanging (In-Line)	SMB Jack	Black	2.7 m	9 ft	108 in	Free Hanging (In-Line)	RG-174	50 Ohms	Male	SMB to N-Type	Shielded
Amphenol Custom Cable Q-2003L0005108i	N-Type Jack	Female	4 GHz	Free Hanging (In-Line)	SMB Jack	Copper	2.7 m	9 ft	108 in	Free Hanging (In-Line)	RG-316	50 Ohms	Male	SMB to N-Type	Shielded
Amphenol Custom Cable Q-2003L0005060i	N-Type Jack	Female	4 GHz	Free Hanging (In-Line)	SMB Jack	Copper	1.5 m	5 ft	5 '	Free Hanging (In-Line)	RG-316	50 Ohms	Male	SMB to N-Type	Shielded
Amphenol Custom Cable Q-2003L0005003M	N-Type Jack	Female	4 GHz	Free Hanging (In-Line)	SMB Jack	Copper	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	RG-316	50 Ohms	Male	SMB to N-Type	Shielded
Amphenol Custom Cable Q-2003L0003036i	N-Type Jack	Female	4 GHz	Free Hanging (In-Line)	SMB Jack	Black	91.44 cm		36 in	Free Hanging (In-Line)	RG-174	50 Ohms	Male	SMB to N-Type	Shielded
Amphenol Custom Cable Q-2003L0005.25M	N-Type Jack	Female	4 GHz	Free Hanging (In-Line)	SMB Jack	Copper				Free Hanging (In-Line)	RG-316	50 Ohms	Male	SMB to N-Type	Shielded		250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 65.45
		25	$ 64.17
		50	$ 62.89
		100	$ 61.61
		250	$ 60.33

Description

General part information

Q-2003L0 Series

Cable Assembly Coaxial SMB to N-Type RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
