2355827-1
ActiveTE Connectivity AMP Connectors

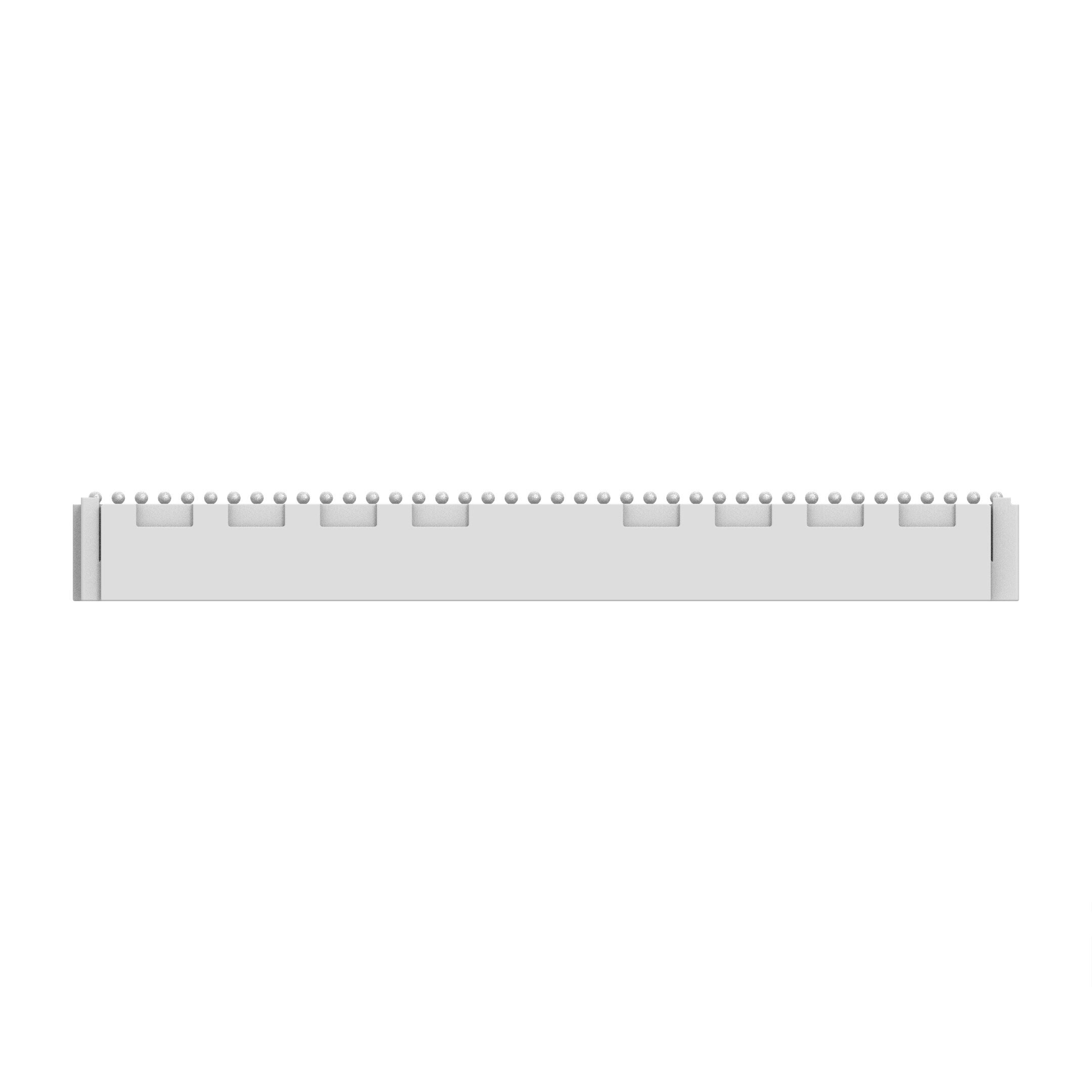

CONN BOX CONNECTOR F 320 POS 1.27MM SOLDER ST SMD T/R
2355827-1
ActiveTE Connectivity AMP Connectors
CONN BOX CONNECTOR F 320 POS 1.27MM SOLDER ST SMD T/R
Description
General part information
2355827 Series
PCB Mount Receptacle, Vertical, Board-to-Board, 320 Position, 1.27 mm [.05 in] Centerline, Gold (Au), Surface Mount - Solder Ball, Mezalok HSLF
Technical Specifications
Parameters and characteristics for this part
| Specification | 2355827-1 |
|---|---|
| Connector Type | Array, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Features | Pick and Place |
| Height Above Board | 0.236 in |
| Mated Stacking Height | 10 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 320 |
| Number of Rows | 8 |
| Pitch | 0.05 in |
