Specification	SEAF-40-06.5-S-10-2-A

Connector Type	High Density Array, FEMALE
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide
Height Above Board	0.258 in
Mated Stacking Height Options	19.5mm, 15.5mm, 10mm, 13.5mm, 17.5mm, 13mm, 9.5mm, 8.5mm
Mounting Type	Surface Mount
Number of Positions	400
Number of Rows	10
Pitch	0.05 in

SEAF-40 Series

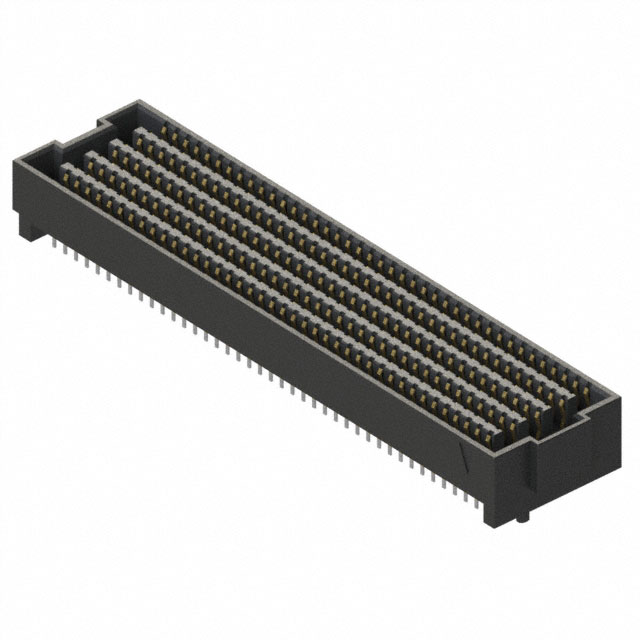

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Part	Number of Positions	Mounting Type	Pitch	Features	Contact Finish Thickness	Contact Finish	Connector Type	Height Above Board	Number of Rows	Mated Stacking Height Options
Samtec Inc. SEAF-40-01-S-08-2-RA-GP-K-TR	320	Right Angle Surface Mount	0.05 in	Board Guide Mating Flange Pick and Place	30 µin	Gold	FEMALE High Density Array	0.511 in	8
Samtec Inc. SEAF-40-01-S-08-2-RA-TR	320	Right Angle Surface Mount	0.05 in	Board Guide	30 µin	Gold	FEMALE High Density Array	0.511 in	8
Samtec Inc. SEAF-40-06.5-L-14-2-A-K-TR	560	Surface Mount	0.05 in	Board Guide Pick and Place	10 Ąin	Gold	FEMALE High Density Array	0.258 in	14	10mm 13.5mm 13mm 15.5mm 17.5mm 19.5mm 8.5mm 9.5mm
Samtec Inc. SEAF-40-05.0-S-05-2-A-K-TR	200	Surface Mount	0.05 in	Board Guide Pick and Place	30 µin	Gold	FEMALE High Density Array	0.199 in	5	11.5mm 12mm 14mm 16mm 18mm 7mm 8.5mm 8mm
Samtec Inc. SEAF-40-01-L-04-2-RA-GP-K-TR	160	Right Angle Surface Mount	0.05 in	Board Guide Mating Flange Pick and Place	10 Ąin	Gold	FEMALE High Density Array	0.311 in	4
Samtec Inc. SEAF-40-05.0-L-05-2-A-K-TR	200	Surface Mount	0.05 in	Board Guide Pick and Place	10 Ąin	Gold	FEMALE High Density Array	0.199 in	5	11.5mm 12mm 14mm 16mm 18mm 7mm 8.5mm 8mm
Samtec Inc. SEAF-40-06.0-L-06-1-A-K-TR	240	Surface Mount	0.05 in	Board Guide Pick and Place	10 Ąin	Gold	FEMALE High Density Array	0.238 in	6	12.5mm 13mm 15mm 17mm 19mm 8mm 9.5mm 9mm
Samtec Inc. SEAF-40-01-S-04-2-RA-GP-K-TR	160	Right Angle Surface Mount	0.05 in	Board Guide Mating Flange Pick and Place	30 µin	Gold	FEMALE High Density Array	0.311 in	4
Samtec Inc. SEAF-40-01-S-06-1-RA-TR	240	Right Angle Surface Mount	0.05 in	Board Guide	30 µin	Gold	FEMALE High Density Array	0.411 in	6
Samtec Inc. SEAF-40-01-S-06-2-RA-GP-TR	240	Right Angle Surface Mount	0.05 in	Board Guide Mating Flange	30 µin	Gold	FEMALE High Density Array	0.411 in	6
