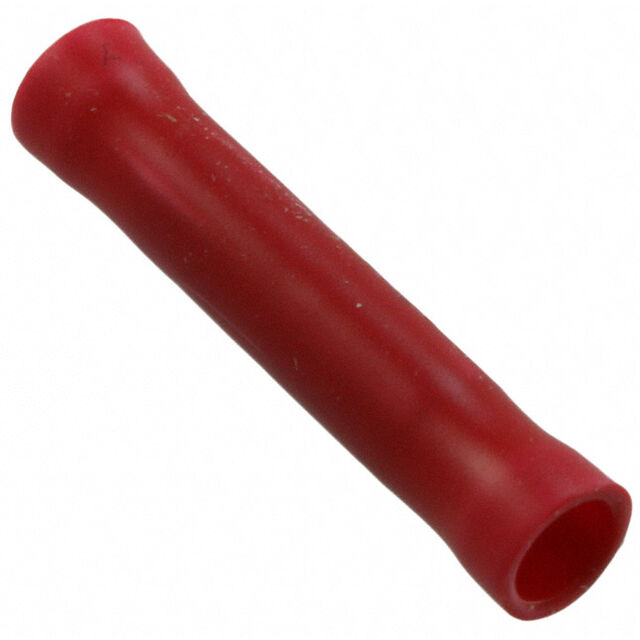

Specification	8-34070-1

Color	Red
Features	Serrated Mating Area
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Inline, Individual Openings, Butt Splice
Termination	Crimp
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

34070 Series

Part	Features	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Wire Entries	Terminal Type	Termination	Insulation
TE Connectivity AMP Connectors 8-34070-1	Serrated Mating Area	Red	16 AWG	22 AWG	2	Butt Splice Individual Openings Inline	Crimp	Fully Insulated
TE Connectivity AMP Connectors 1-34070-1	Serrated Mating Area	Red	16 AWG	22 AWG	2	Butt Splice Individual Openings Inline	Crimp	Fully Insulated
