Cable Assemblies
A9AAT-2204E
ActiveTE Connectivity Raychem Cable Protection
FLEX CABLE - AFH22T/AE22/AFH22T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A9AAT-2204E |
|---|---|
| Contact Termination | Solder Tab to Solder Tab |
| Length [x] | 101.6 mm |
| Length [x] | 4 " |
| Number of Positions | 22 positions |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.68 | |
| 10 | $ 6.37 | |||
| 25 | $ 5.91 | |||
| 50 | $ 5.58 | |||
| 100 | $ 5.28 | |||
| 250 | $ 4.90 | |||
| 500 | $ 4.63 | |||
| 1000 | $ 4.38 | |||
Description
General part information
A9AAT Series

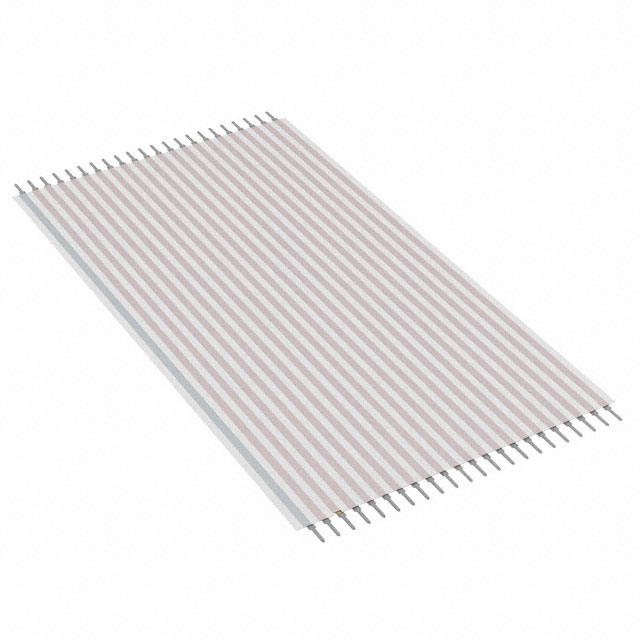

22 Position Flat Flex Cable Assembly Solder Tab to Solder Tab 4.00" (101.60mm)
