Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5441207 | BCP Series |
|---|---|---|
| Color | Green | Green, Black |
| Contact Mating Finish | Tin | Tin |
| Current - IEC | 8 A | 8 - 12 A |
| Current - UL | 8 A | 8 A |
| Features | - | Mating Flange |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | 0.437 in | 0.437 - 0.591 in |
| Insulation Height | 11.1 mm | 11.1 - 15 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 - 20 |
| Pitch [x] | 3.5 mm | 3.5 - 5.08 mm |
| Pitch [x] | 0.138 in | 0.138 - 0.2 in |
| Positions Per Level | 2 | 2 - 20 |
| Screw Size | M2 | M2, M3 |
| Termination Style | Screw | Screw |
| Torque - Screw [Max] | 2.2 Lb-In | 2.2 - 4.4 Lb-In |
| Torque - Screw [Max] | 0.25 Nm | 0.25 - 0.5 Nm |
| Torque - Screw [Min] | 0.22 Nm | 0.2 - 0.4 Nm |
| Torque - Screw [Min] | 1.9 Lb-In | 1.7 - 3.5 Lb-In |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - IEC | 320 V | 160 - 630 V |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG | 12 - 14 AWG |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² | 1.5 - 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² | 0.2 mm² |
| Wire Strip Length | 7 mm | 7 mm |
BCP Series

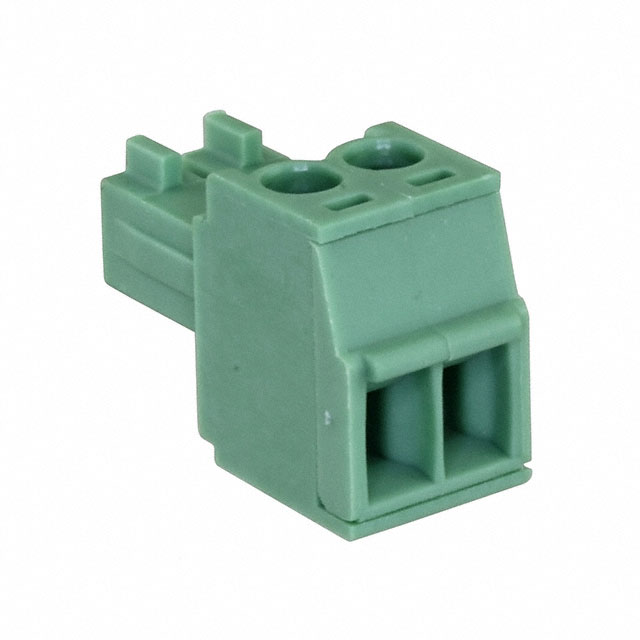

Pluggable Terminal Blocks BCP-350- 2 GN
| Part | Color | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Contact Mating Finish | Pitch [x] | Pitch [x] | Voltage - IEC | Voltage - UL | Insulation Height | Insulation Height | Number of Positions | Number of Levels | Current - IEC | Type | Termination Style | Mounting Type | Current - UL | Screw Size | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Material Flammability Rating | Wire Strip Length | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Housing Material | Positions Per Level | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 5441207 | Green | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | Tin | 3.5 mm | 0.138 in | 320 V | 300 V | 0.437 in | 11.1 mm | 2 | 1 | 8 A | Plug, Female Sockets | Screw | Free Hanging (In-Line) | 8 A | M2 | 0.2 mm² | 1.5 mm² | UL94 V-0 | 7 mm | 14 AWG | 30 AWG | Polyamide (PA), Nylon | 2 | |
Phoenix Contact 5452531 | Black | 2.2 Lb-In | 0.25 Nm | 0.2 Nm | 1.7 Lb-In | Tin | 3.81 mm | 0.15 in | 160 V | 300 V | 0.437 in | 11.1 mm | 1 | 8 A | Plug, Female Sockets | Screw | Free Hanging (In-Line) | 8 A | M2 | 7 mm | 14 AWG | 30 AWG | 3 | Mating Flange | |||||
Phoenix Contact 5452194 | Black | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | Tin | 3.5 mm | 0.138 in | 320 V | 300 V | 0.437 in | 11.1 mm | 20 | 1 | 8 A | Plug, Female Sockets | Screw | Free Hanging (In-Line) | 8 A | M2 | 0.2 mm² | 1.5 mm² | UL94 V-0 | 7 mm | 14 AWG | 30 AWG | Polyamide (PA), Nylon | 20 | |
Phoenix Contact 5441731 | Black | 4.4 Lb-In | 0.5 Nm | 0.4 Nm | 3.5 Lb-In | Tin | 5 mm | 0.197 in | 630 V | 300 V | 0.591 in | 15 mm | 1 | 12 A | Plug, Female Sockets | Screw | Free Hanging (In-Line) | M3 | 0.2 mm² | 2.5 mm² | UL94 V-0 | 7 mm | 12 AWG | 30 AWG | Polyamide (PA), Nylon | 3 | |||
Phoenix Contact 5448637 | Green | 4.4 Lb-In | 0.5 Nm | 0.4 Nm | 3.5 Lb-In | Tin | 5.08 mm | 0.2 in | 630 V | 300 V | 0.591 in | 15 mm | 4 | 1 | 12 A | Plug, Female Sockets | Screw | Free Hanging (In-Line) | 0.2 mm² | 2.5 mm² | UL94 V-0 | 7 mm | 12 AWG | 30 AWG | Polyamide (PA), Nylon | 4 |
