5452194

Active

Phoenix Contact

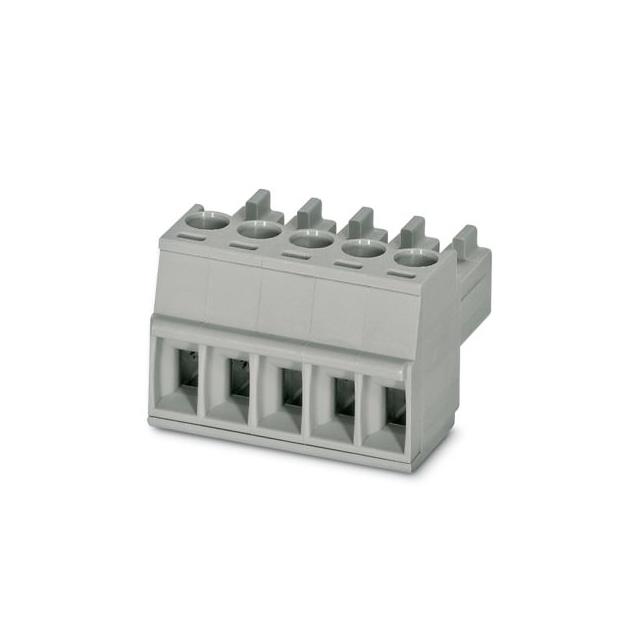

PLUGGABLE TERMINAL BLOCKS BCP-350-20 BK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

5452194

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS BCP-350-20 BK

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.36
Sager	N/A	1	$ 27.92
		100	$ 16.76
		500	$ 15.23

Description

General part information

BCP Series

Pluggable Terminal Blocks BCP-350- 2 GN

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5452194	BCP Series

Color	Black	Green, Black
Contact Mating Finish	Tin	Tin
Current - IEC	8 A	8 - 12 A
Current - UL	8 A	8 A
Features	-	Mating Flange
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.437 in	0.437 - 0.591 in
Insulation Height	11.1 mm	11.1 - 15 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	20	2 - 20
Pitch [x]	3.5 mm	3.5 - 5.08 mm
Pitch [x]	0.138 in	0.138 - 0.2 in
Positions Per Level	20	2 - 20
Screw Size	M2	M2, M3
Termination Style	Screw	Screw
Torque - Screw [Max]	2.2 Lb-In	2.2 - 4.4 Lb-In
Torque - Screw [Max]	0.25 Nm	0.25 - 0.5 Nm
Torque - Screw [Min]	0.22 Nm	0.2 - 0.4 Nm
Torque - Screw [Min]	1.9 Lb-In	1.7 - 3.5 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	320 V	160 - 630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG	12 - 14 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²	1.5 - 2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	7 mm	7 mm

BCP Series

Pluggable Terminal Blocks BCP-350- 2 GN

Part	Color	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Contact Mating Finish	Pitch [x]	Pitch [x]	Voltage - IEC	Voltage - UL	Insulation Height	Insulation Height	Number of Positions	Number of Levels	Current - IEC	Type	Termination Style	Mounting Type	Current - UL	Screw Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material Flammability Rating	Wire Strip Length	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Housing Material	Positions Per Level	Features
Phoenix Contact 5441207	Green	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Tin	3.5 mm	0.138 in	320 V	300 V	0.437 in	11.1 mm	2	1	8 A	Plug, Female Sockets	Screw	Free Hanging (In-Line)	8 A	M2	0.2 mm²	1.5 mm²	UL94 V-0	7 mm	14 AWG	30 AWG	Polyamide (PA), Nylon	2
Phoenix Contact 5452531	Black	2.2 Lb-In	0.25 Nm	0.2 Nm	1.7 Lb-In	Tin	3.81 mm	0.15 in	160 V	300 V	0.437 in	11.1 mm		1	8 A	Plug, Female Sockets	Screw	Free Hanging (In-Line)	8 A	M2				7 mm	14 AWG	30 AWG		3	Mating Flange
Phoenix Contact 5452194	Black	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Tin	3.5 mm	0.138 in	320 V	300 V	0.437 in	11.1 mm	20	1	8 A	Plug, Female Sockets	Screw	Free Hanging (In-Line)	8 A	M2	0.2 mm²	1.5 mm²	UL94 V-0	7 mm	14 AWG	30 AWG	Polyamide (PA), Nylon	20
Phoenix Contact 5441731	Black	4.4 Lb-In	0.5 Nm	0.4 Nm	3.5 Lb-In	Tin	5 mm	0.197 in	630 V	300 V	0.591 in	15 mm		1	12 A	Plug, Female Sockets	Screw	Free Hanging (In-Line)		M3	0.2 mm²	2.5 mm²	UL94 V-0	7 mm	12 AWG	30 AWG	Polyamide (PA), Nylon	3
Phoenix Contact 5448637	Green	4.4 Lb-In	0.5 Nm	0.4 Nm	3.5 Lb-In	Tin	5.08 mm	0.2 in	630 V	300 V	0.591 in	15 mm	4	1	12 A	Plug, Female Sockets	Screw	Free Hanging (In-Line)			0.2 mm²	2.5 mm²	UL94 V-0	7 mm	12 AWG	30 AWG	Polyamide (PA), Nylon	4
