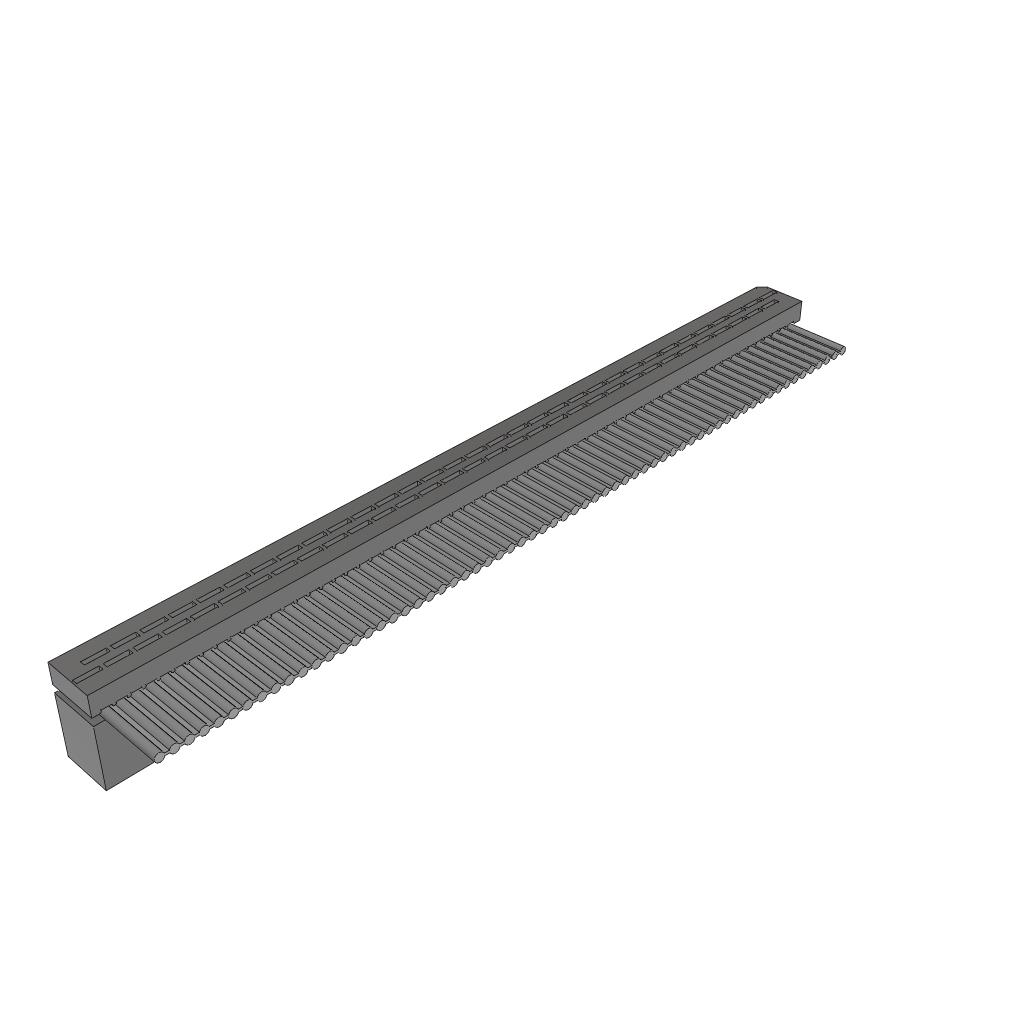

IDSD-32-S-36.00-T-G

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Pitch - Connector	Pitch - Connector	Contact Finish	Pitch - Cable	Pitch - Cable	Length	Length	Length	Connector Type	Number of Rows	Shielding	Cable Termination	Length [x]	Length [x]	Length [x]
Samtec Inc. IDSD-32-D-09.00-G	64	0.1 in	2.54 mm	Gold	0.05 "	1.27 mm	228.6 mm	9 in	0.75 ft	Socket to Socket	2	Unshielded	IDC
Samtec Inc. IDSD-32-D-02.00-G-R	64	0.1 in	2.54 mm	Gold	0.05 "	1.27 mm	50.8 mm	2 "	0.167 '	Socket to Socket Reversed	2	Unshielded	IDC
Samtec Inc. IDSD-32-S-36.00-T-G	64	0.1 in	2.54 mm	Tin	0.05 "	1.27 mm				Socket to Cable	2	Unshielded	IDC	3 ft	914.4 mm
Samtec Inc. IDSD-32-D-05.00-G-D02	64	0.1 in	2.54 mm	Gold	0.05 "	1.27 mm				Socket to Socket	2	Unshielded	IDC	0.417 '	127 mm	5 "
Samtec Inc. IDSD-32-D-04.00-G-B24	64	0.1 in	2.54 mm	Gold	0.05 "	1.27 mm				Socket to Socket	2	Unshielded	IDC	0.333 ft	101.6 mm	4 "
Samtec Inc. IDSD-32-D-07.00-G-R	64	0.1 in	2.54 mm	Gold	0.05 "	1.27 mm	177.8 mm	7 in	0.583 ft	Socket to Socket Reversed	2	Unshielded	IDC
Samtec Inc. IDSD-32-D-16.00-G	64	0.1 in	2.54 mm	Gold	0.05 "	1.27 mm				Socket to Socket	2	Unshielded	IDC	1.33 ft	406.4 mm
Samtec Inc. IDSD-32-S-20.00-G	64	0.1 in	2.54 mm	Gold	0.05 "	1.27 mm	508 mm		1.67 ft	Socket to Cable	2	Unshielded	IDC
Samtec Inc. IDSD-32-D-05.00-G-D02-M	64	0.1 in	2.54 mm	Gold	0.05 "	1.27 mm				Socket to Socket	2	Unshielded	IDC	0.417 '	127 mm	5 "
Samtec Inc. IDSD-32-D-04.25-P19-G	64	0.1 in	2.54 mm	Gold	0.05 "	1.27 mm				Socket to Socket	2	Unshielded	IDC	0.354 ft	107.95 mm	4.25 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.05

General part information

64 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
